Air Cleaner Housing: Service and Repair

Air Cleaner

Removal
1. Remove the air cleaner element.

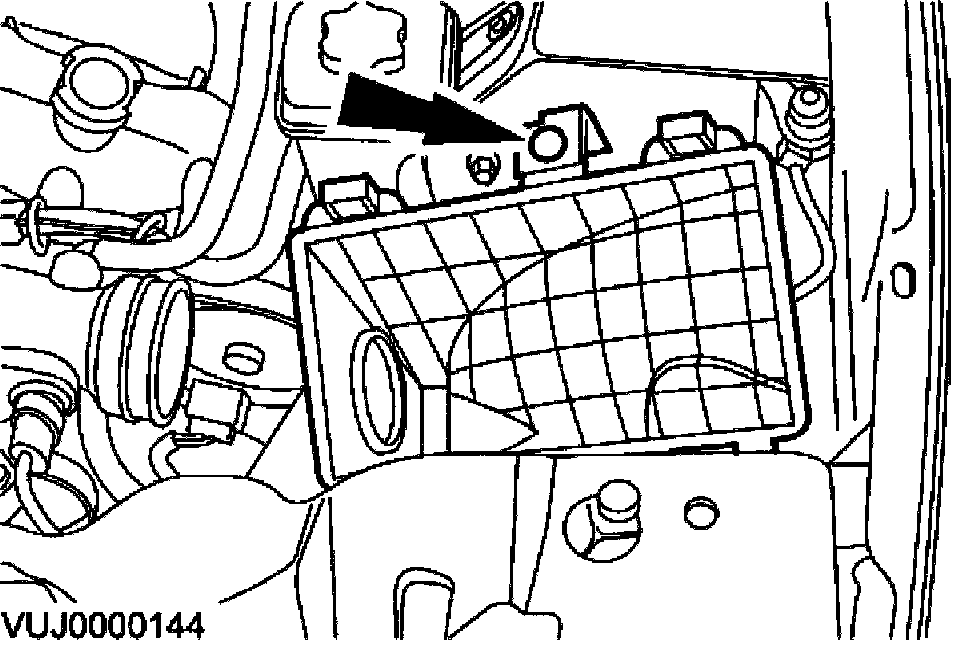

2. Remove the air cleaner.

Installation
1. NOTE: When installing the air cleaner, make sure that the locating pegs fit securely in the grommet located in the retaining bracket.

To install, reverse the removal procedure.
