Electrical Diagrams
E� :

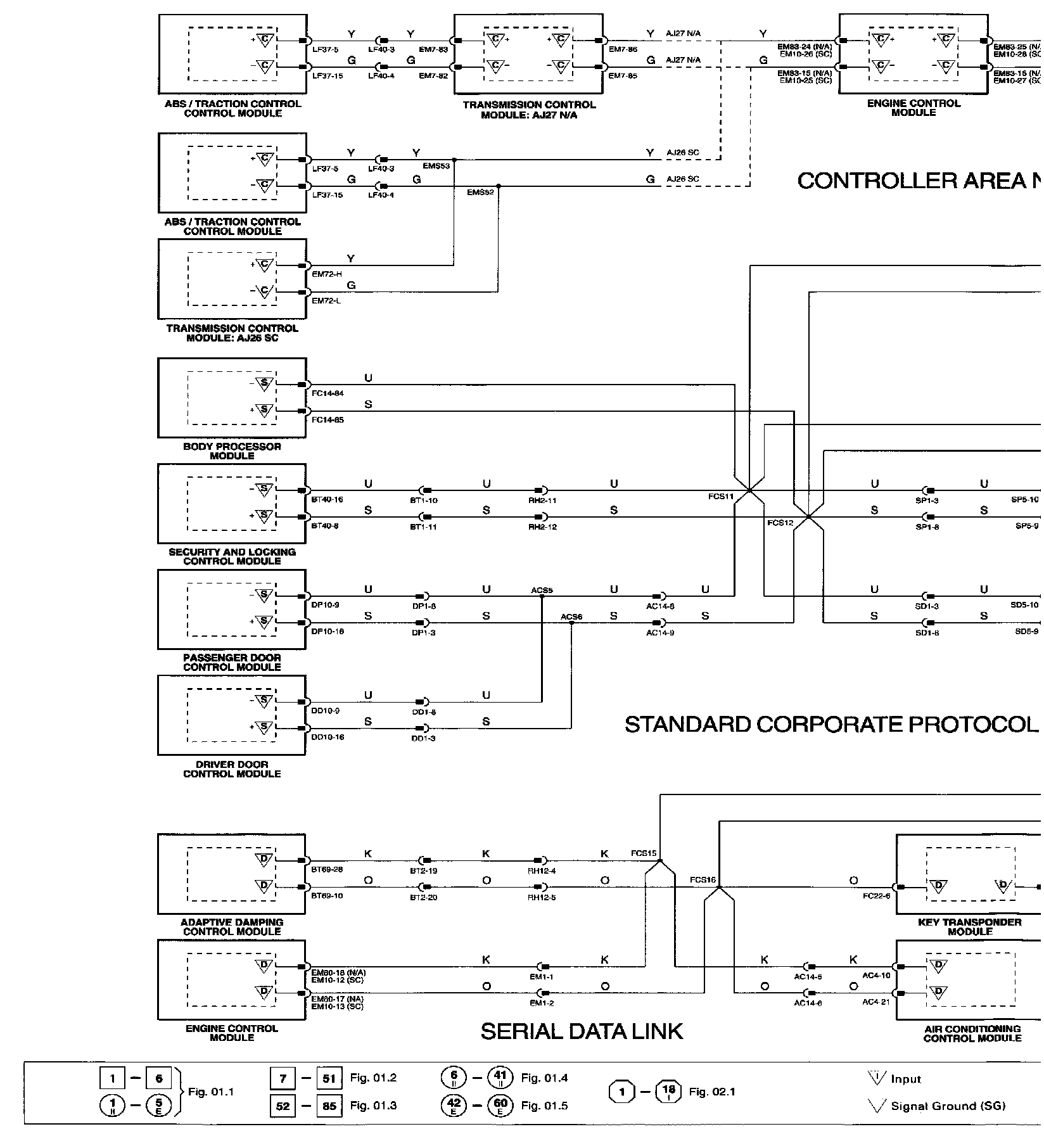

Wiring Diagram
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

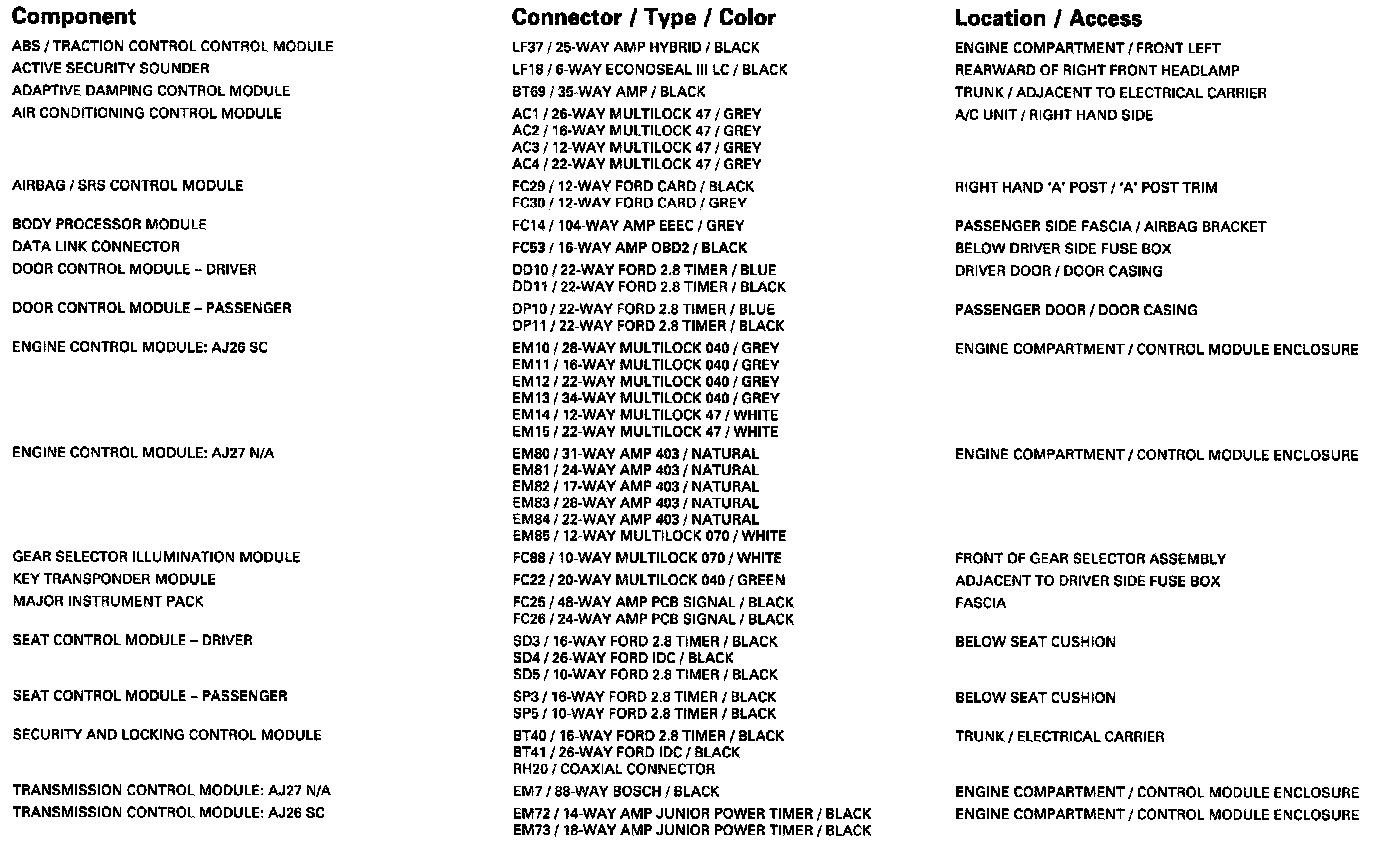

Component Information

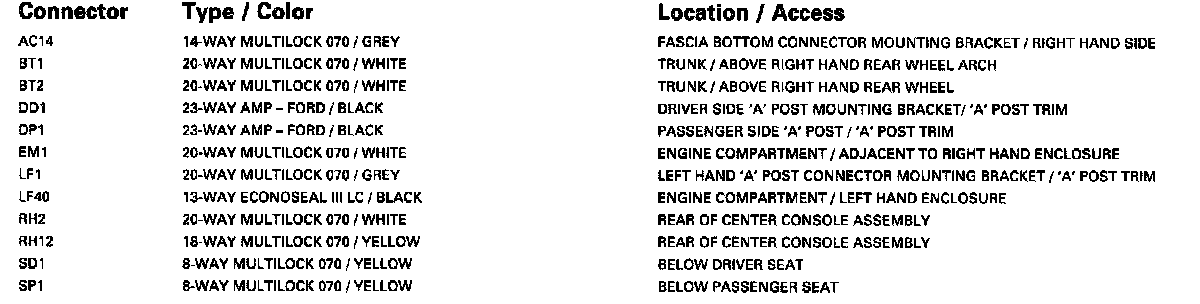

Harness to Harness Connector Information
Ground Information
