Fascia Center Vent Assembly

Fascia Center Vent Assembly

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Refer to 'Battery, Battery Cable.' Negative

2. Using a thin plastic lever, carefully remove fascia center veneer panel from fascia. Fascia Center Vent Veneer Panel
3. Remove glove box. Glove Compartment

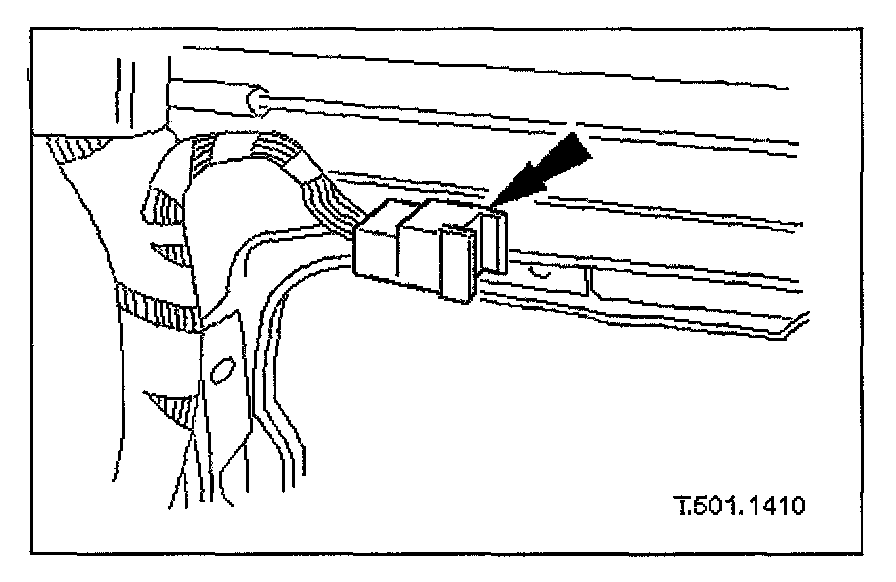

4. Accessing through glove box aperture, disconnect fascia center vent harness multiplug.

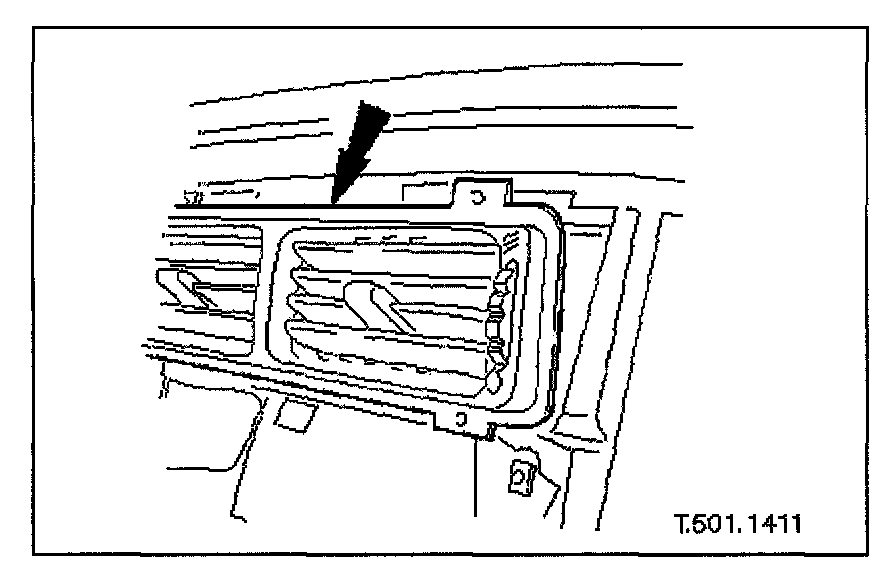

5. Exercising care to avoid damaging surfaces, use a thin plastic lever to release center vent dowels from fascia.
6. Positioning vent for access, move vent lead and multiplug clear of fascia harness and remove vent from fascia.

Installation
1. Position center vent at fascia and route harness multiplug to fascia location.
2. Finally position vent and fully seat dowels in fascia.
3. Accessing through glovebox aperture, connect center vent multiplug to fascia harness.
4. Fit and fully seat center vent veneer panel. Fascia Center Vent Veneer Panel
5. Fit glovebox. Glove Compartment
6. Connect ground cable to battery terminal and fit battery cover. Refer to 'Battery, Service and Repair, Battery Reconnection Procedure.' Service and Repair
