Automatic Transmission Schematics
Automatic Transmission Schematics

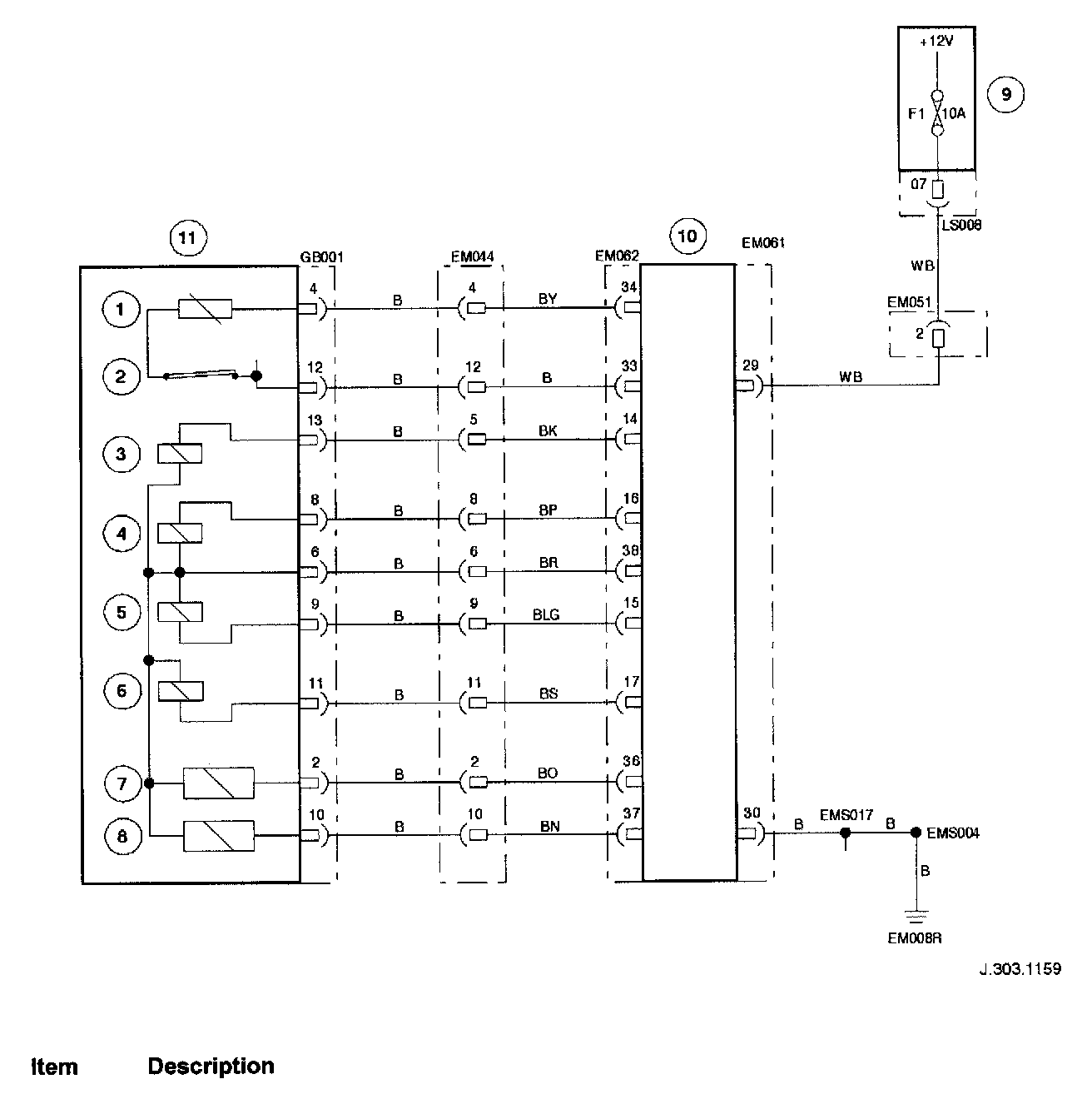

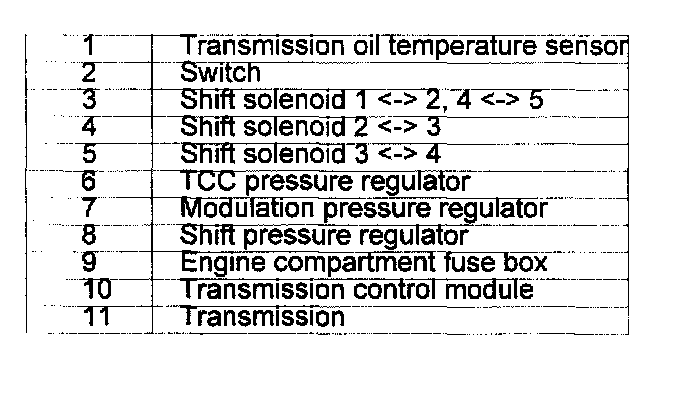

Transmission Pressure Regulators and Shift Solenoids Circuit Diagram

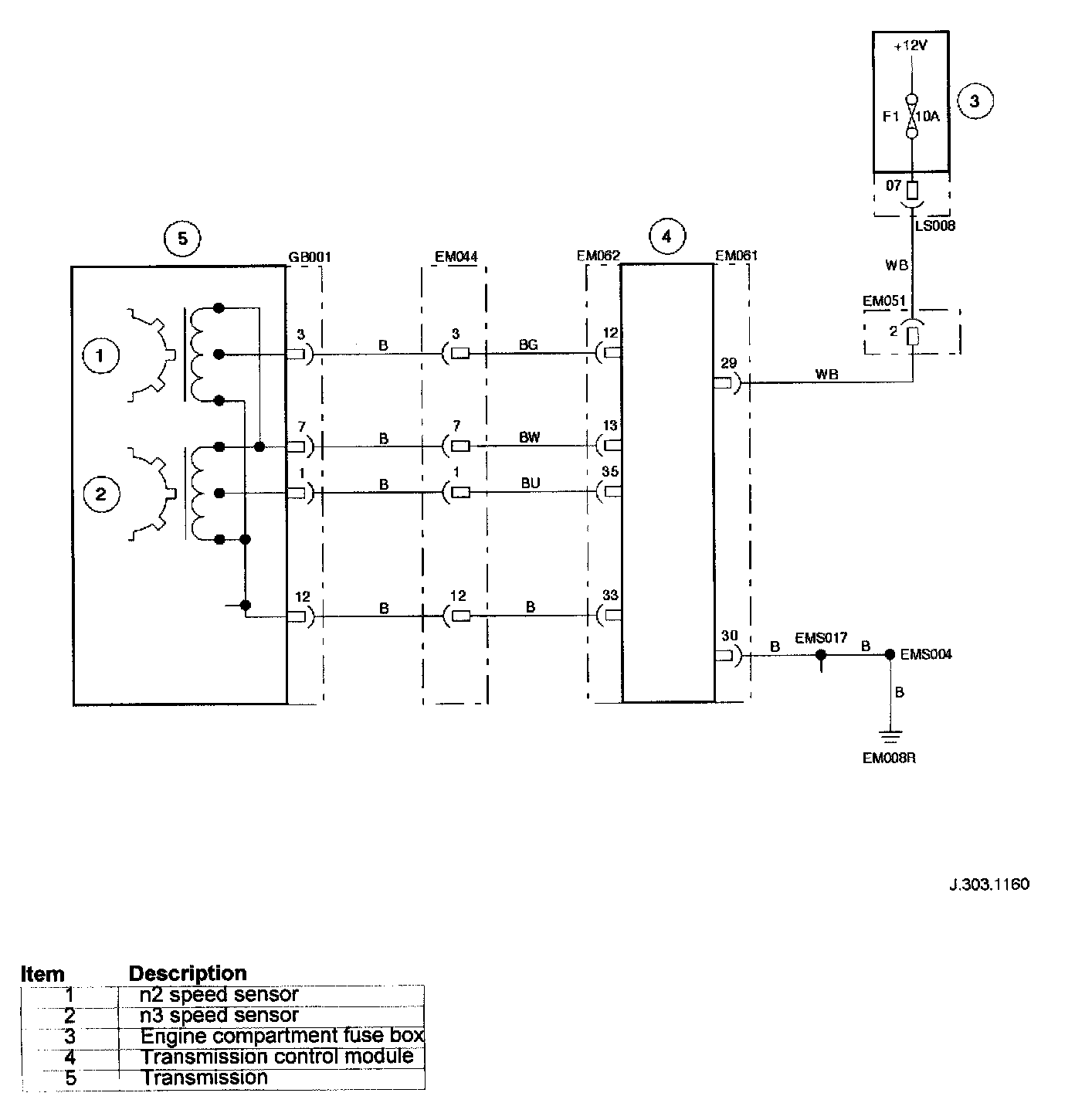

Speed Sensor/
TCM
Circuit Diagram
