Variable Valve Timing Solenoid
>>
Diagrams
>>

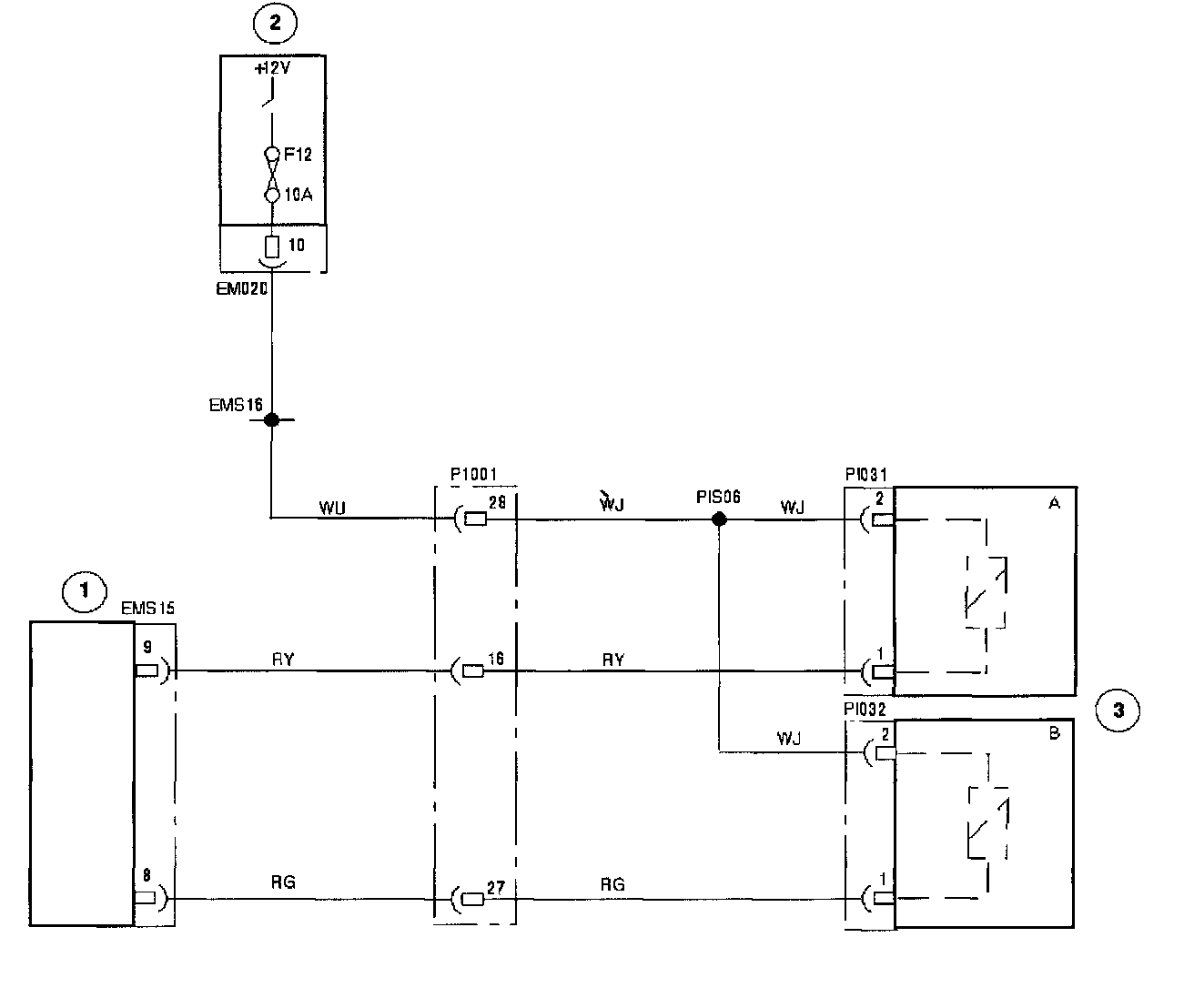

Electrical Diagrams
Electrical Diagrams

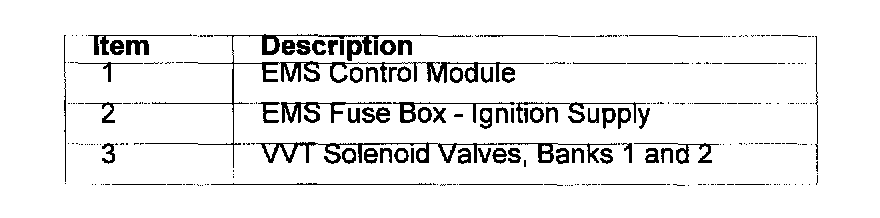

Part 1 Of 2:
Part 1 Of 2:
