Evaporative Emission Control Canister: Service and Repair

Removal
1. Disconnect battery ground cable. Refer to 'Battery, Battery Cable.' Negative


WARNING:
BEFORE PROCEEDING, IT IS ESSENTIAL THAT ALL 'SERVICE PRECAUTIONS' ARE READ AND UNDERSTOOD.

2. Raise vehicle on four post ramp.







3. NOTE: Discard O-ring seals from adapter elbows.

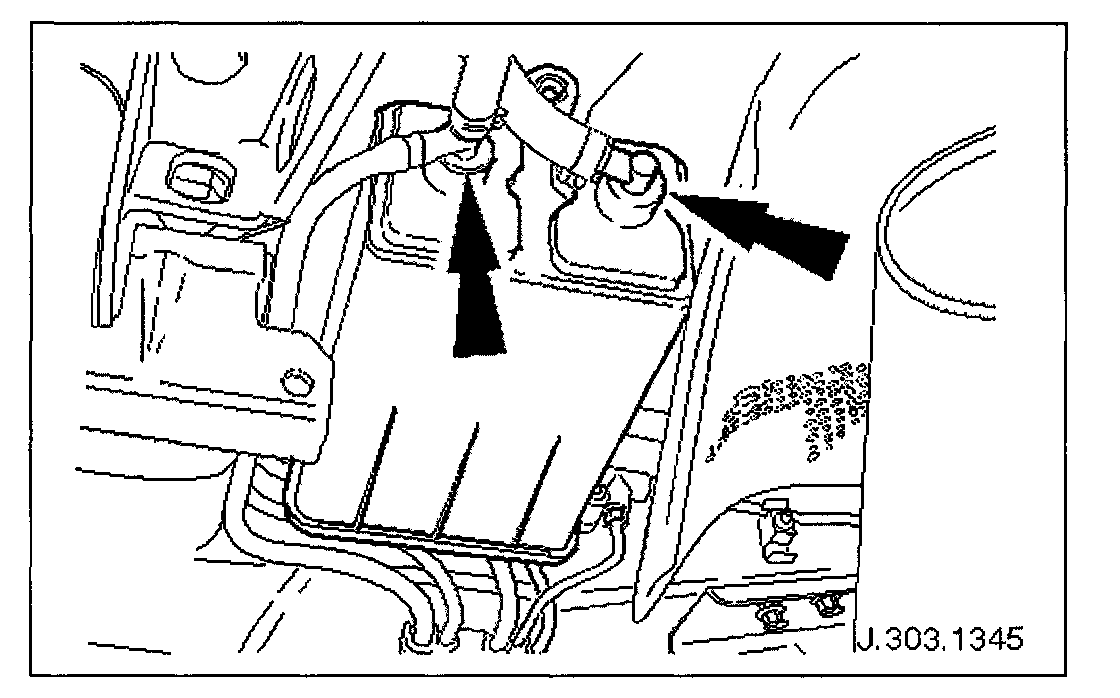

Disconnect inlet and outlet pipe adapter elbow.







4. Remove EVAP canister assembly from body.

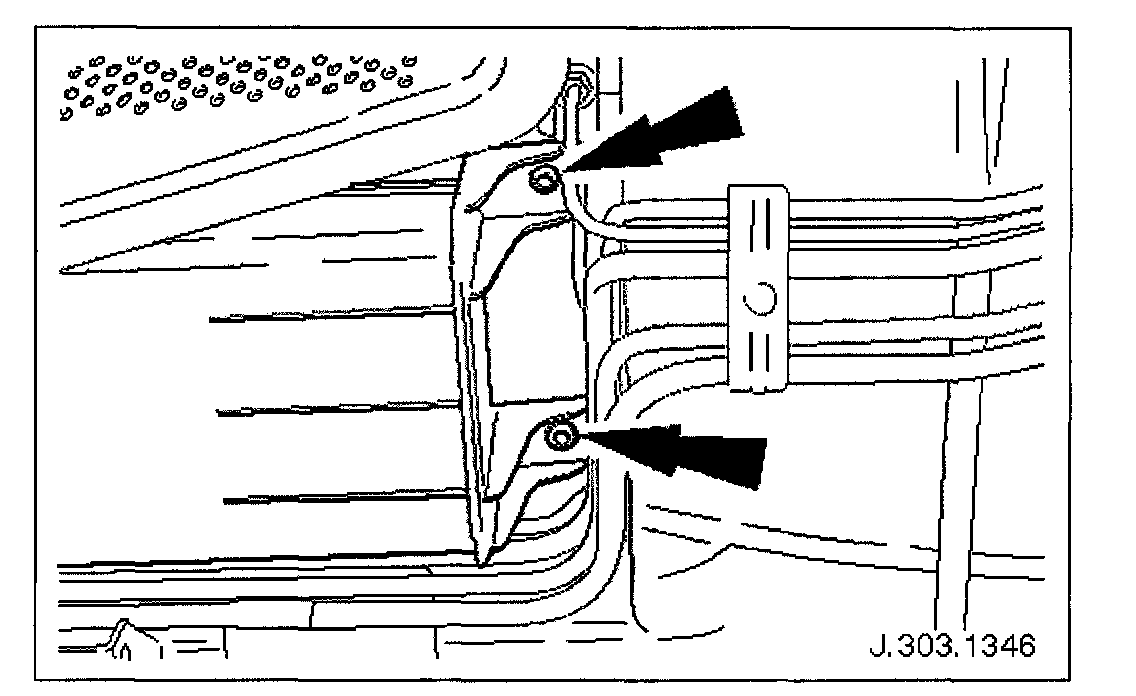

Remove front mounting bolts.

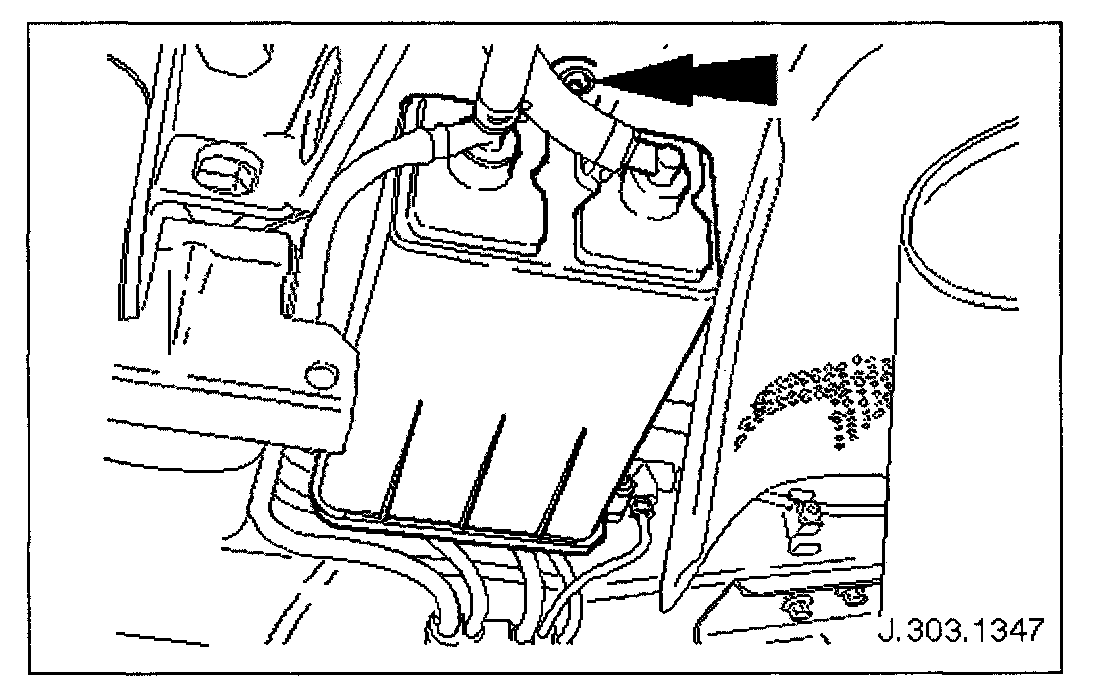

5. Remove rear mounting bolt.

Remove EVAP canister.

Installation


1. NOTE: Install new O-ring seals to adapter elbows and apply suitable lubrication.


Installation is the reverse of the removal procedure.







2. Tighten to specification.

9-12 Nm.







3. Tighten to specification.

9-12 Nm.
