Jaguar
>>
1998
>>
XJR (X308) V8-4.0L SC (AJ26)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

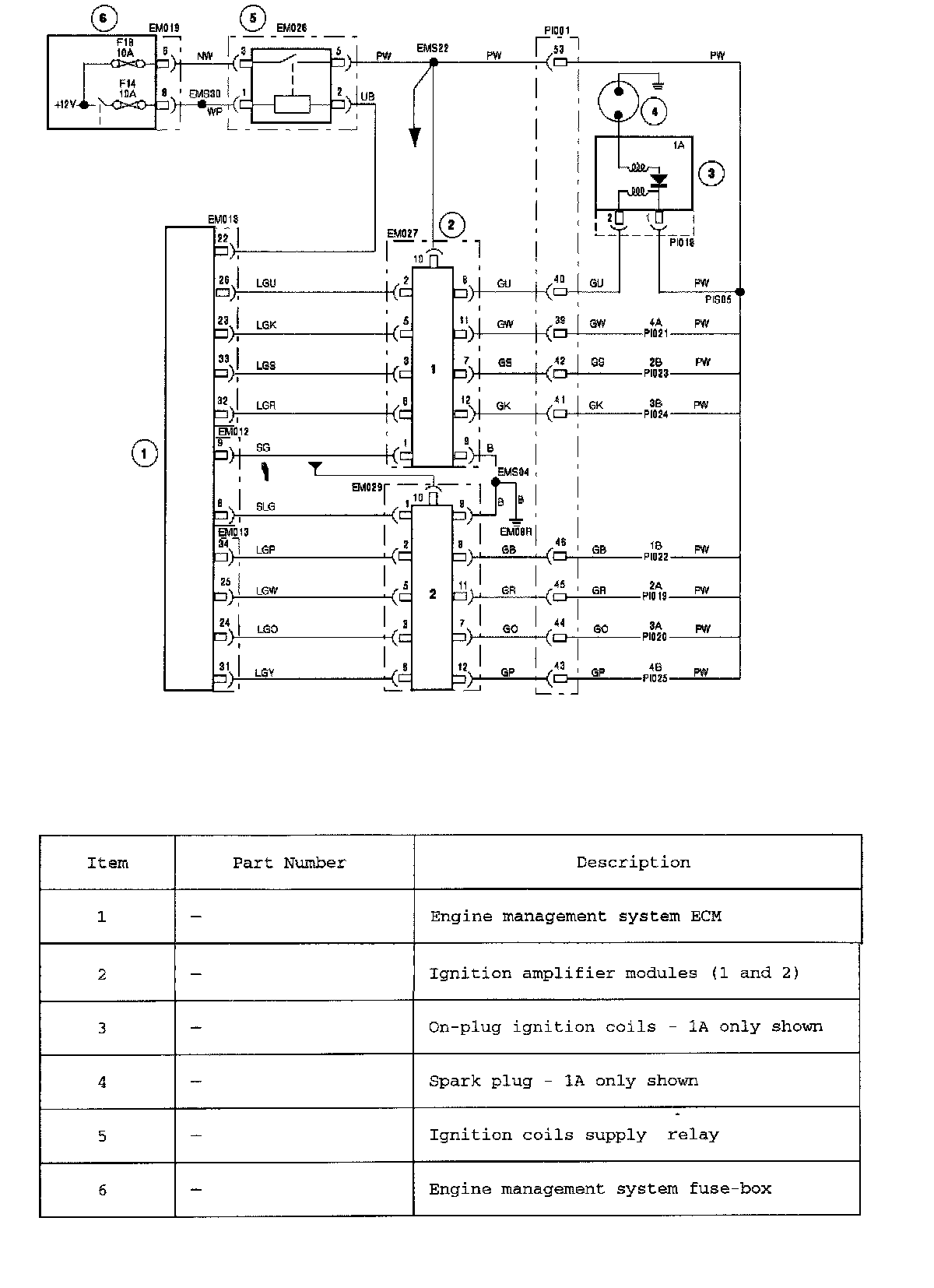

Circuit Diagram,
Ignition System
