F2: Check Sensor Continuity

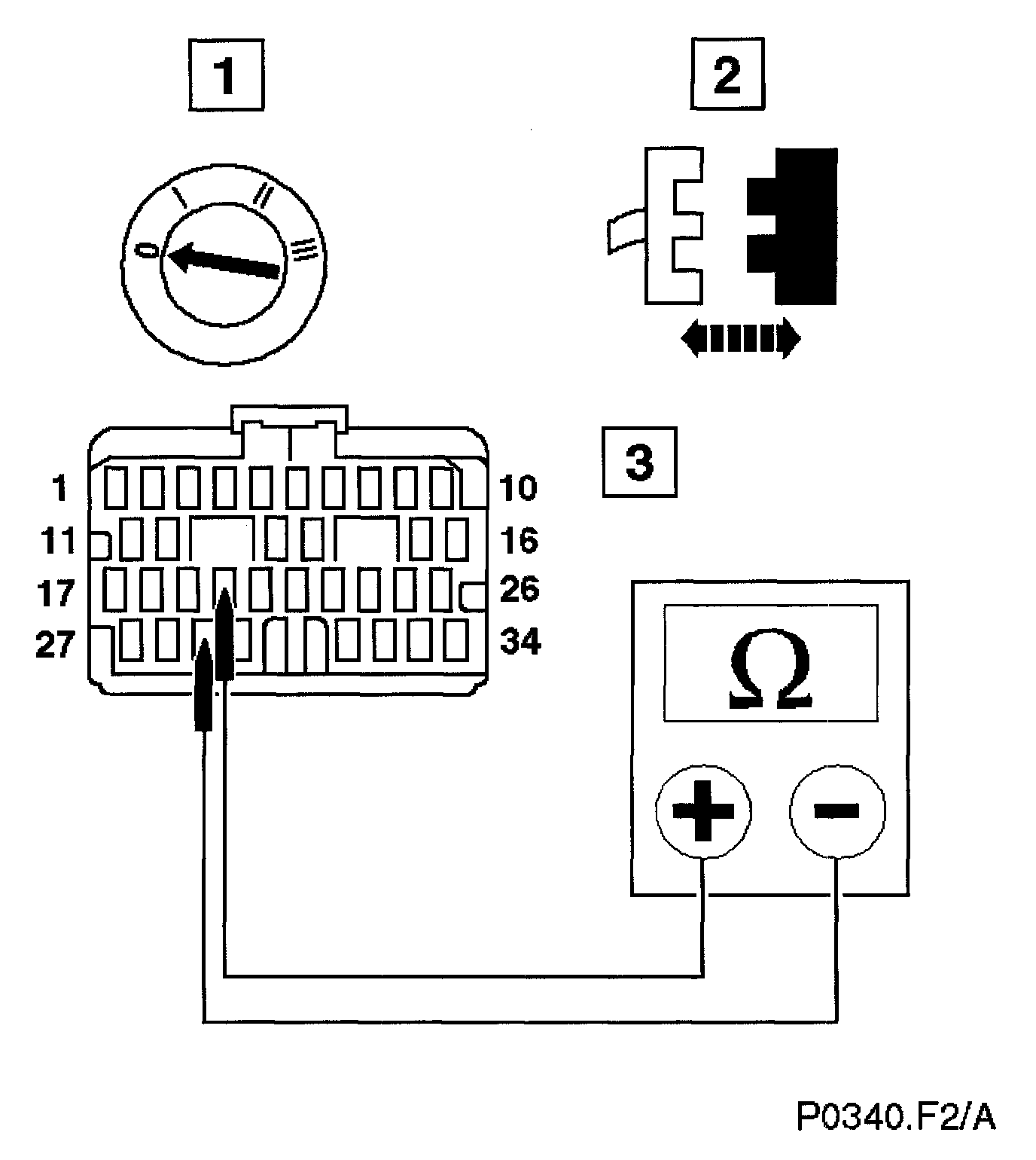

With EM013 disconnected measure the resistance between EM013/020 and EM013/029

- Is the resistance between 1850 and 2500 ohms?
Yes
GO to F8 F8: Check Mechanical Condition
No
GO to F3 F3: Check Harness Ground Continuity
