Electrical Diagrams
NOTE
: For complete Engine Management wiring diagrams, see
Powertrain Management
/ Diagrams / Electrical.
Electrical Diagrams

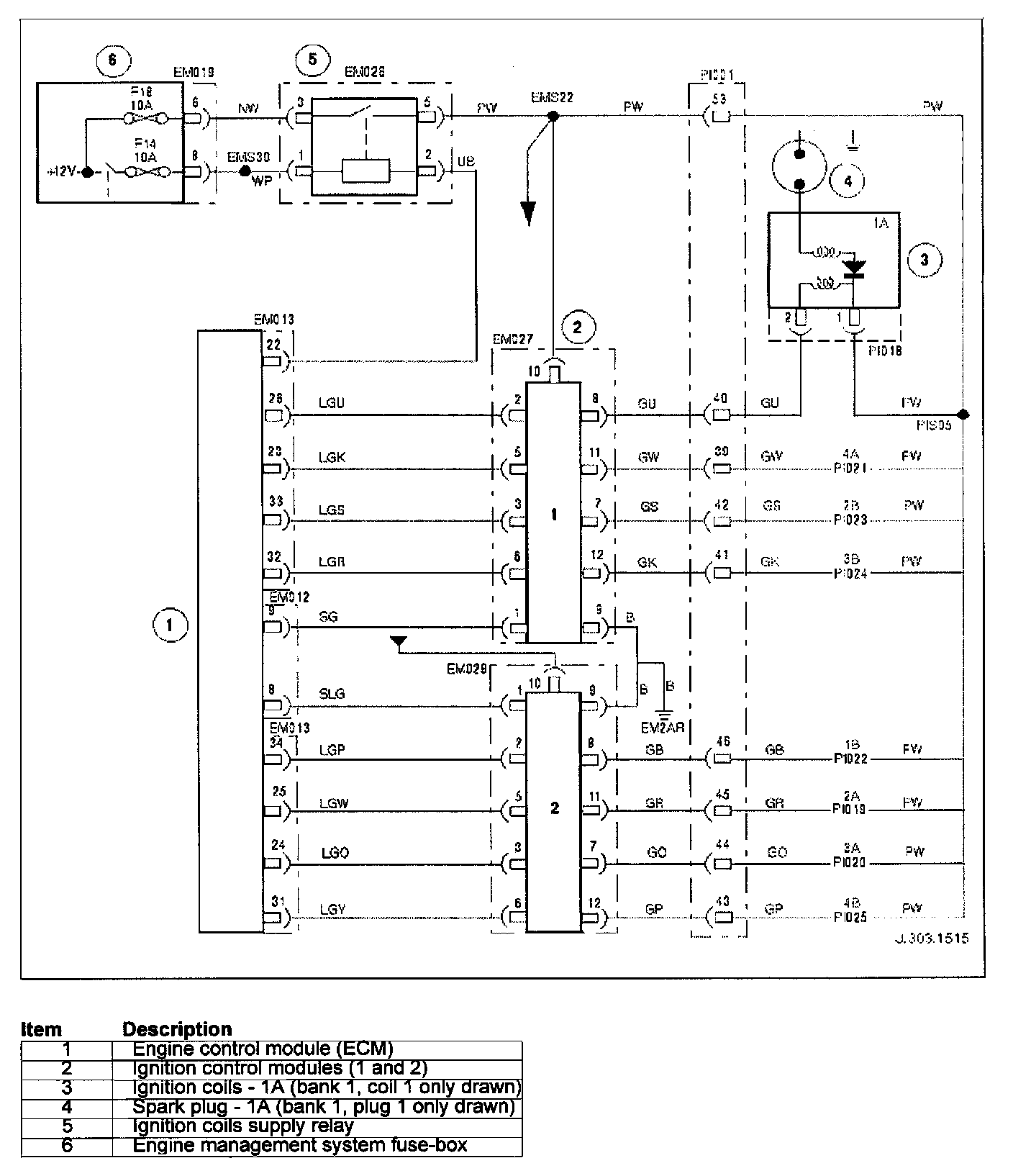

Ignition Coils/Amplifiers/ECM:

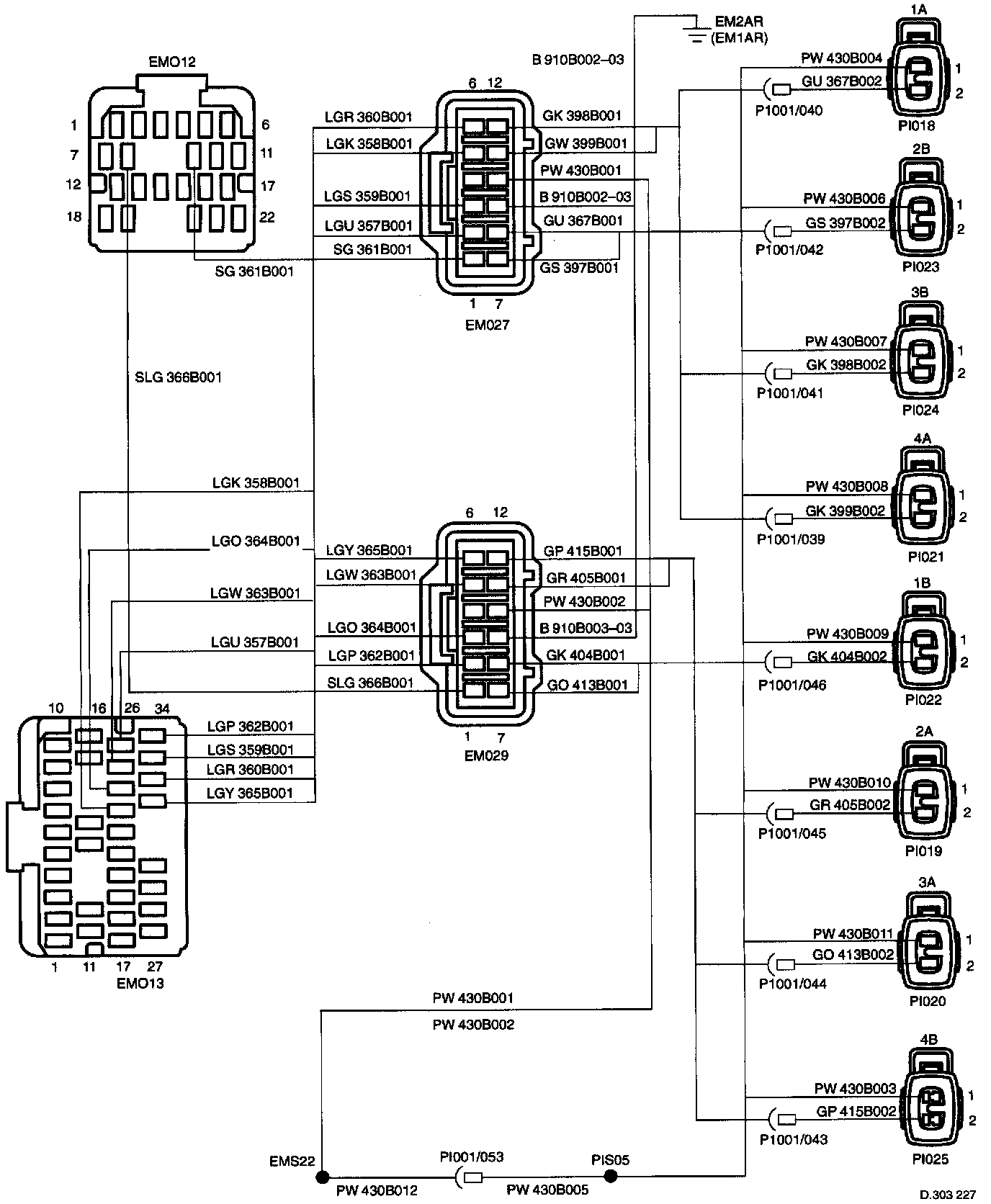

Ignition System:
