Electrical Diagrams



NOTE: For complete Engine Management wiring diagrams, see Powertrain Management / Diagrams / Electrical. Electrical Diagrams

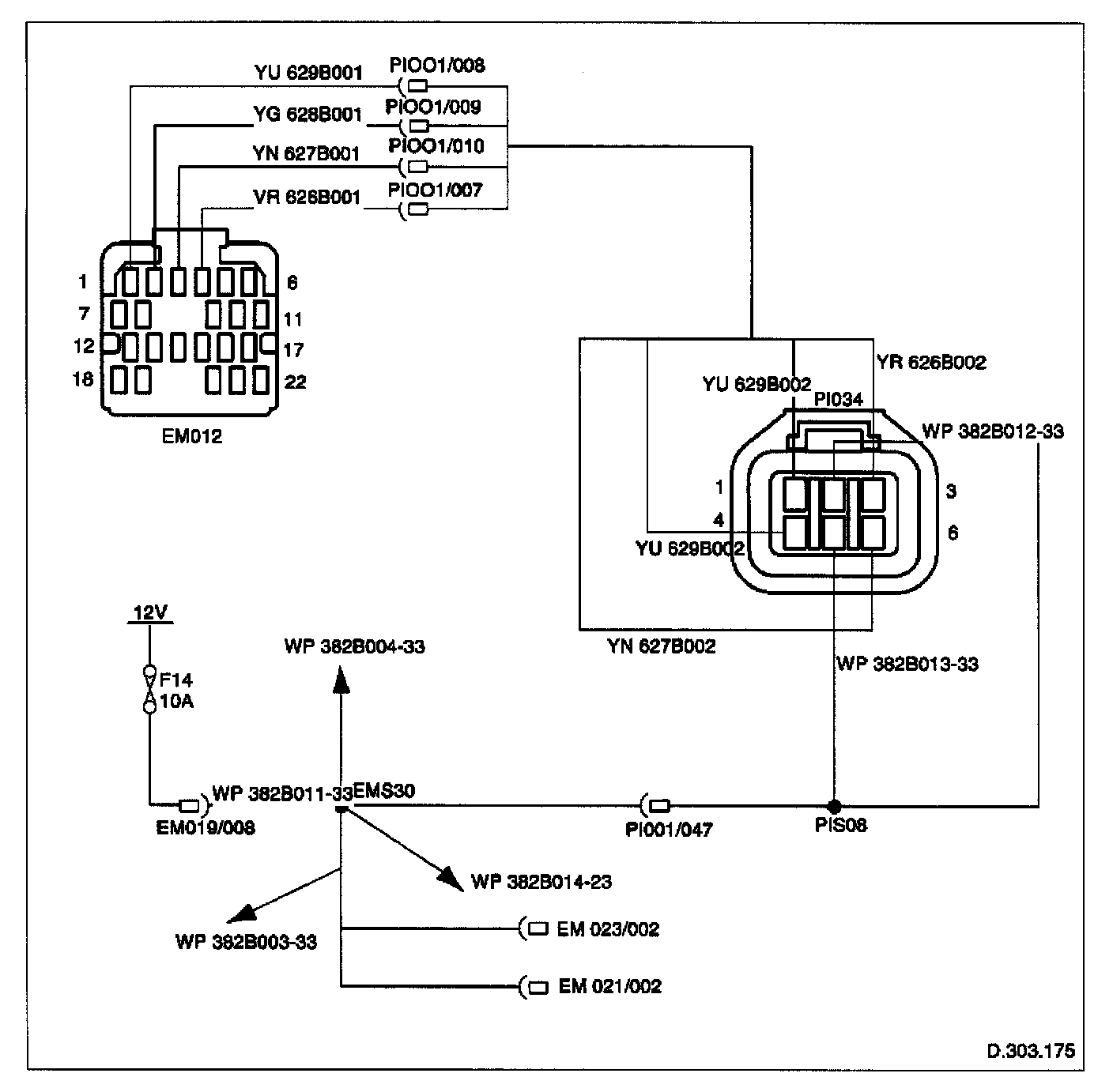

Circuit Diagram, EGR System / ECM:
