Jaguar
>>
1997
>>
XK-8 Convertible (X100) V8-4.0L (AJ26)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Electrical Diagrams
>>

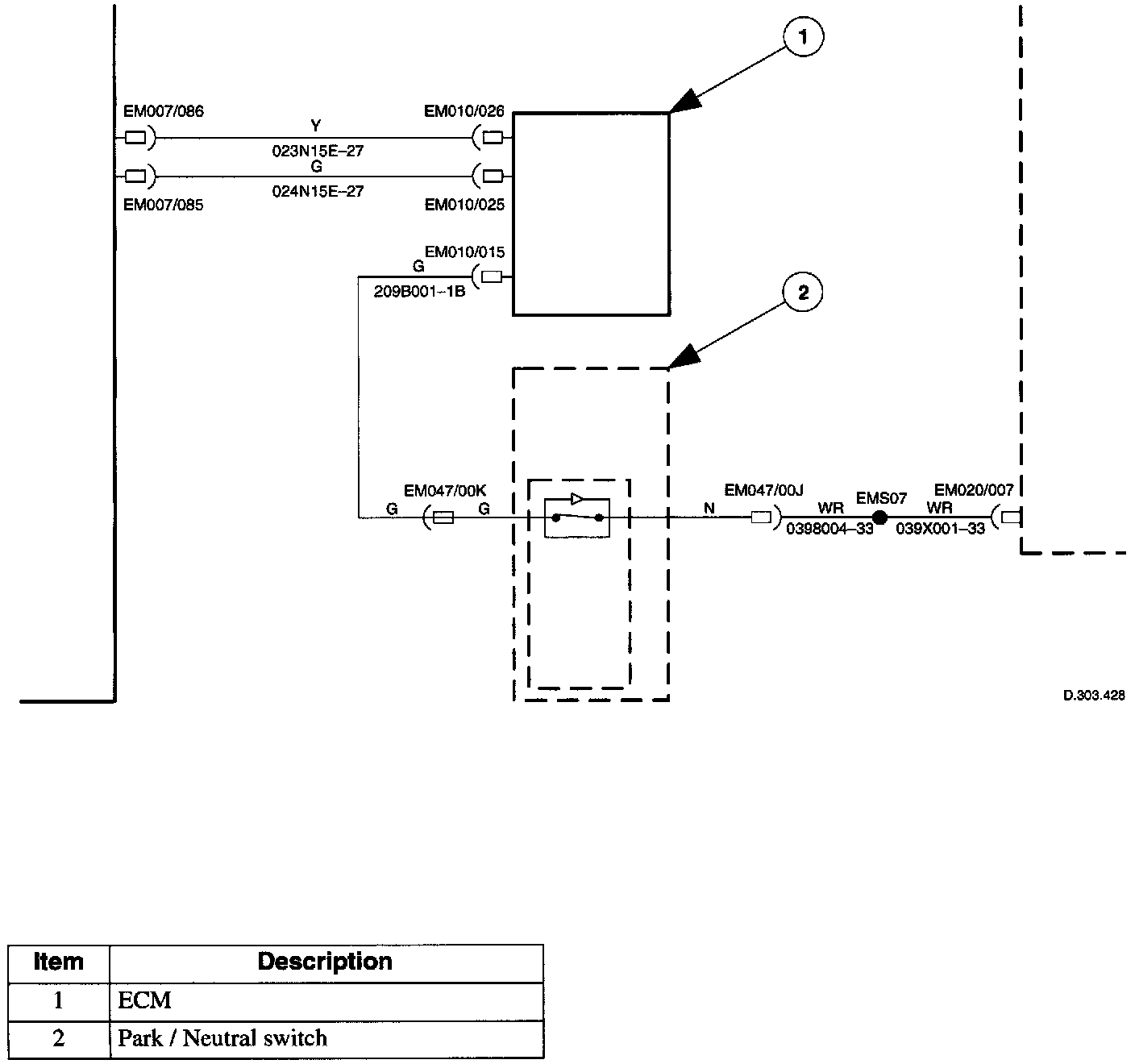

Circuit Diagram, Park/Neutral Switch/ECM
Circuit Diagram, Park/Neutral Switch/ECM
