Fuel Delivery and Air Induction: Locations

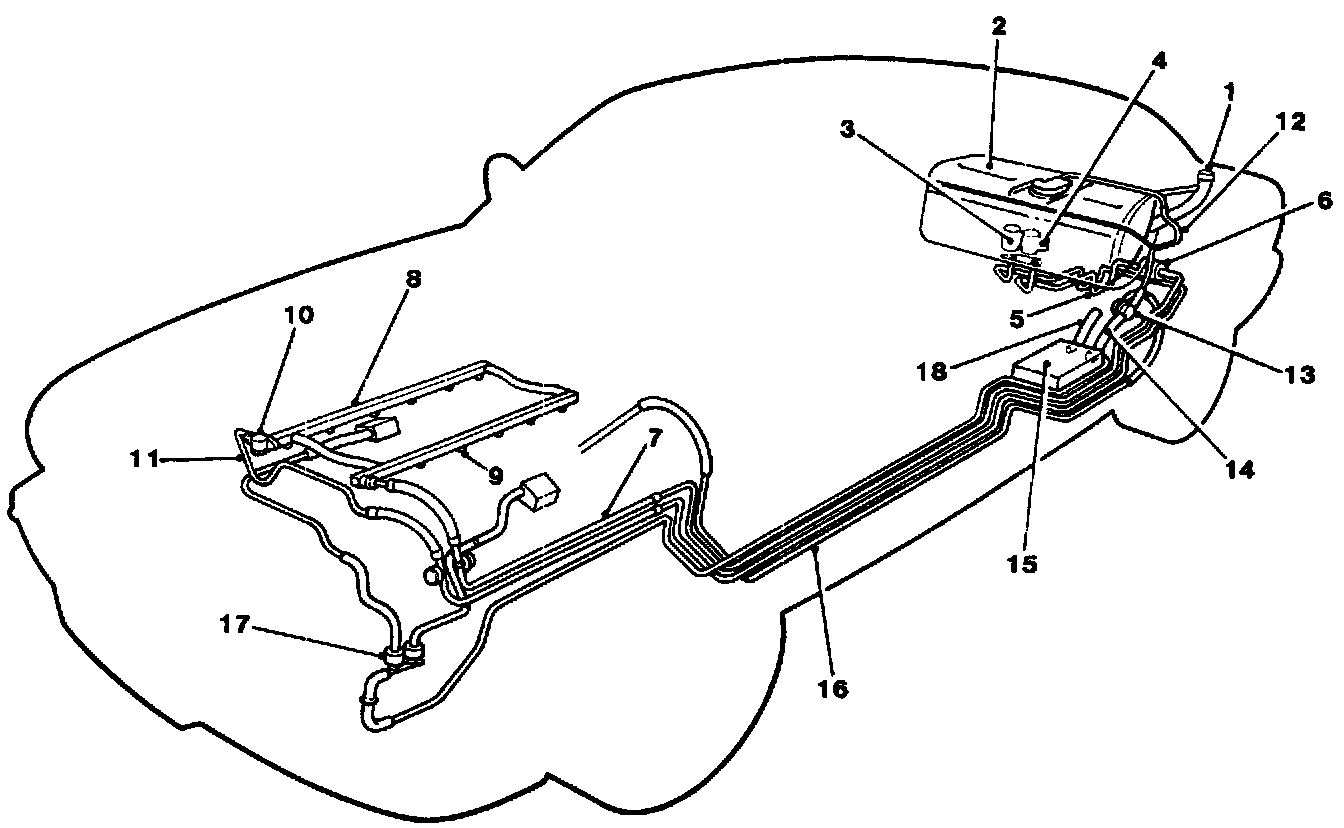

Fig. 1:

The above schematic illustration (Fig. 1), shows the part and component layout of the fuel system and is to be read with the table below.

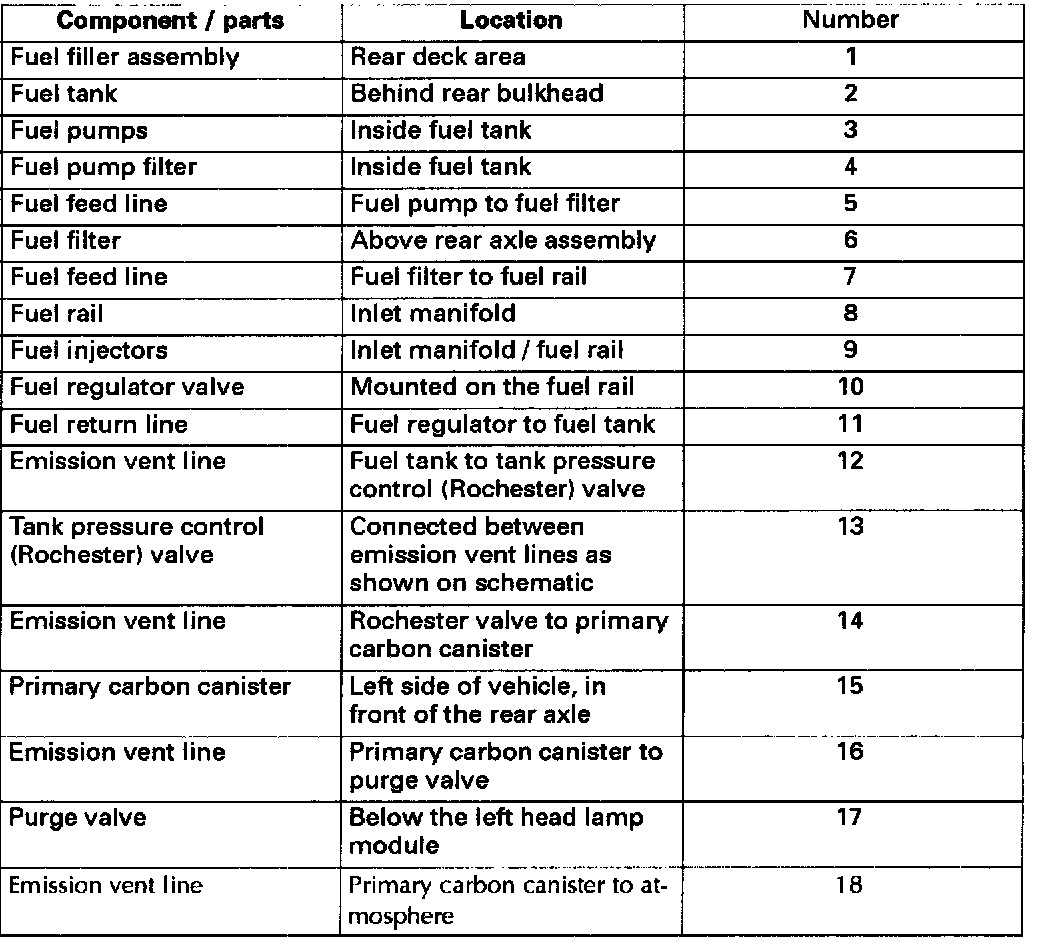

Key To Fig.1:
