Measuring Sender Unit Resistance

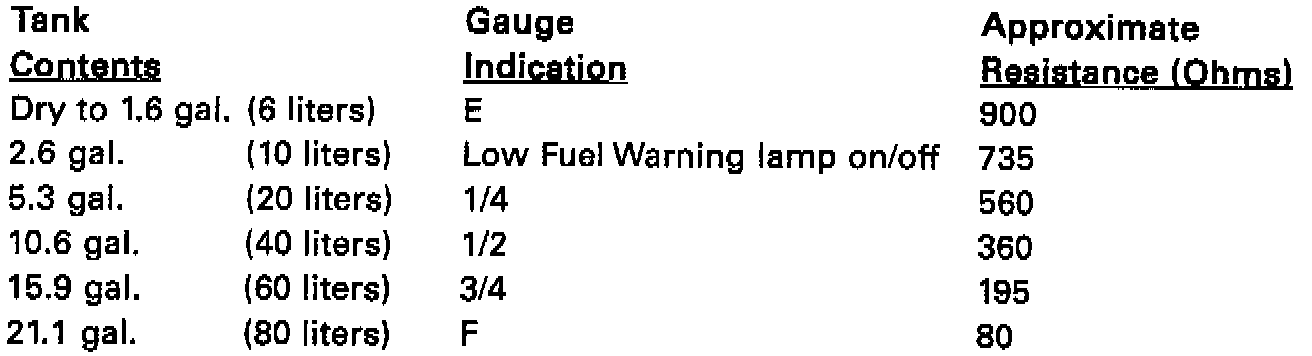

The resistance measurements correspond to the major markings on the fuel gauge. These figures should be used as a guide only because of tolerances in the gauge and sender units.
