Brake Pedal - Inconsistent Return: Overview

12-07

DATE: 5/96

Sedan Range

Inconsistent Brake Pedal Return - Repair
Procedure

MODEL
1995 MY
Sedan Range

VIN
720001-748415

ISSUE:

Some 1995 MY Sedan Range vehicles within the above VIN range may exhibit inconsistent return of the brake pedal. This condition may be caused by interference between the brake pedal bushings and the pivot pin/pedal box or by weak brake booster spring pressure.

If this problem exists, it can be resolved by inspecting and greasing the pivot pin, and if necessary, installing a revised brake booster with a higher rate return spring.

PARTS INFORMATION:

DESCRIPTION PART NUMBER QTY

Brake booster JLM 12188 1

Pedal box MNA 5372BC 1

Pedal pivot pin CBC4681 1

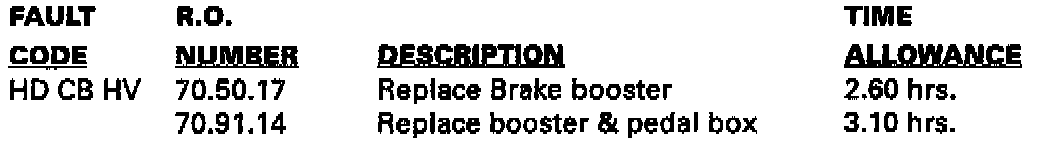

WARRANTY INFORMATION:
