Home
>>
Jaguar
>>
1995
>>
XJ-S Coupe (XJ27) L6-4.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

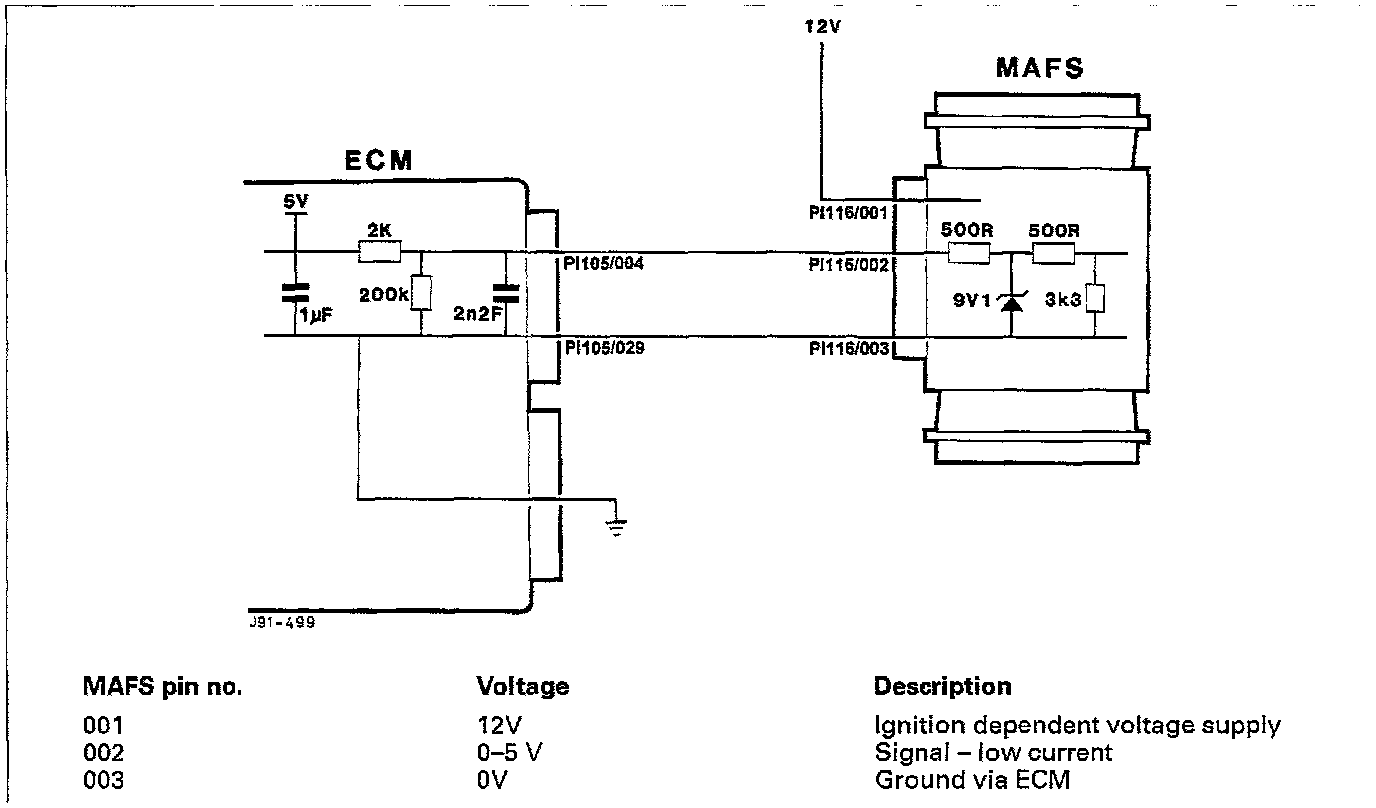

MAFS / ECM Interface Circuit:
