From VIN 198335

Climate Control System - From VIN 198335

�<�Climate Control:

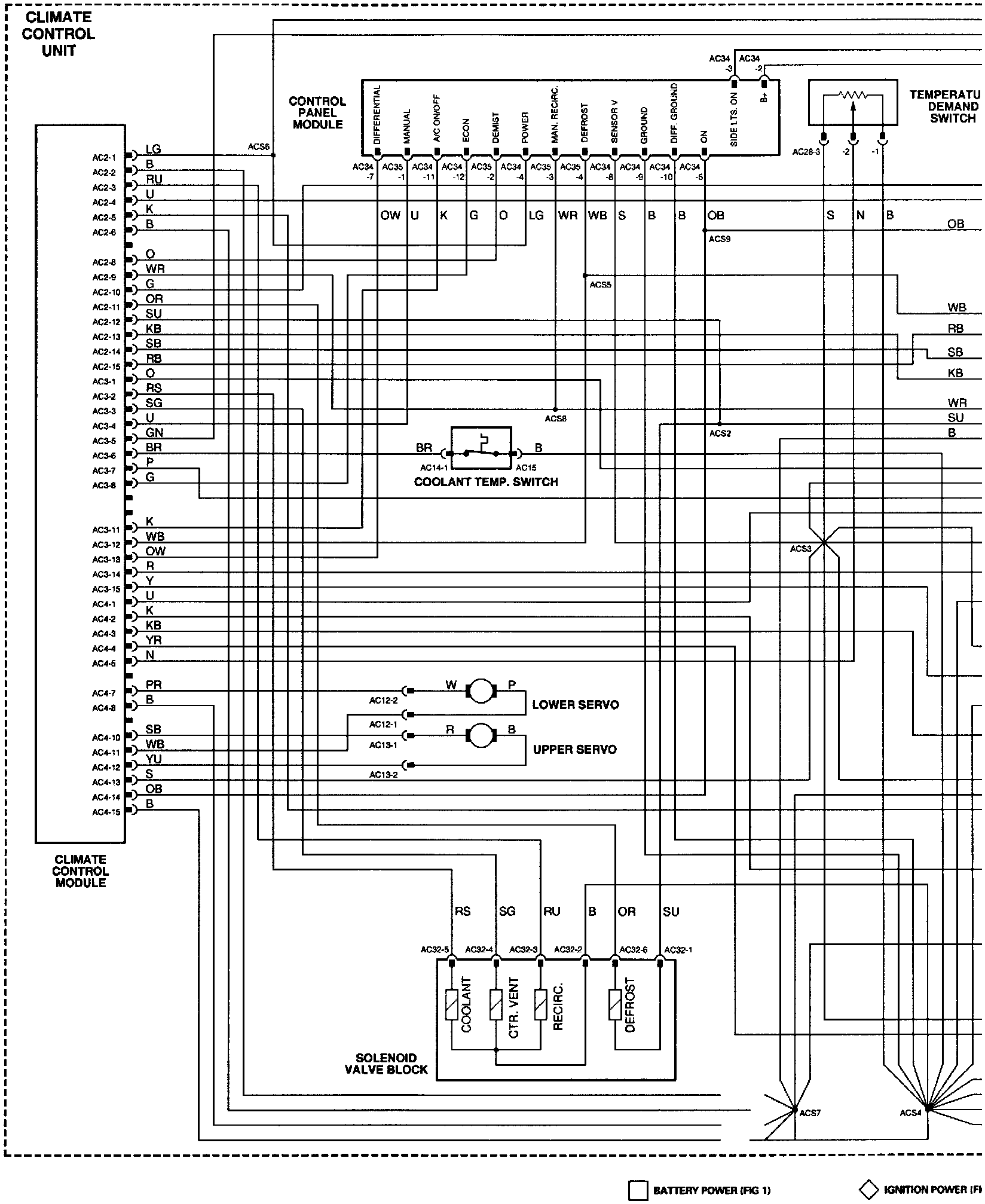

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Climate Control: Components:

Component Informations

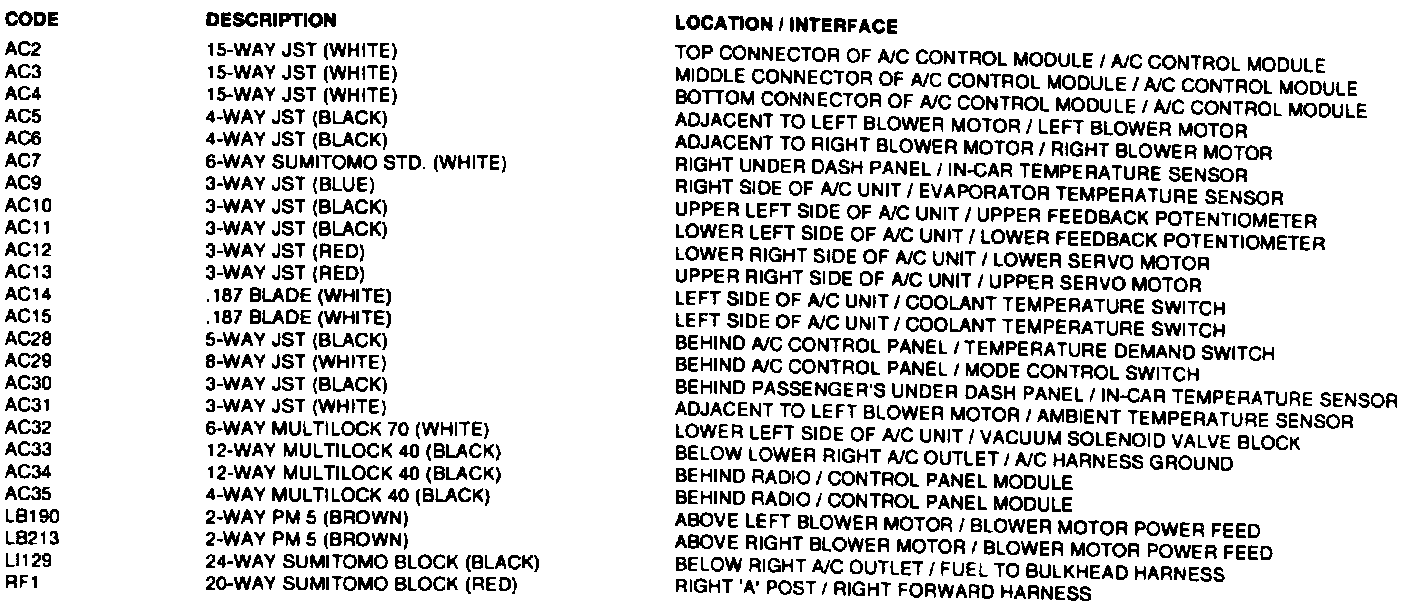

Climate Control: Connectors:

Connector Informations

Climate Control: Grounds:

Ground Informations

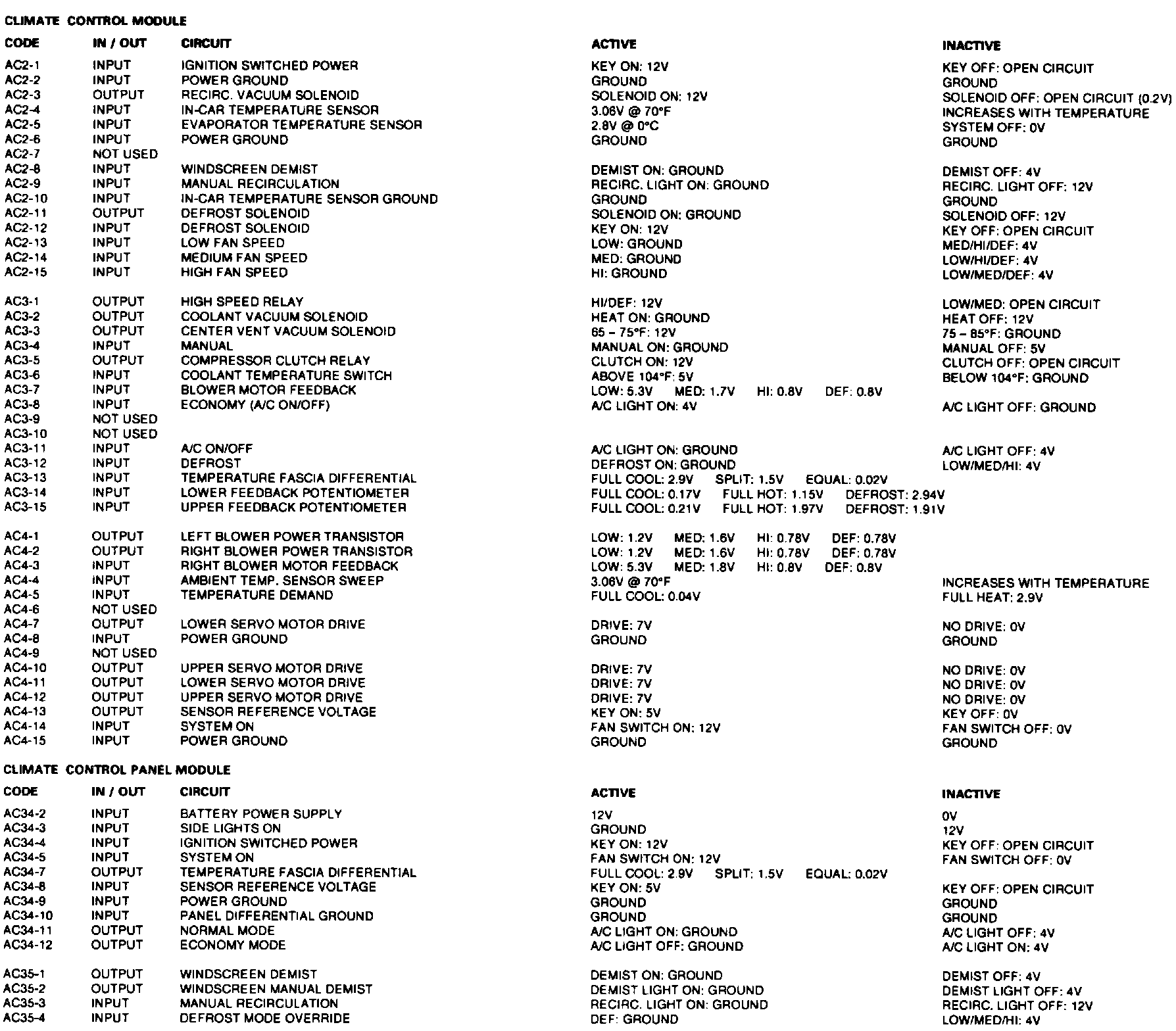

Climate Control: Inputs/Outputs:

Inputs/Outputs Informations
