From VIN 198335

!TTransmission Control:

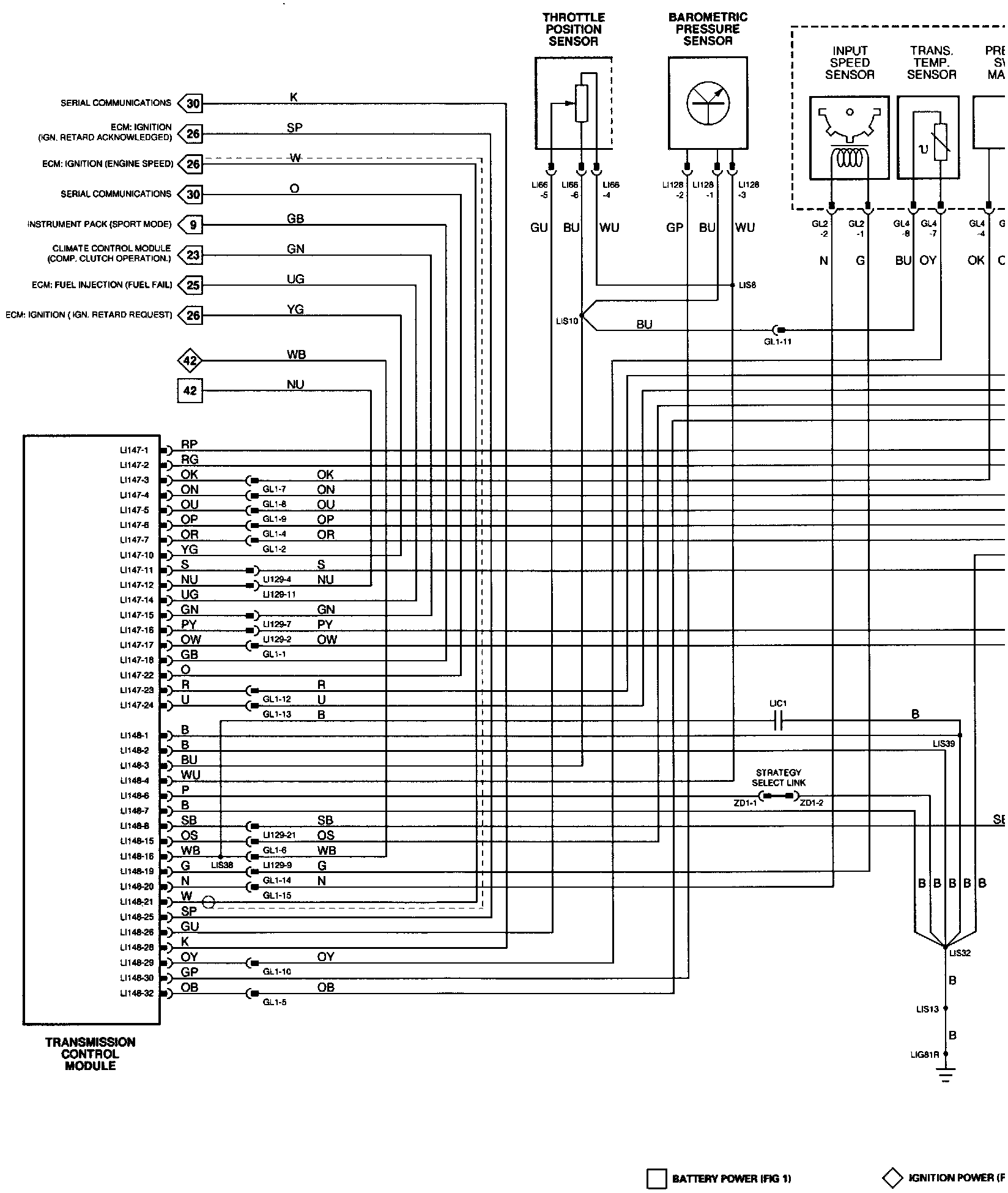

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

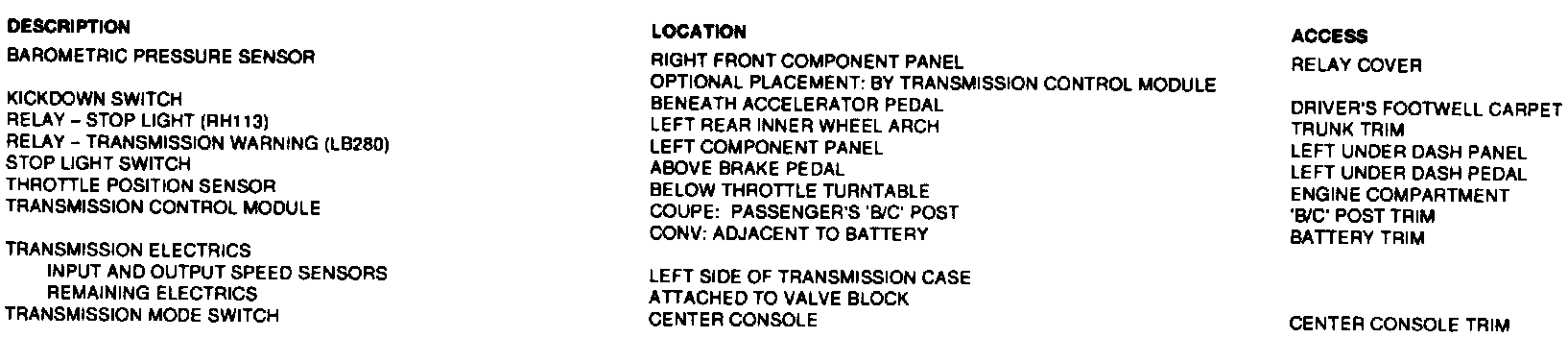

Transmission Control: Components:

Component Informations

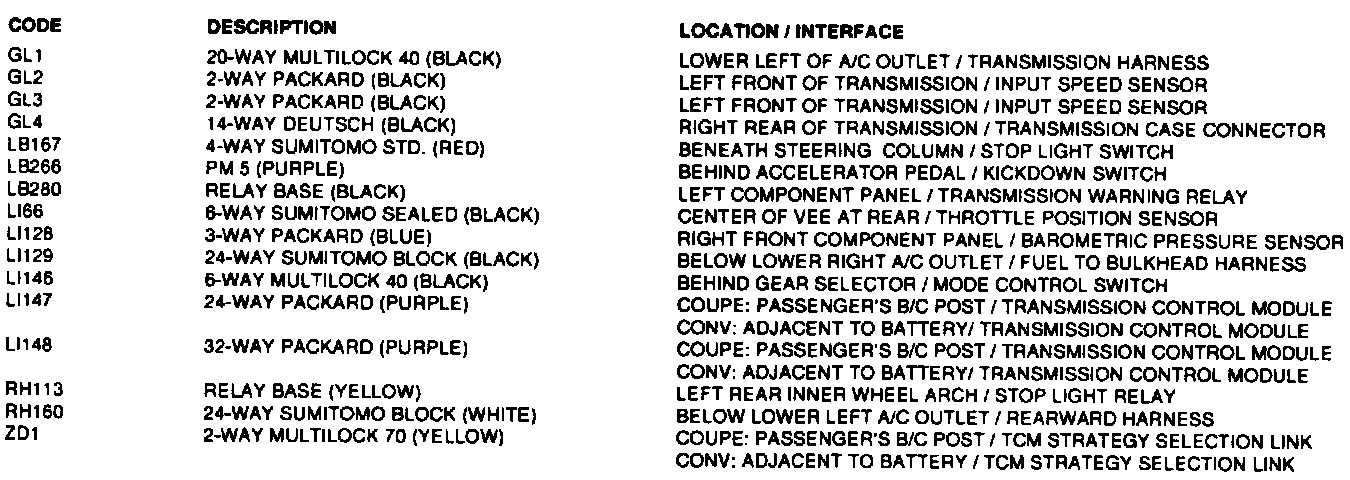

Transmission Control: Connectors:

Connector Informations

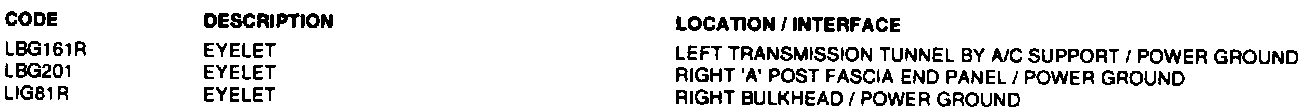

Transmission Control: Grounds:

Ground Informations

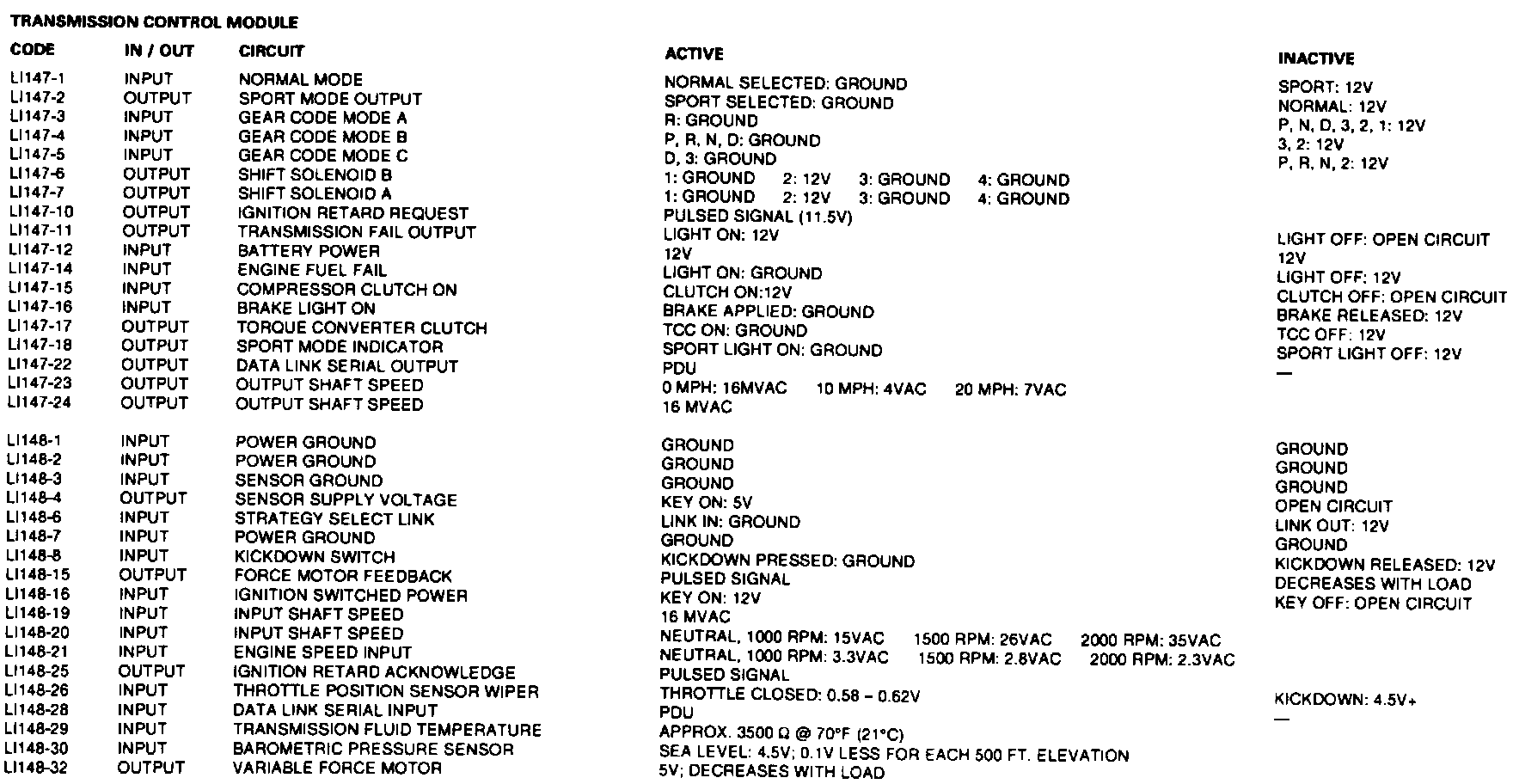

Transmission Control: Inputs/Outputs:

Inputs/Outputs Informations
