From VIN 198335

t�zSerial Communication Data Link:

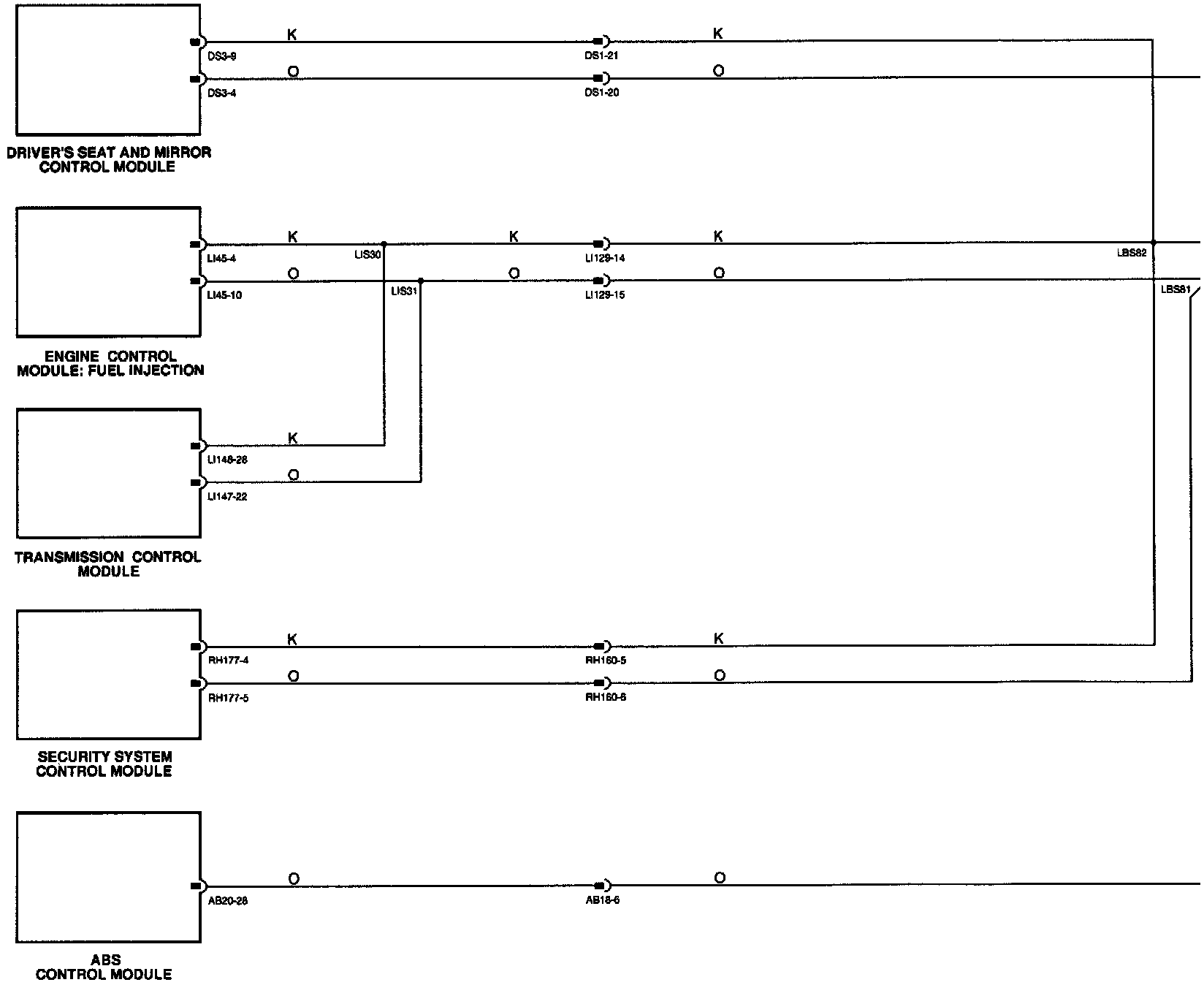

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

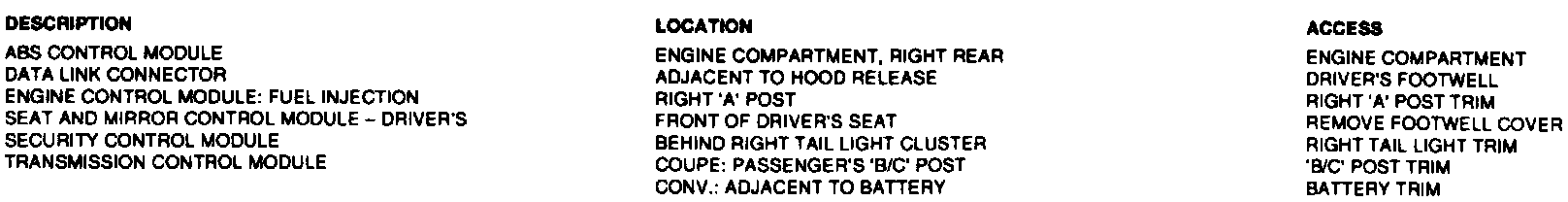

Serial Communication Data Link: Components:

Component Informations

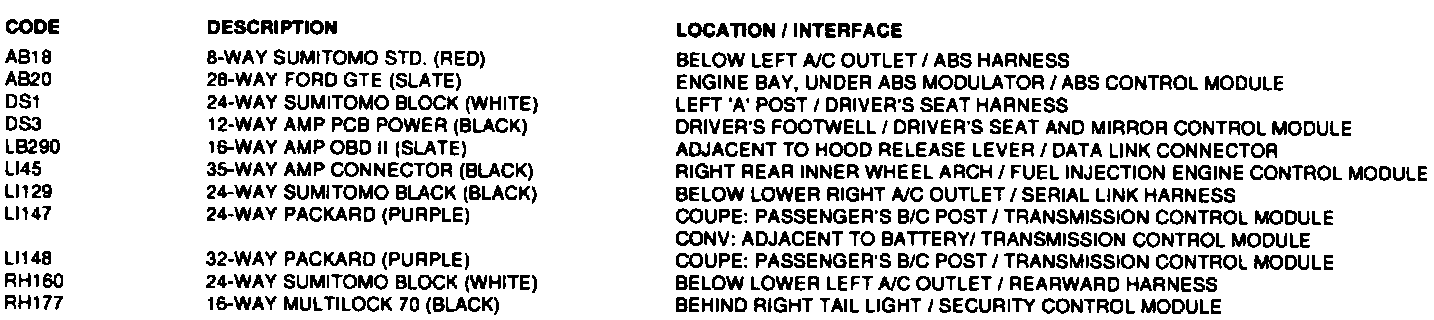

Serial Communication Data Link: Connectors:

Connector Informations

Serial Communication Data Link: Grounds:

Ground Informations
