Recall - Air Injection Check Valve Replacement: Overview
05.2-11DATE: 11/95
Amended 07/01
Sedan Range
MODEL:
1995 MY XJ12 Sedan
VIN:
720001 - 754303
MIL Illumination - DTC P0410 - AIR System - Replace Check Valves - Service Action S653
Remove and destroy Bulletin 05.1-11, dated 11/95. Replace with this Bulletin. Revisions are shown with asterisks.
* ISSUE:
* A number of 1995 XJ12 vehicles have still not been modified in accordance with this service action campaign. Failure to carry out this repair may, over time, lead to degradation of the catalytic converter that may cause the vehicle to fail in an emissions test. For this reason Jaguar Cars North America will write to all owners of vehicle within the above VIN range who have not already had this modification carried out, asking them to contact their nearest dealer to install new check valves on their vehicle.*
A revised check valve for the Secondary Air Injection System is available for XJ12 vehicles within the above VIN range to eliminate unnecessary illumination of the MIL.
ACTION:
Replace both check valves on 1995 MY XJ12 vehicles within the above VIN range with Part No. NAC 4793BA. Two valves are required per vehicle.
This procedure should be performed at PDI prior to vehicle hand-over. On vehicles in service, the check valve should be replaced at the first service opportunity or in the case of a customer complaint.
NOTE:
Because of the shallow depth of the hex nut which is part of the check valve, a "thin jaw" 27 mm open end wrench is required for the following procedure. Snap-On part no. FC 34A - chrome, or GFC 34A - black anodized, can be used when ground down to 5 mm.
1. Beginning with the A bank, loosen the hose clamp and remove the hose from the check valve.
2. Use a 27 mm open end wrench as described above, to remove the check valve from the air rail.
3. Install a new folded copper sealing ring washer Part No. C 45759/3 to the replacement check valve, Part No. NAC 4793BA. The new valve can be identified by a white stripe painted around the circumference.
4. Install the check valve and washer on the air rail. Tighten the check valve only enough to compress the copper washer to ensure an air tight seal.
5. Reconnect the hose and tighten the hose clamp.
6. Repeat steps 1-6 for the check valve on the B bank.
7. Use the WDS to clear DTC P0410. Any other codes that are matched must be diagnosed further.

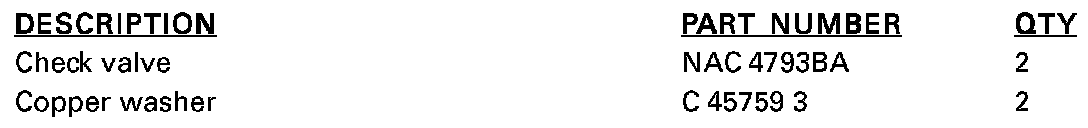

PARTS INFORMATION
WARRANTY INFORMATION
NOTE:
Always perform a DCS claim search first to determine whether this service action has been performed on this vehicle. The warranty selection under the vehicle inquiry will give a listing of all claims against the vehicle. If S653 appears in the fault code field, do not perform this service action.
CLAIM SUBMISSION PROCEDURE:

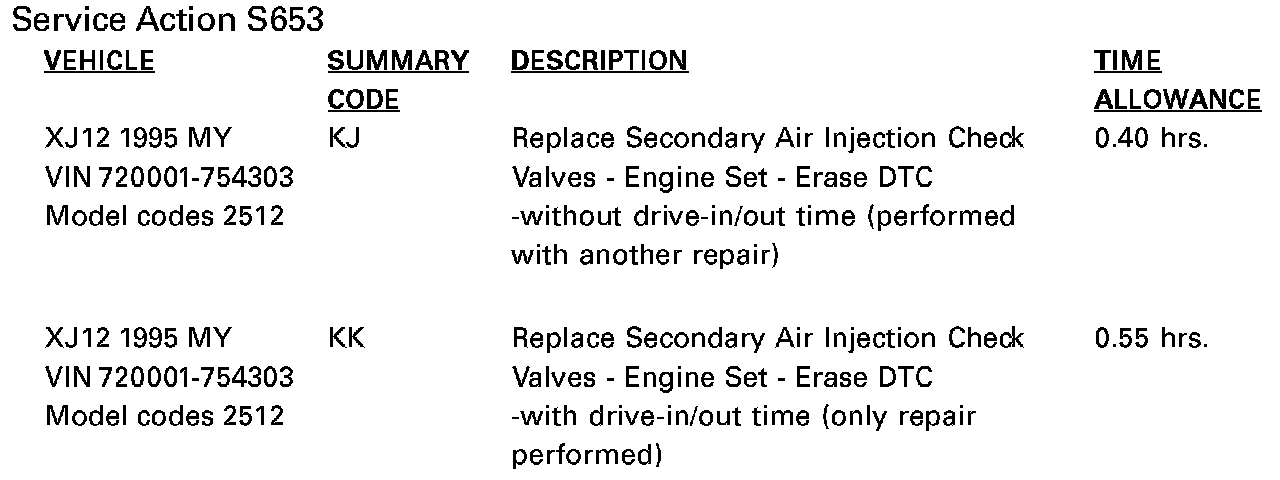

Warranty summary codes have been assigned to this service action in order to simplify claim submission. The dealership will be reimbursed the parts and labor time allowance as indicated.
DCS DEALERS
Submit claims using the appropriate summary code for the vehicle model and work performed. Follow standard campaign submission procedures.
NON-DCS DEALERS
Submit claims on the Recall Campaign Summary form W-25. Enter the appropriate summary code for the vehicle model and work performed in the Repair Code column. Do not use the W-1 warranty claim form.
