Fuel Tank - Will Not Fill Above 3/4 Level: Overview
05.2-10DATE:
2/95
Sedan Range
MODEL:
1995 MY
XJ12 Sedan
VIN:
720001-724559
Fuel Tank Fill - Tank Will Not Fill Above 3/4 - Replace Fuel Tank - Service Action 626
ISSUE:
The fuel tank will not fill above 3/4 full.
Service station gas pumps that deliver less than 8 gallons per minute may not be able to completely fill the fuel tanks of 1995 MY Sedan Range vehicles (VIN 720001 - 724559).
ACTION:
If a customer complains that the fuel tank of a 1995 MY Sedan Range vehicle within the VIN range cannot be filled above approximately 3/4 full, replace the fuel tank assembly with a new fuel tank assembly. Follow the procedure detailed below.
NOTE:
Perform this action on a customer complaint basis only.
PARTS INFORMATION:
DESCRIPTION PART NUMBER
Fuel tank assembly - Sedan Range (4.0L Normally Aspirated) NNA 5908FD/1K
Fuel tank assembly - XJR (4.0L Supercharged) and XJ12 NNA 5908EB/1K
Sedan
Tie strap C 46294
WARRANTY INFORMATION
Service Action S626
CLAIM SUBMISSION PROCEDURE:

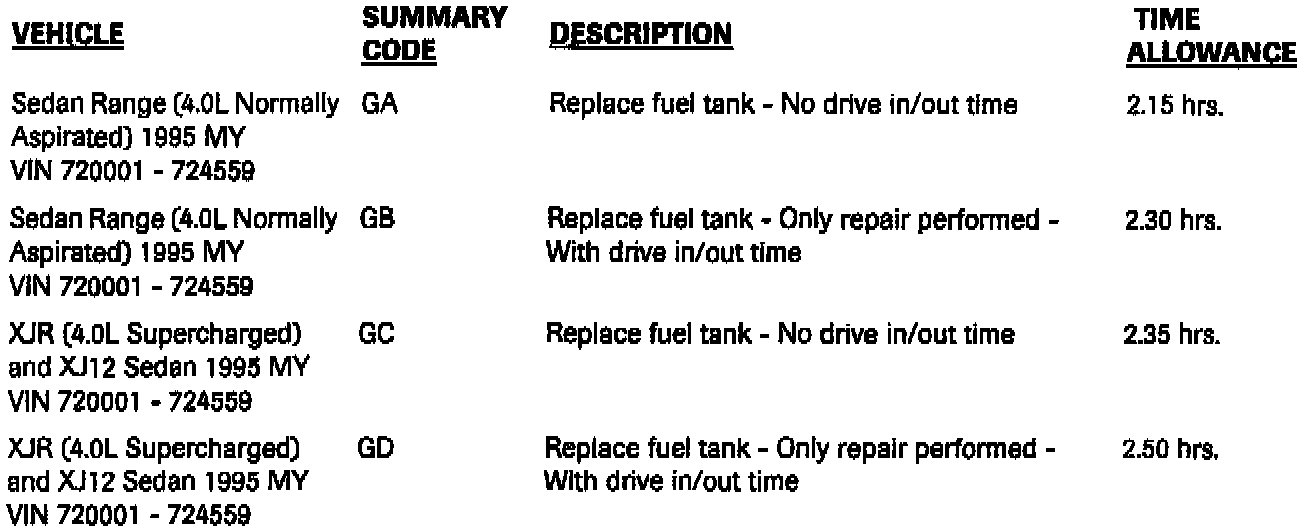

Warranty summary codes have been assigned to this service action in order to simplify claim submission. The dealership will be reimbursed the parts and labor time allowance as indicated.
DCS Dealers
Submit claims using the appropriate summary code for the vehicle model and work performed. Follow standard campaign submission procedures.
Non-DCS Dealers
Submit claims on the Recall Campaign Summary form W-25. Enter the appropriate summary code for the vehicle model and work performed in the Repair Code column. Do not use the W-1 warranty claim form.
