Jaguar
>>
1994
>>
XJ-S Convertible (XJ27) V12-6.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Climate Control System
>>
R12 Systems Up to VIN 190528
R12 Systems Up to VIN 190528
R12 Systems Up to VIN 190528
[�:

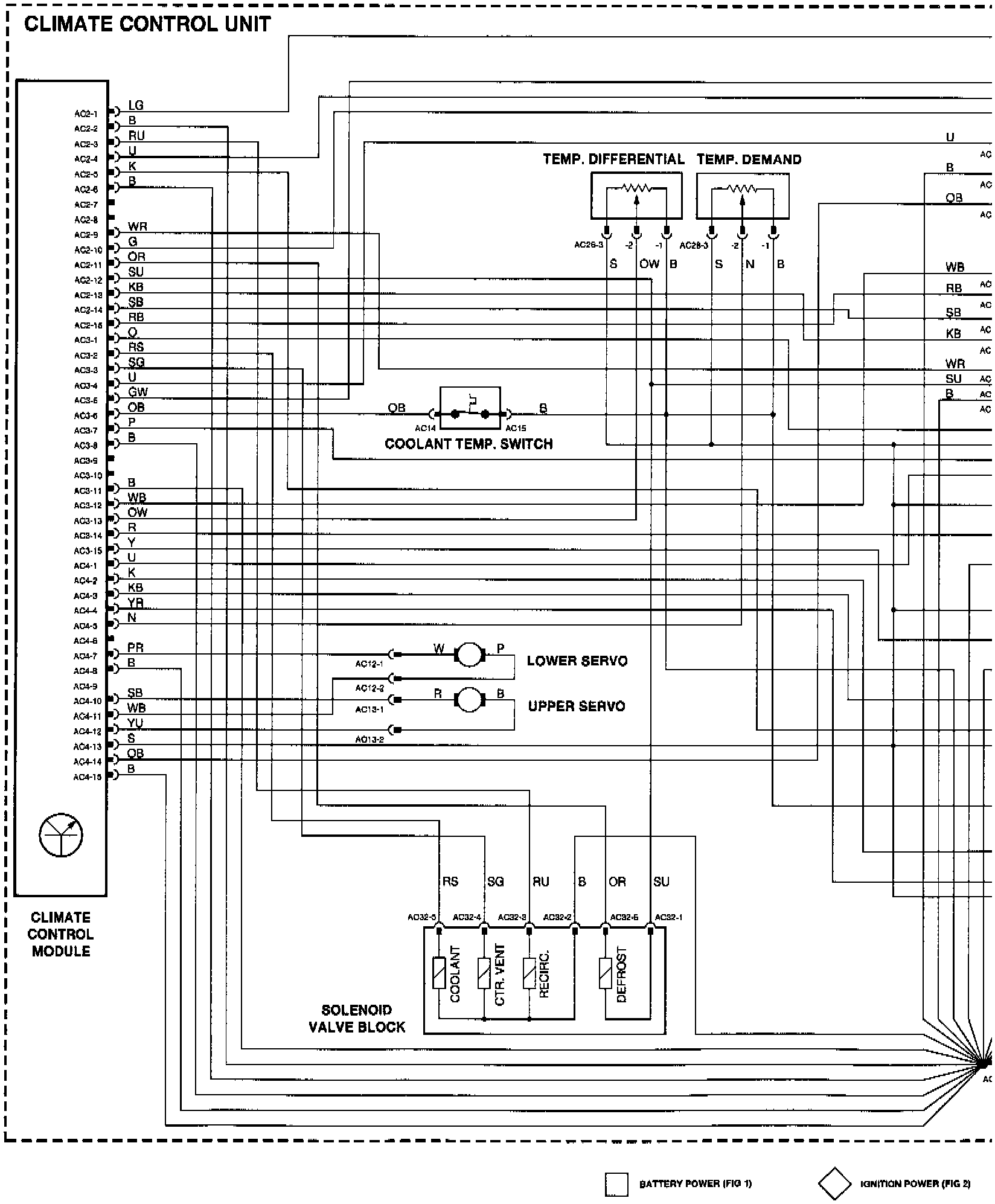

Wiring diagram

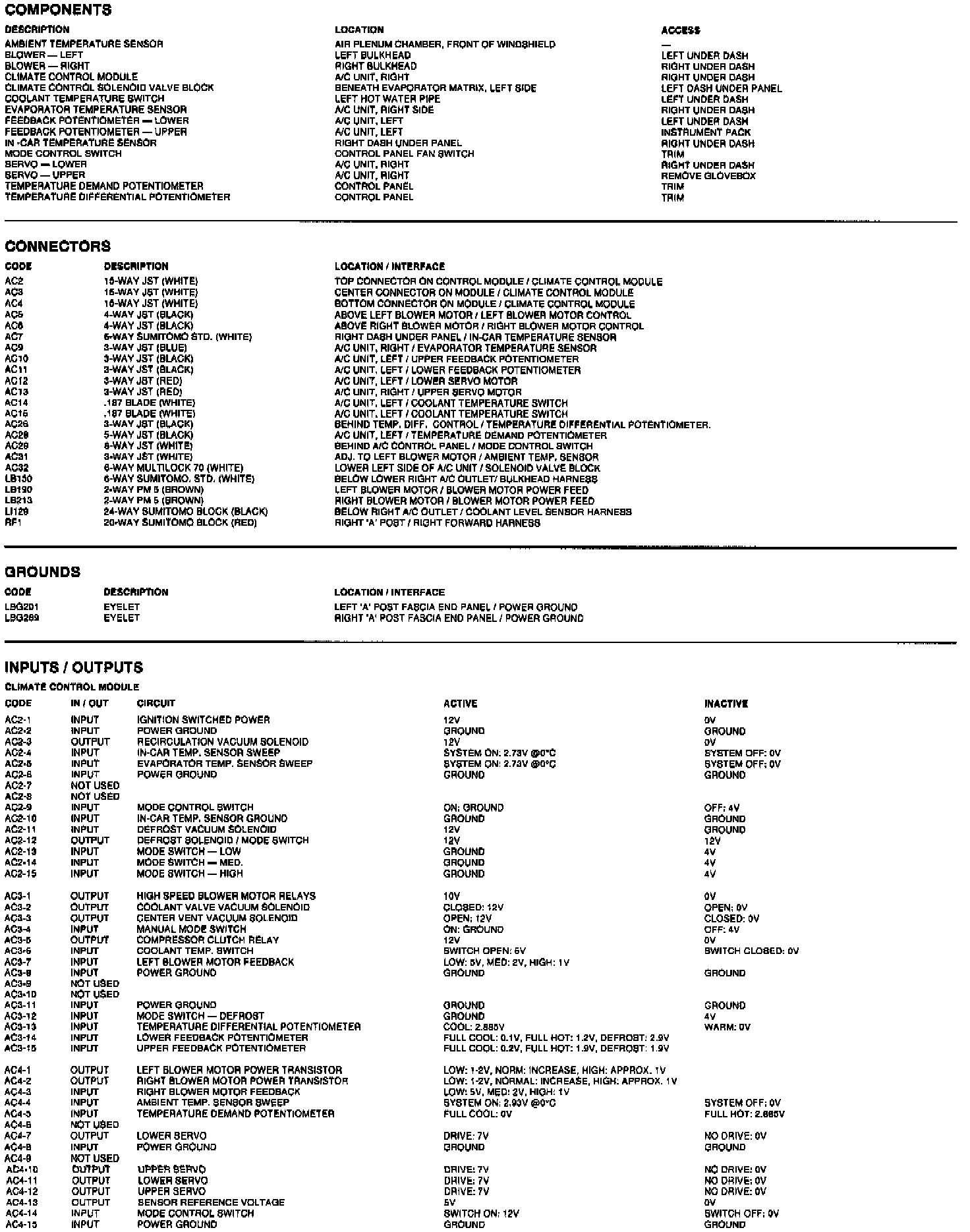

Components, connectors, grounds, inputs/outputs
