Home >> Jaguar >> 1994 >> XJ-S Convertible (XJ27) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signals

Turn Signals

 �$:

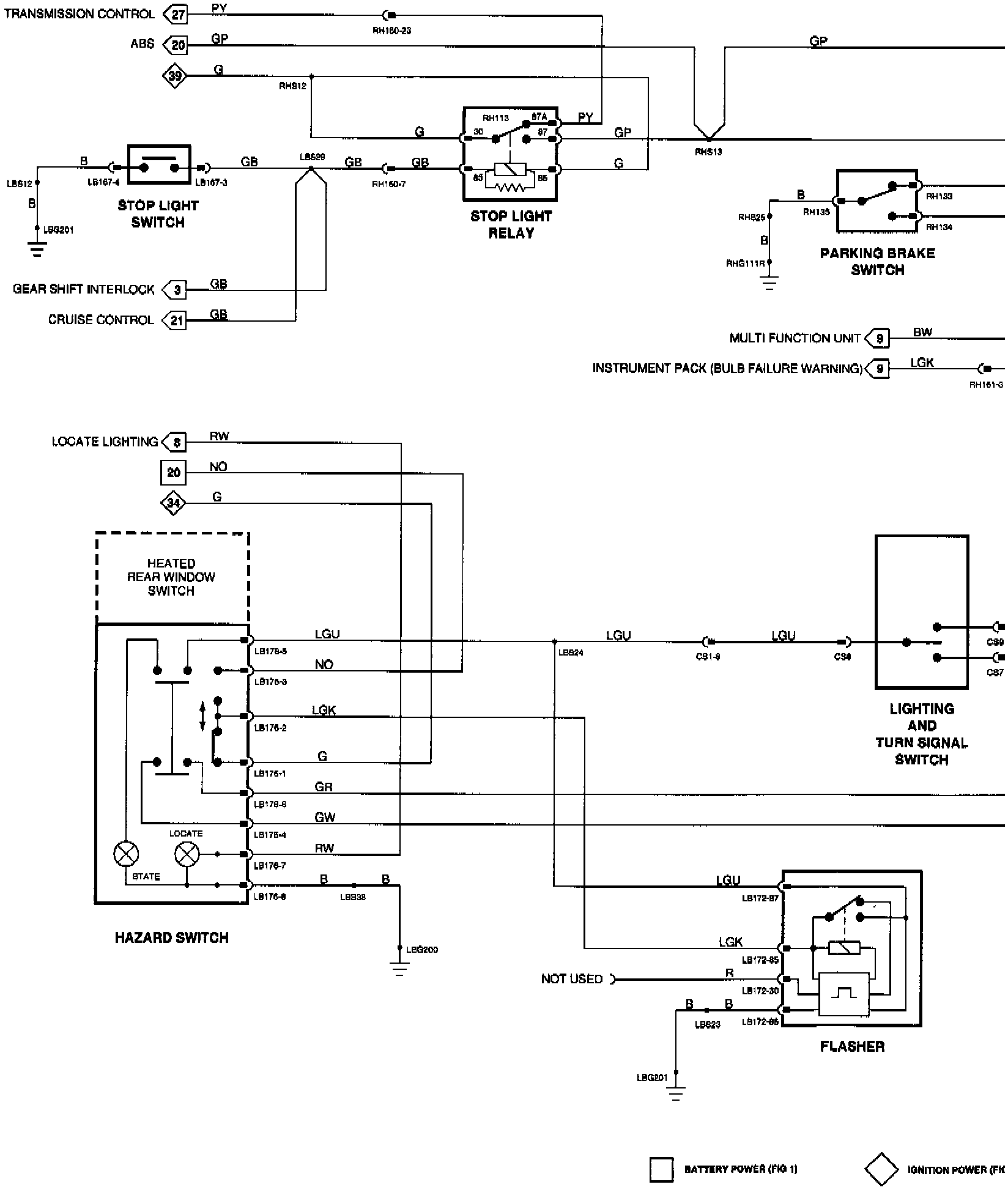

Wiring diagram

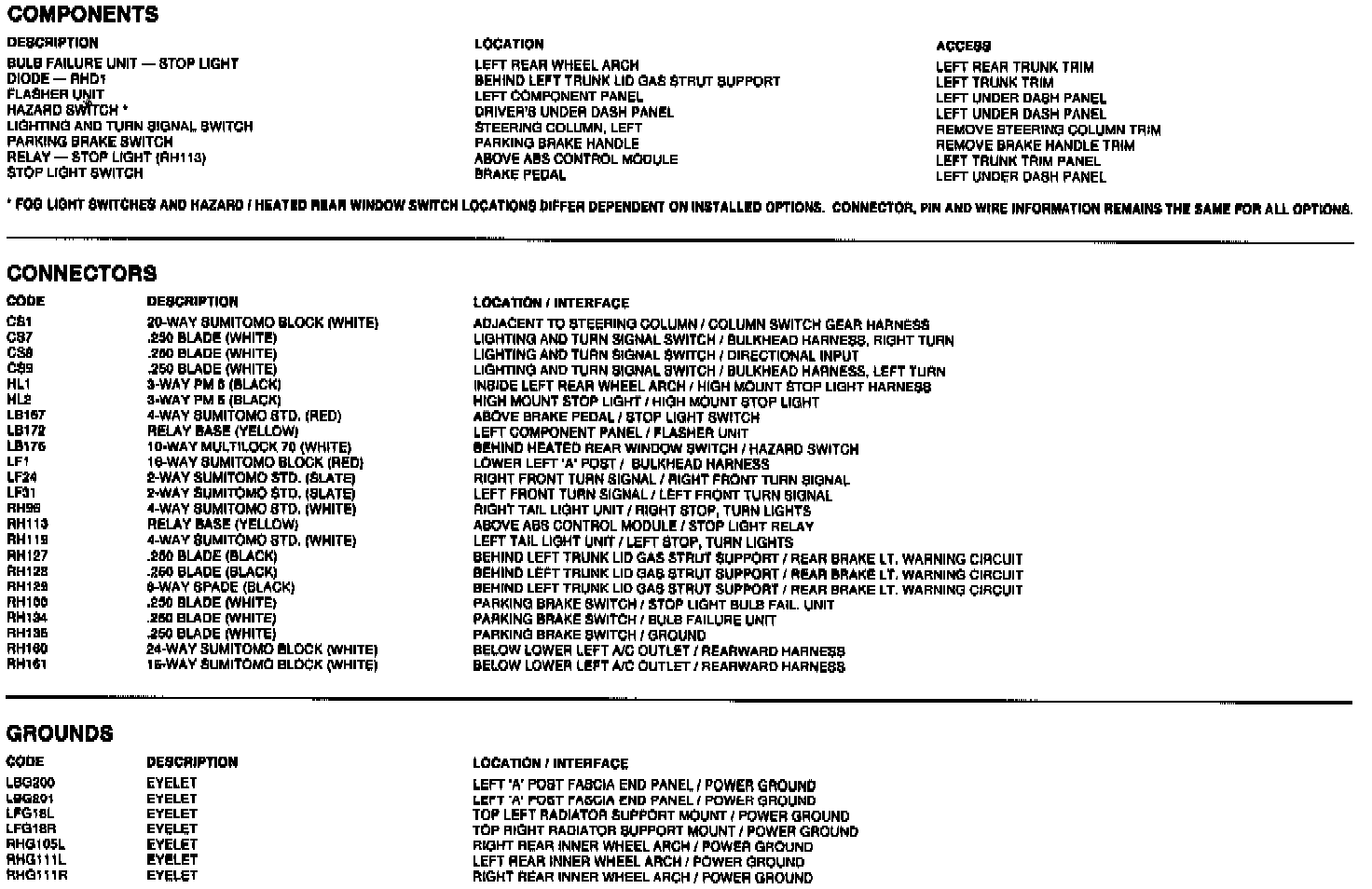

Components, connectors, grounds
