Seat Temperature Element
Seat Temperature Element
qv]":

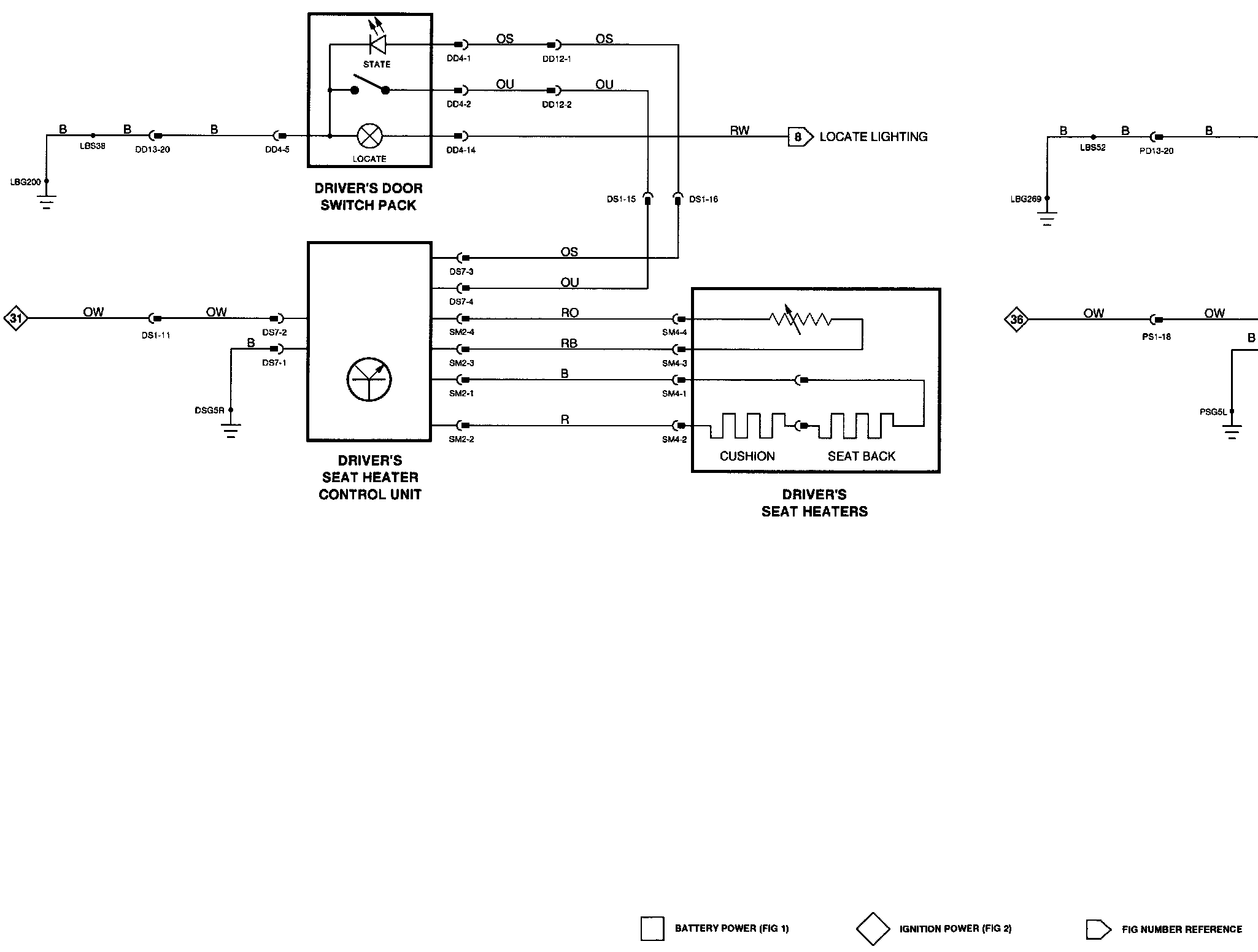

Wiring diagram

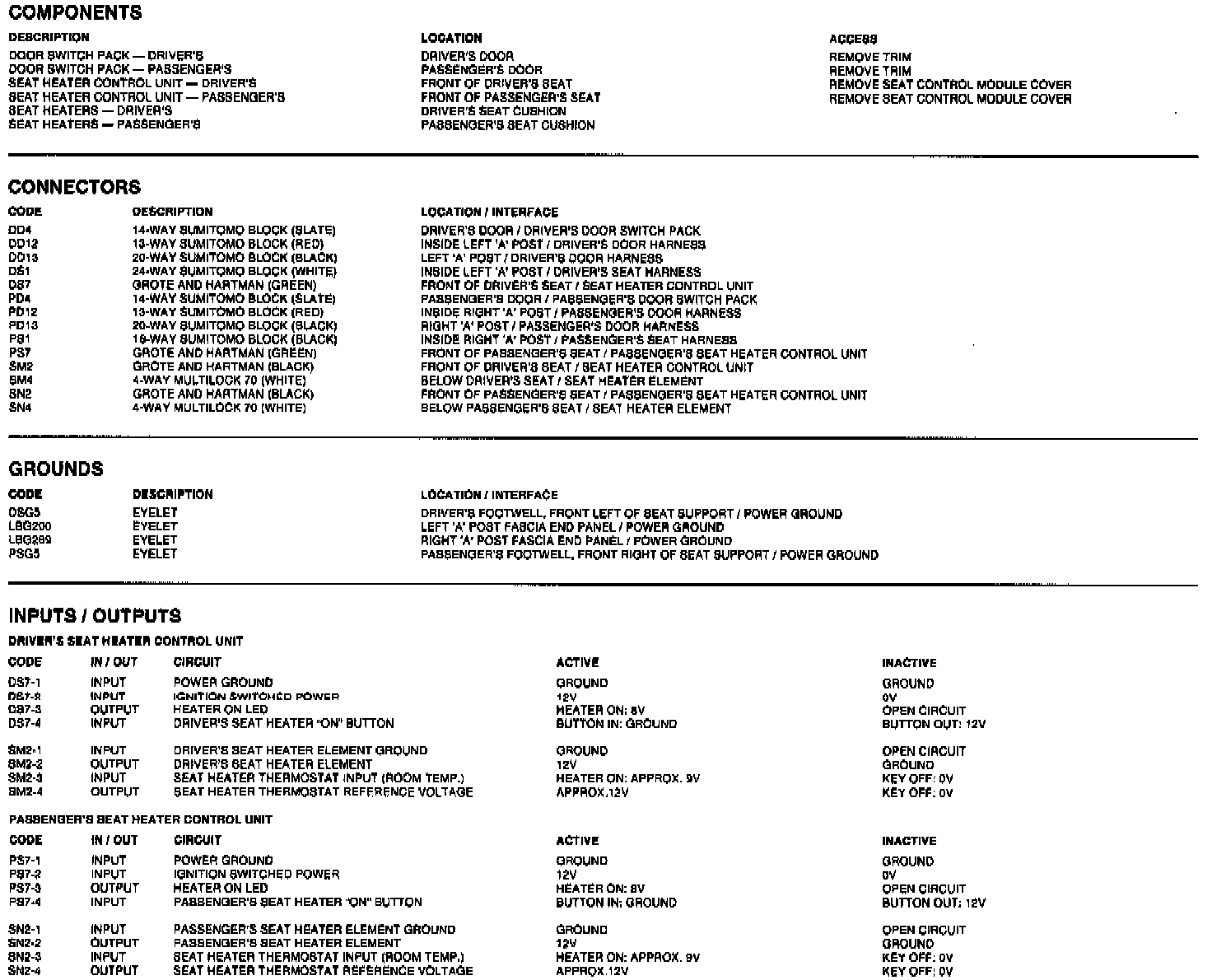

Components, connectors, grounds, inputs/outputs
