Convertible Top
Convertible Top
k�� :

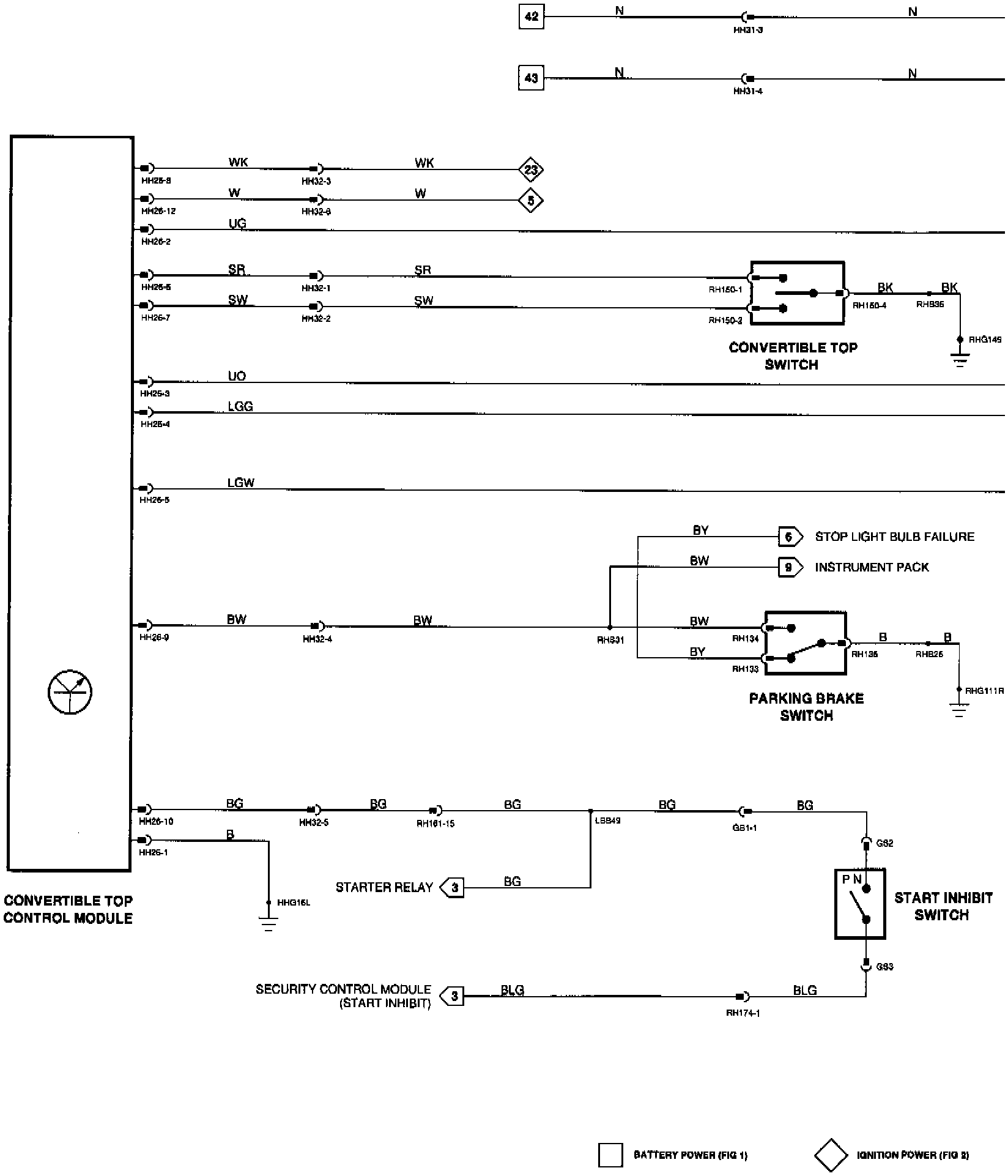

Wiring diagram

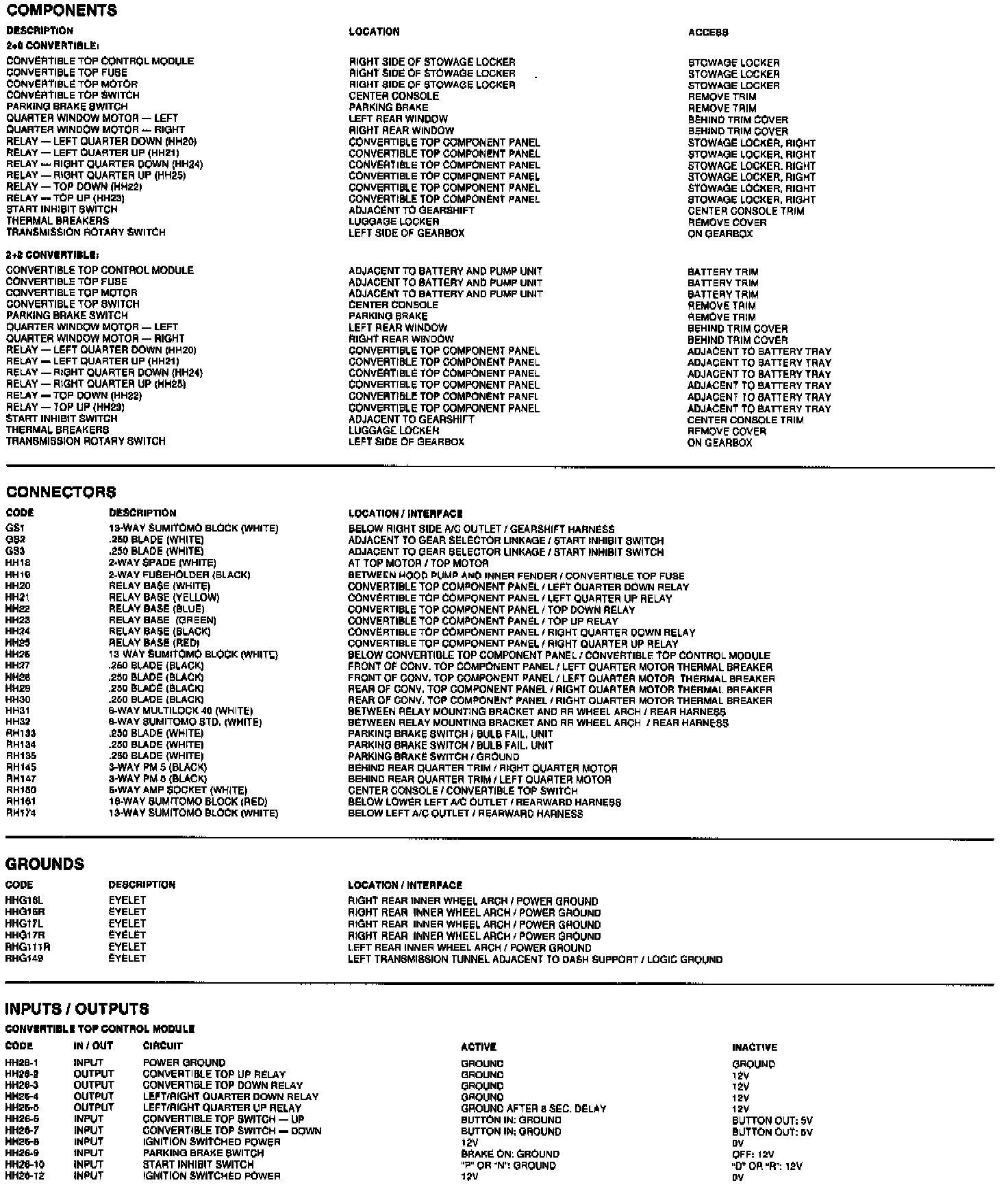

Components, connectors, grounds, inputs/outputs
