Jaguar
>>
1994
>>
XJ-S Convertible (XJ27) V12-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Backup Lamp
Backup Lamp
�G�$:

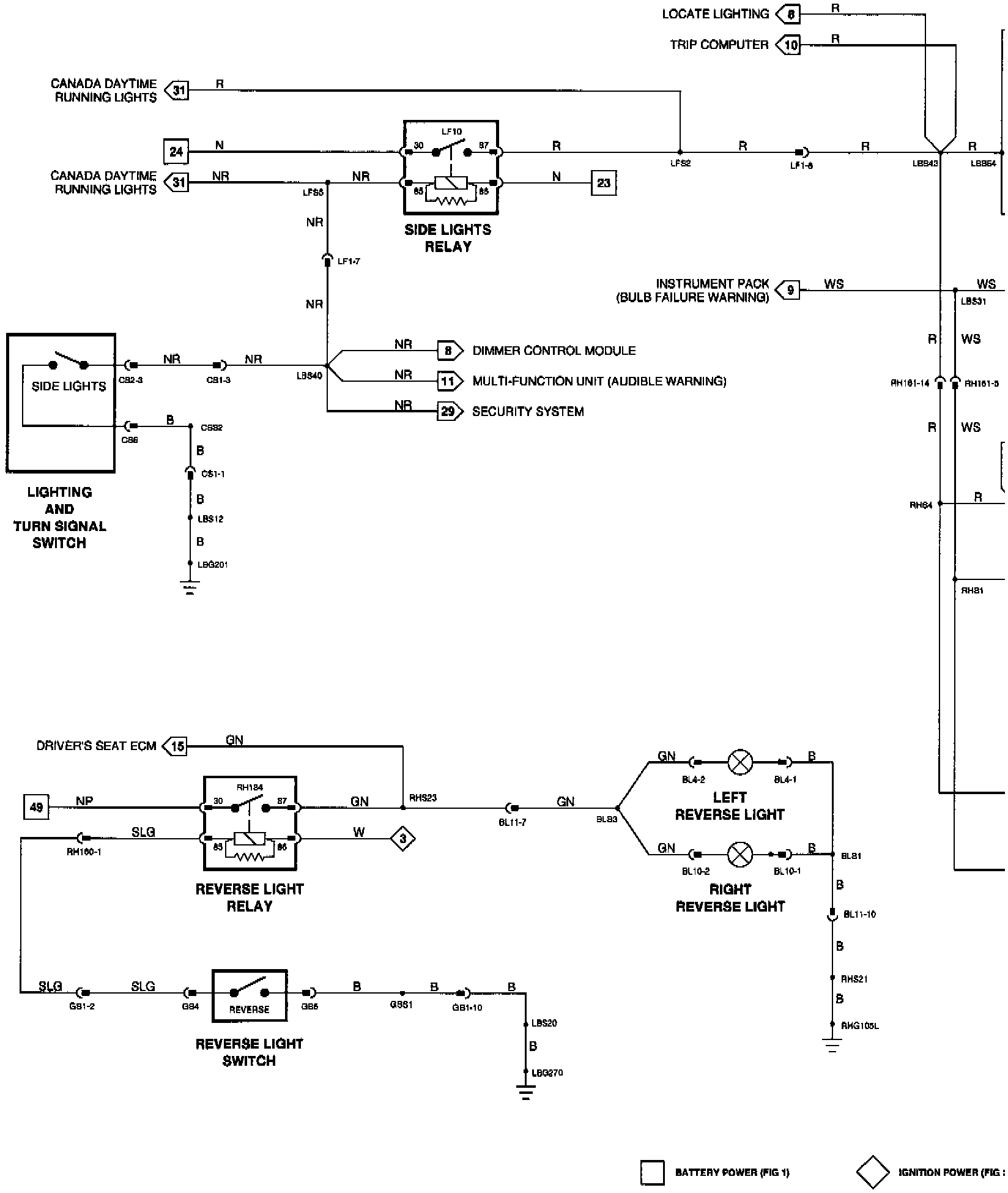

Wiring diagram
Components, connectors, grounds
