Jaguar
>>
1994
>>
XJ-12 (X300) V12-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

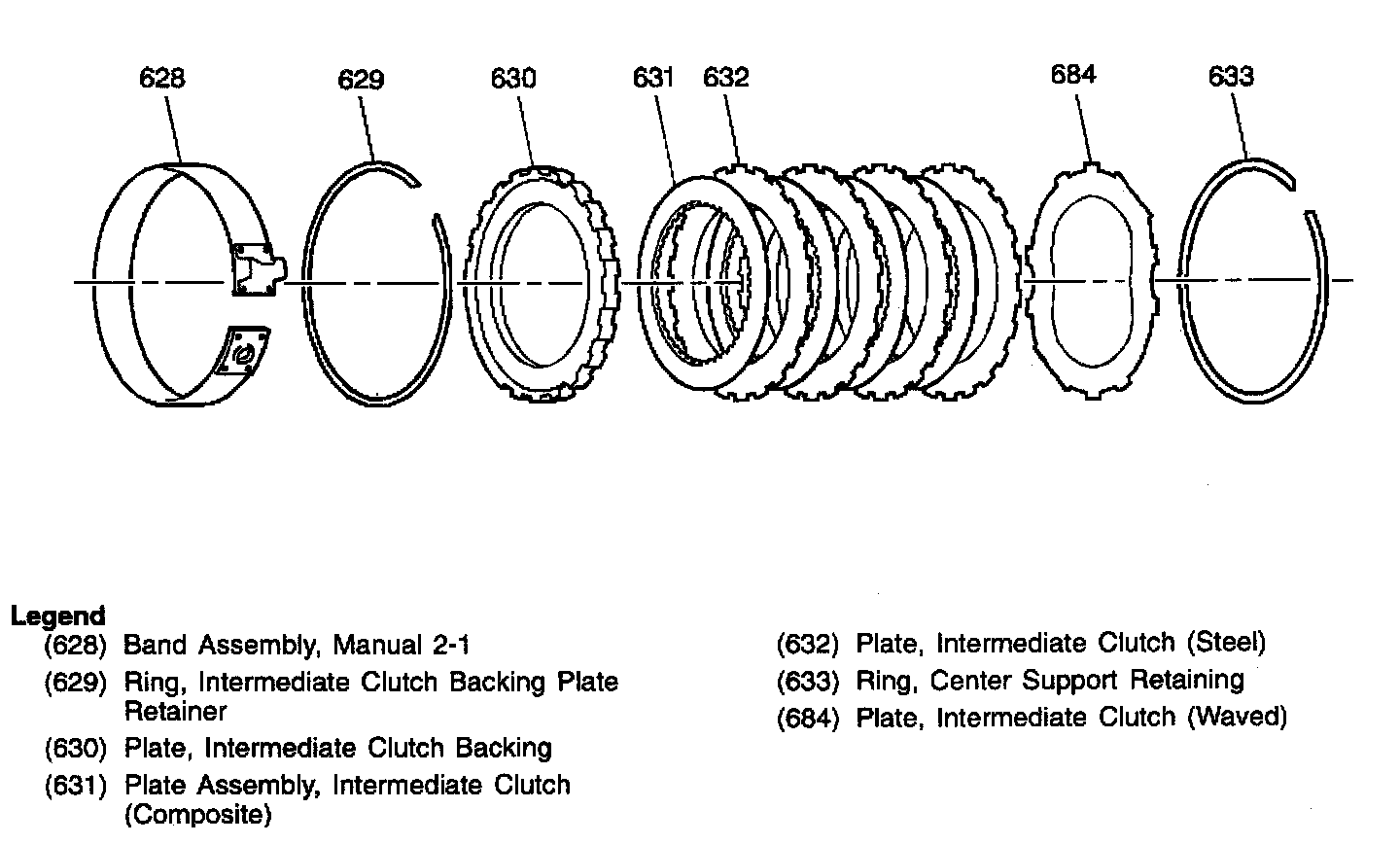

Intermediate Clutch Plates and Manual 2-1 Band Assembly
Intermediate Clutch Plates and Manual 2-1 Band Assembly
