Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
1994
>>
XJ-12 (X300) V12-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows
�Se!:

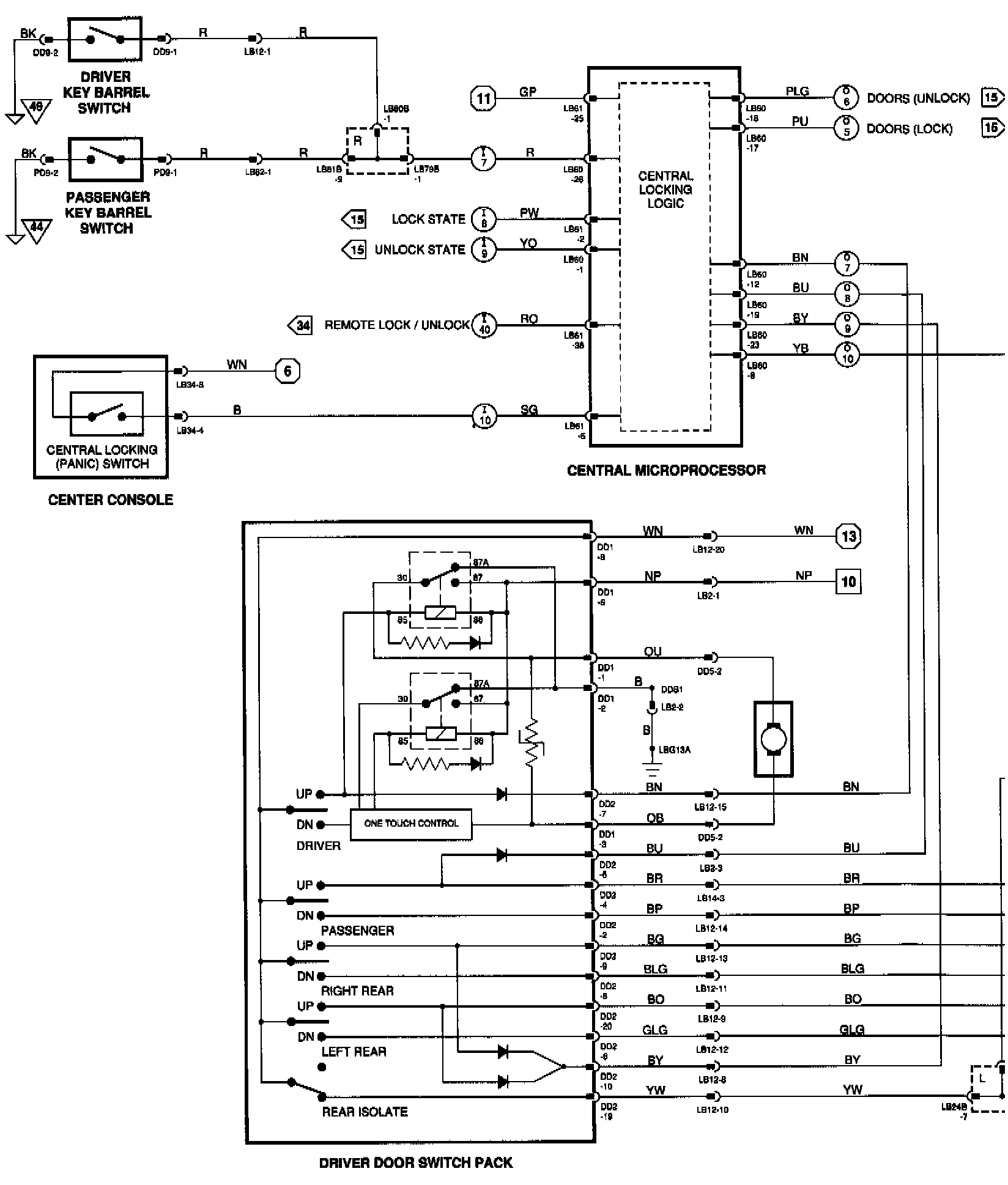

Wiring Diagram

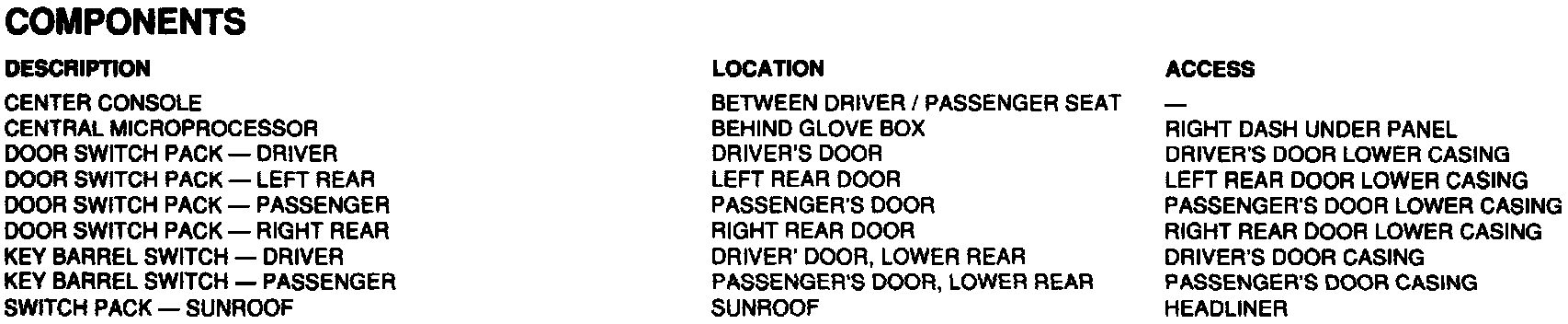

Components

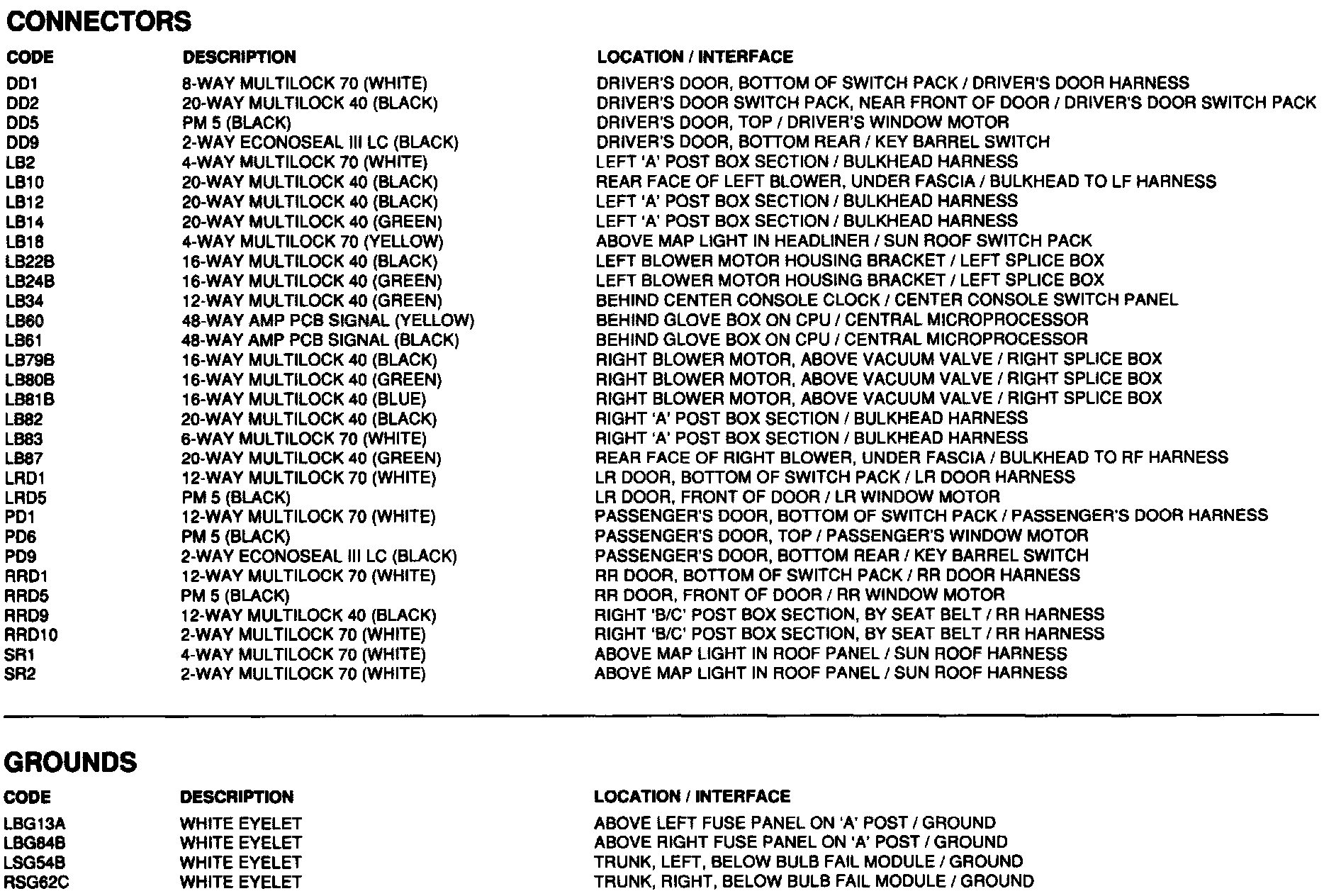

Connectors & Grounds

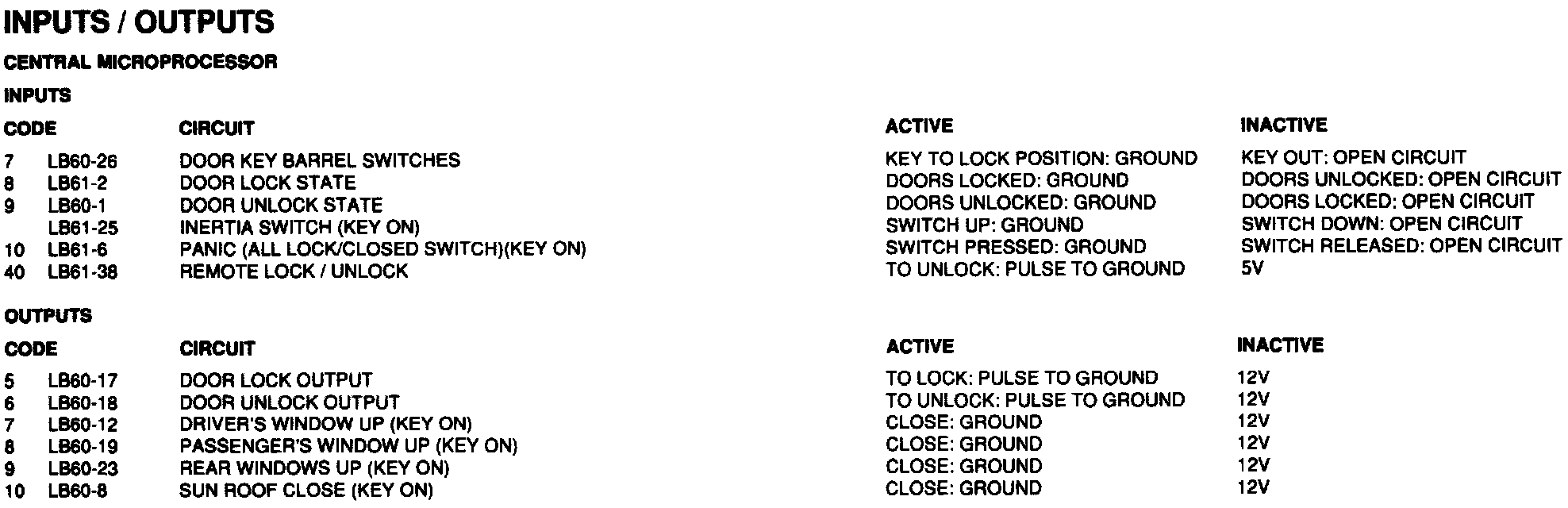

Inputs/Outputs
