Map Light
Map Light

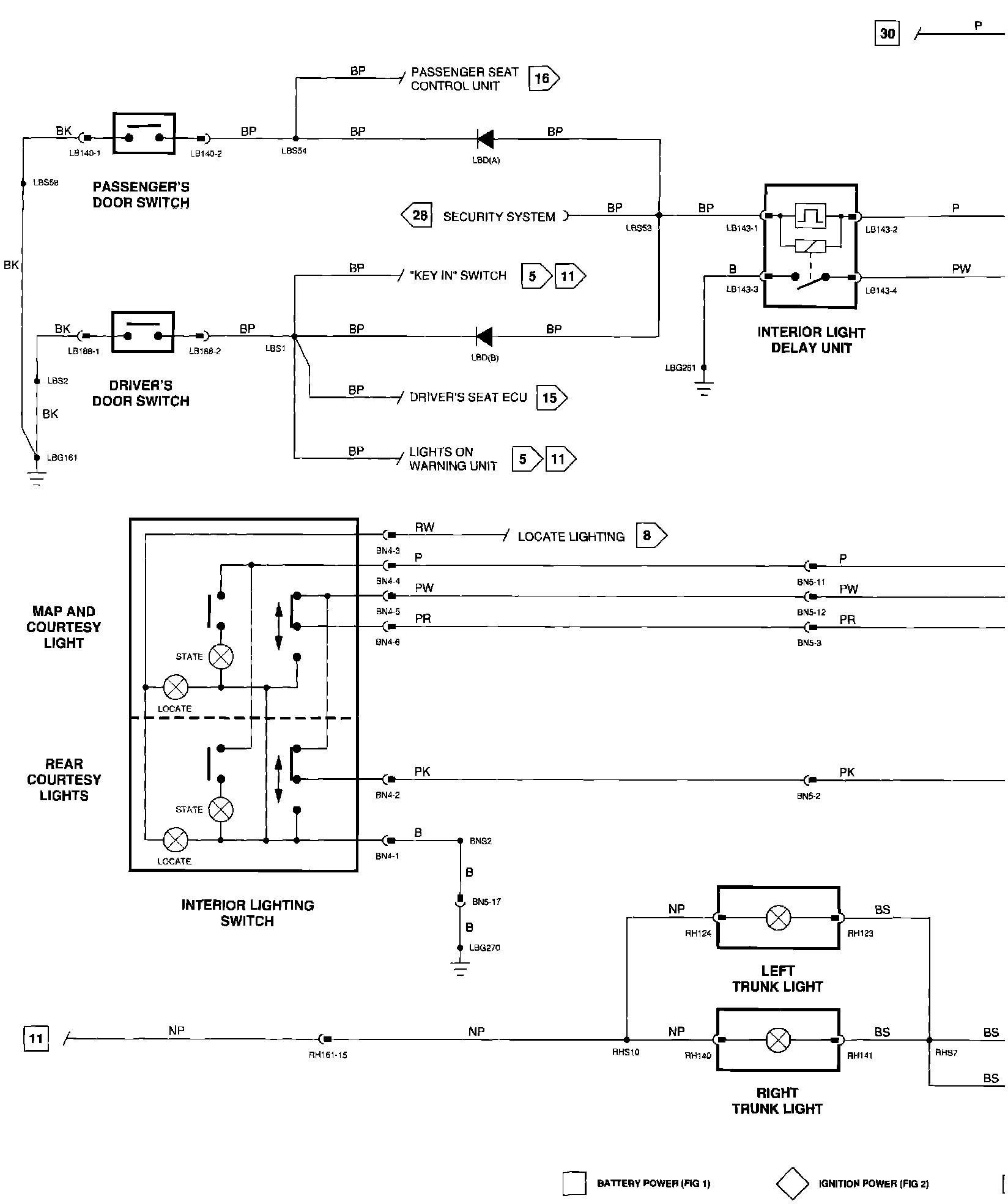

B�Interior & Trunk Lighting:
Wiring Diagram

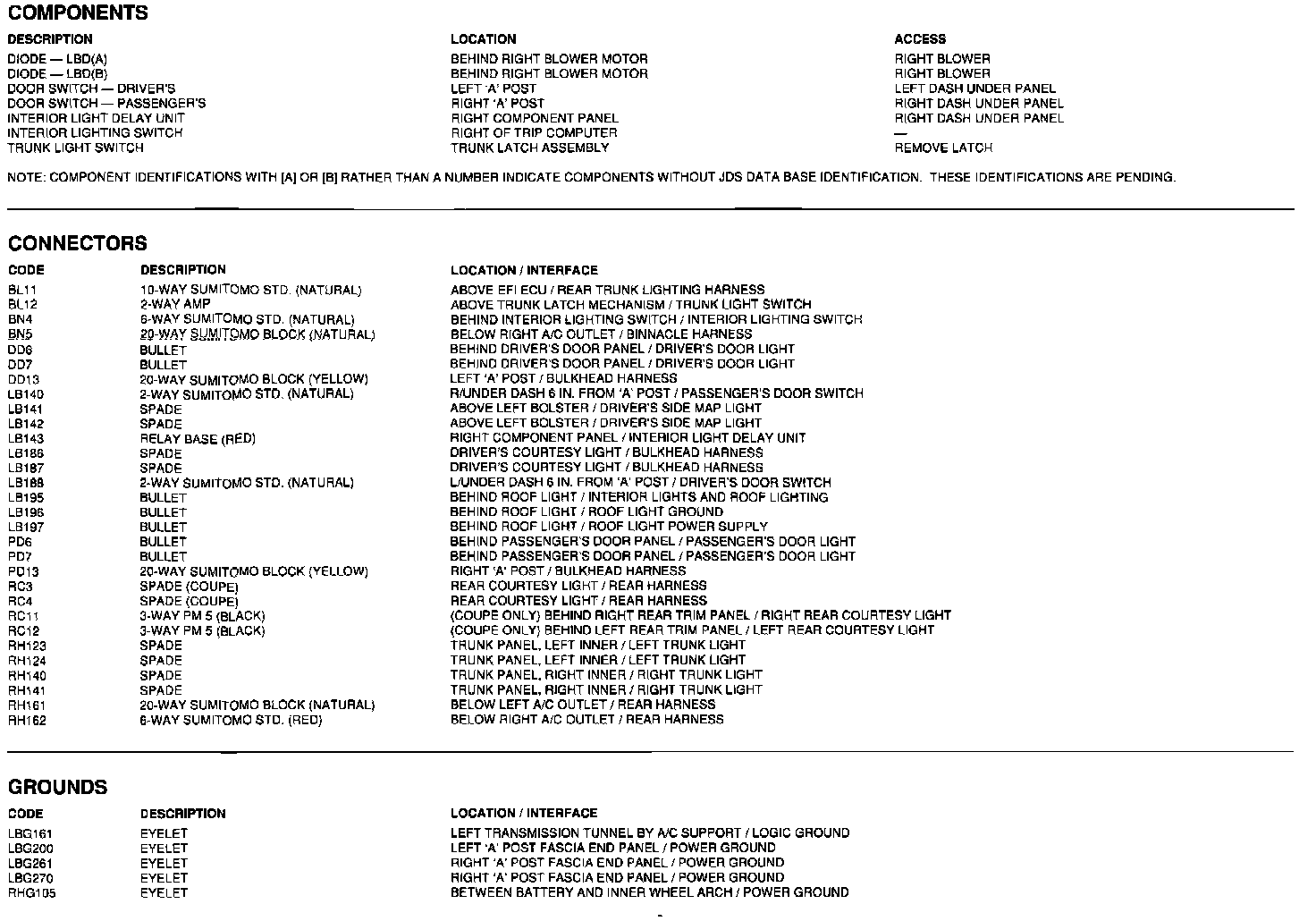

Components, Connectors, Grounds:
Components, connectors, grounds
