{�? Power Seat, Power Mirrors:

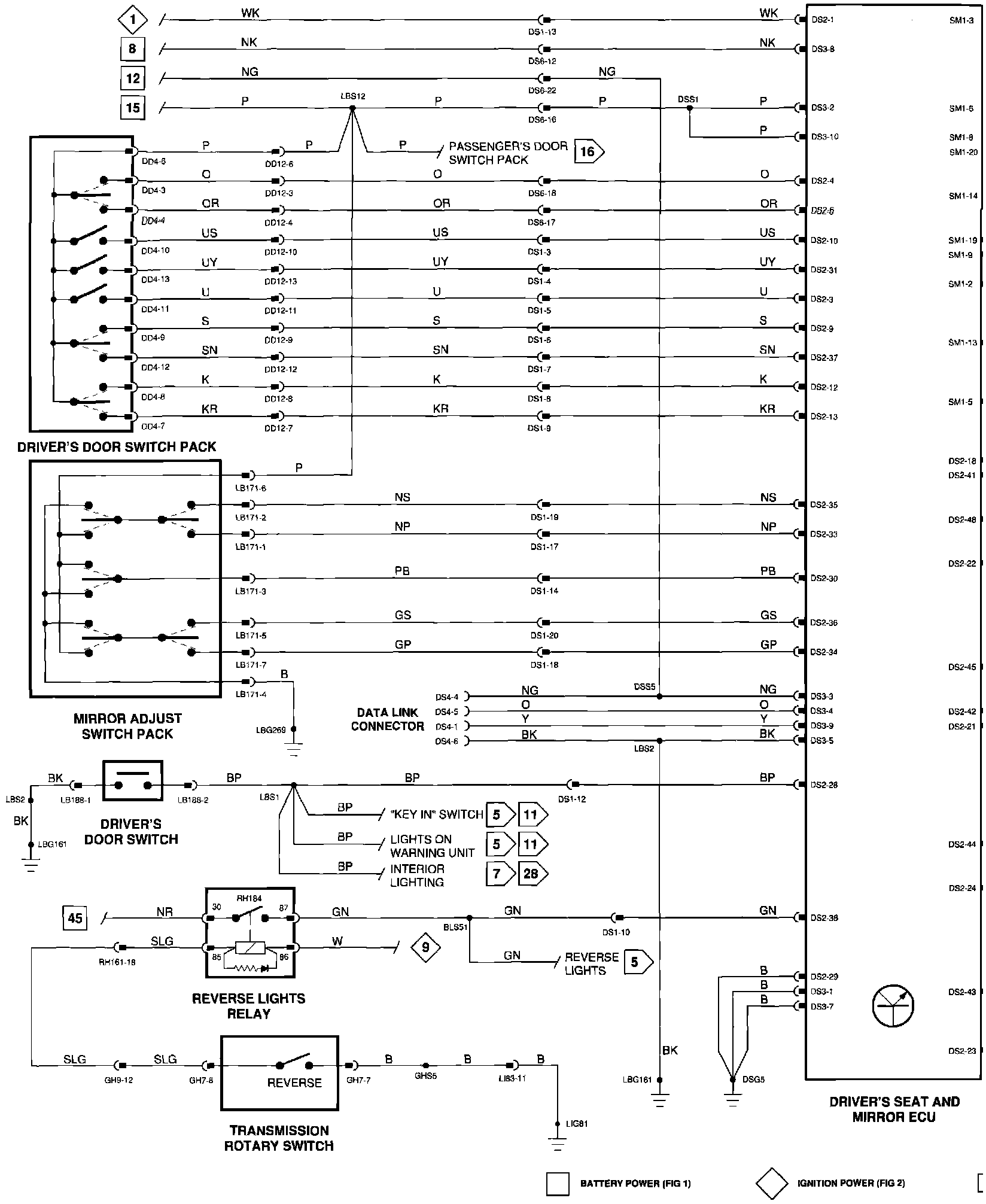

Wiring Diagram

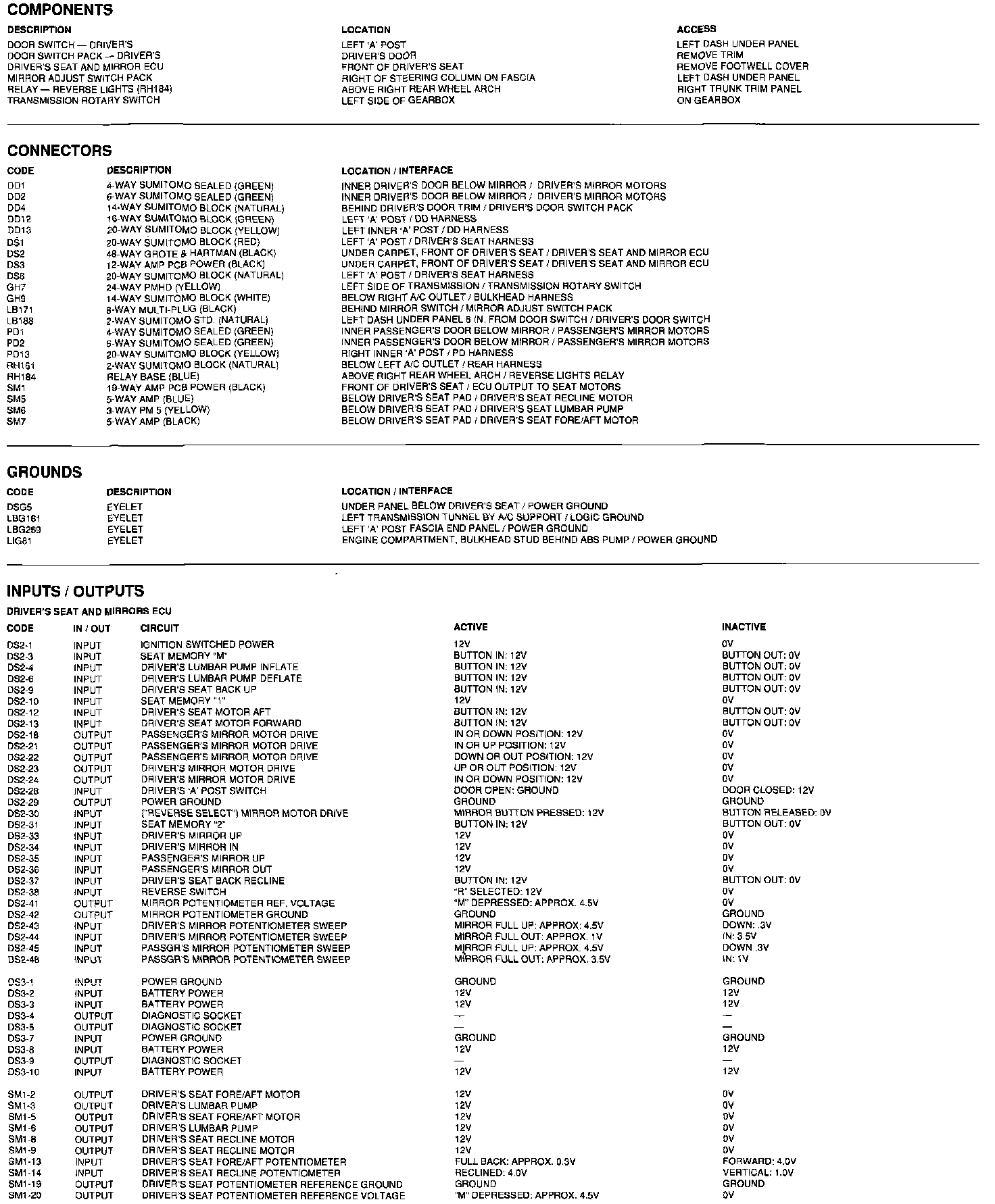

Components, Connectors, Grounds, Inputs/Outputs:
Components, connectors, grounds, inputs/outputs
