Luggage Compartment Ventilator Outlet

Luggage Compartment Ventilator Outlet





- Disconnect battery earth lead.
- Remove the rear lamp interior cover.
- Displace the luggage compartment side trim.

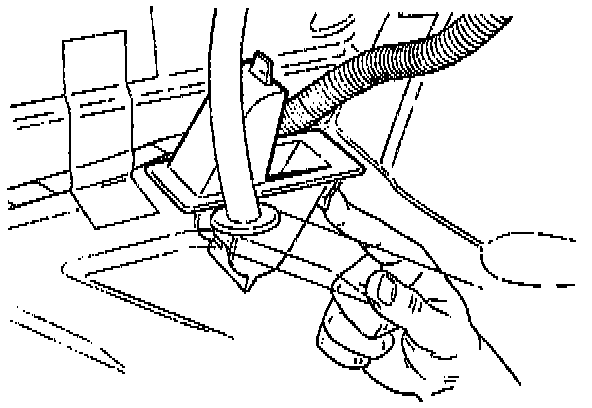

- From the underside of the vehicle and inside exhaust aperture, release the ventilator securing tang.
- Remove the ventilator outlet into the luggage compartment.

NOTE: Installation is the reverse of this procedure. A new gasket should be installed.
