Home
>>
Jaguar
>>
1993
>>
XJ-6 L6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Passenger Seat
>>
Memory
Memory

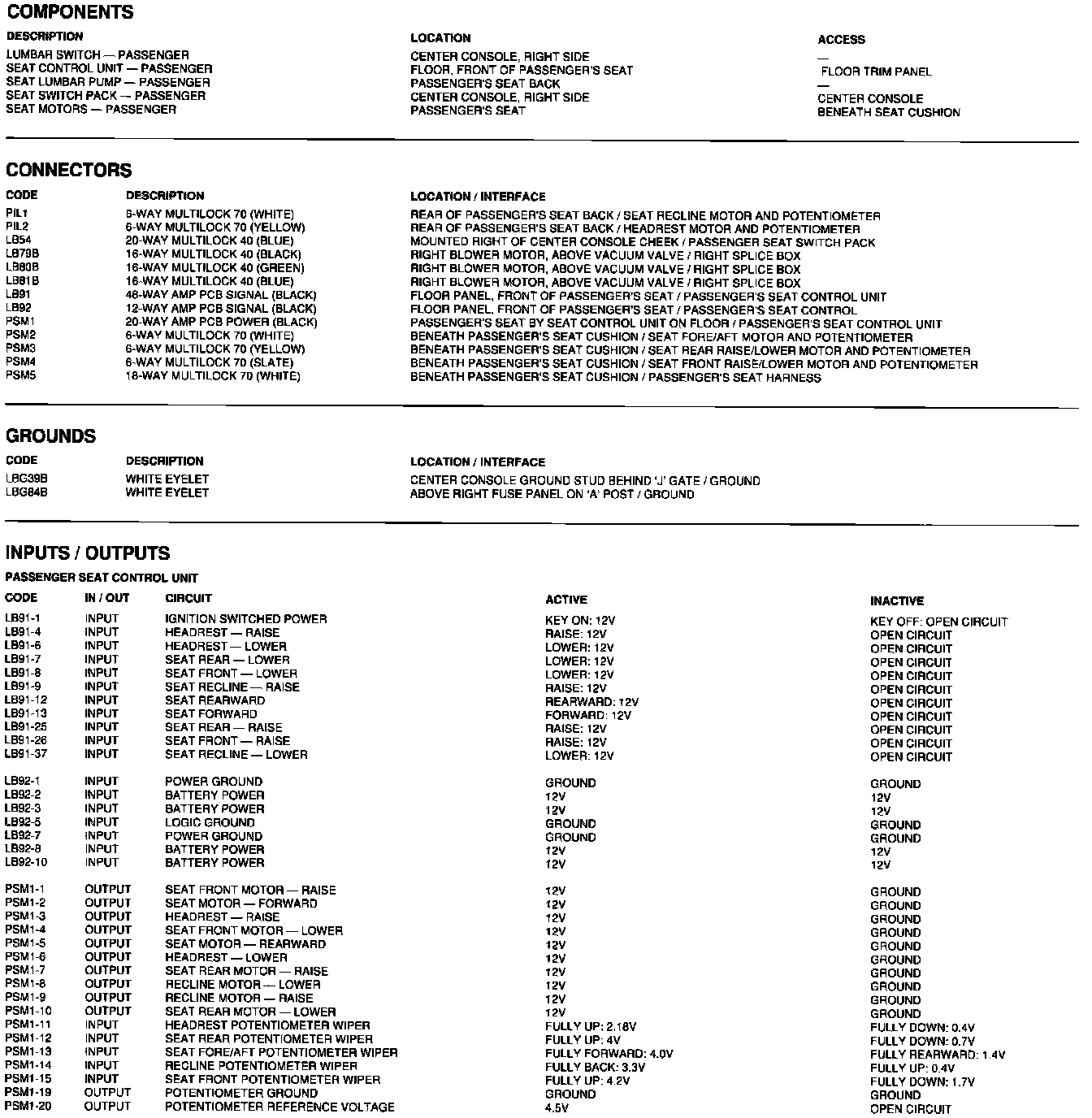

Components, connectors, grounds, inputs/outputs
�d�":

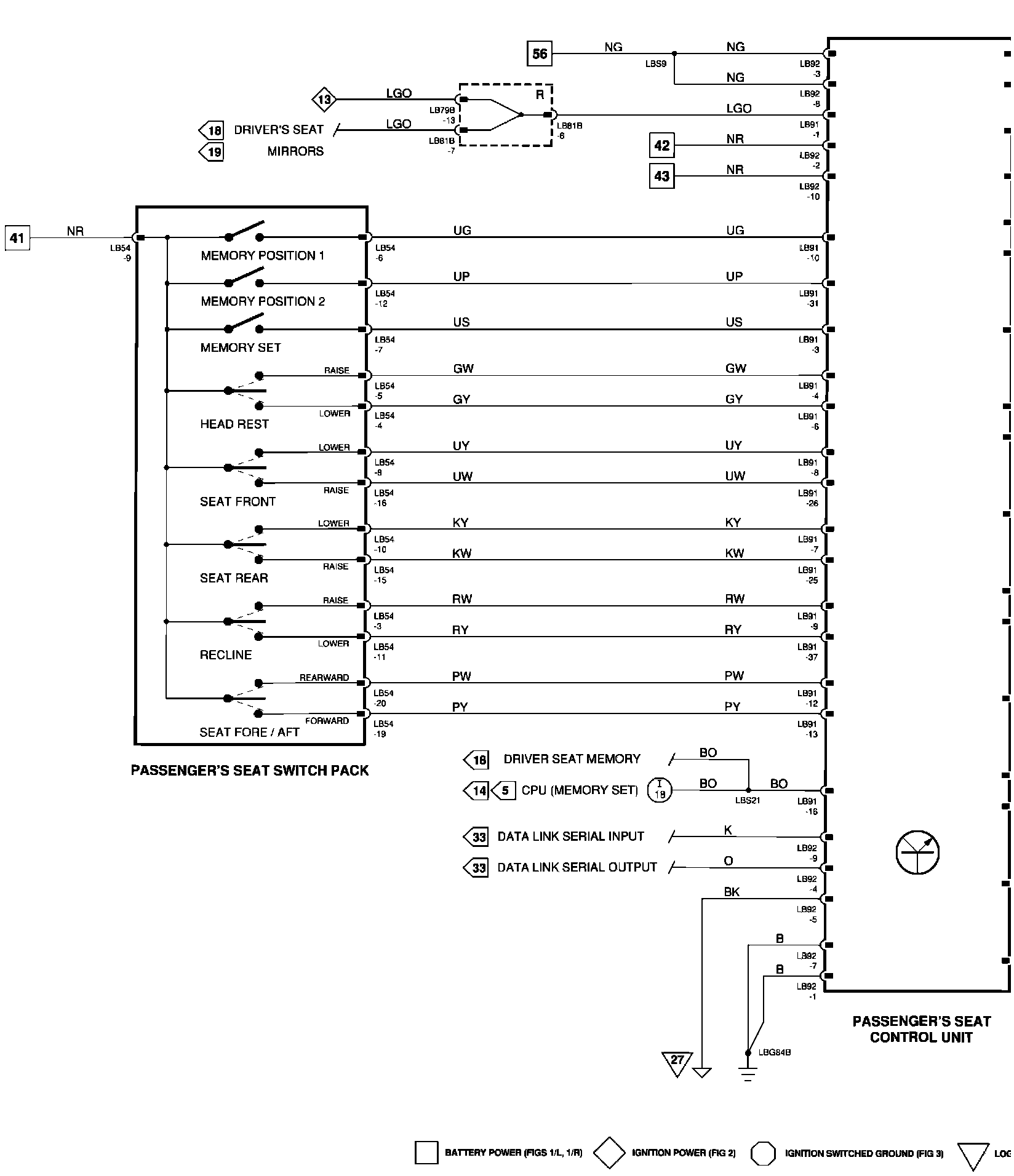

Wiring Diagram
