Home
>>
Jaguar
>>
1993
>>
XJ-6 L6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
Heated Glass Element
�V� :

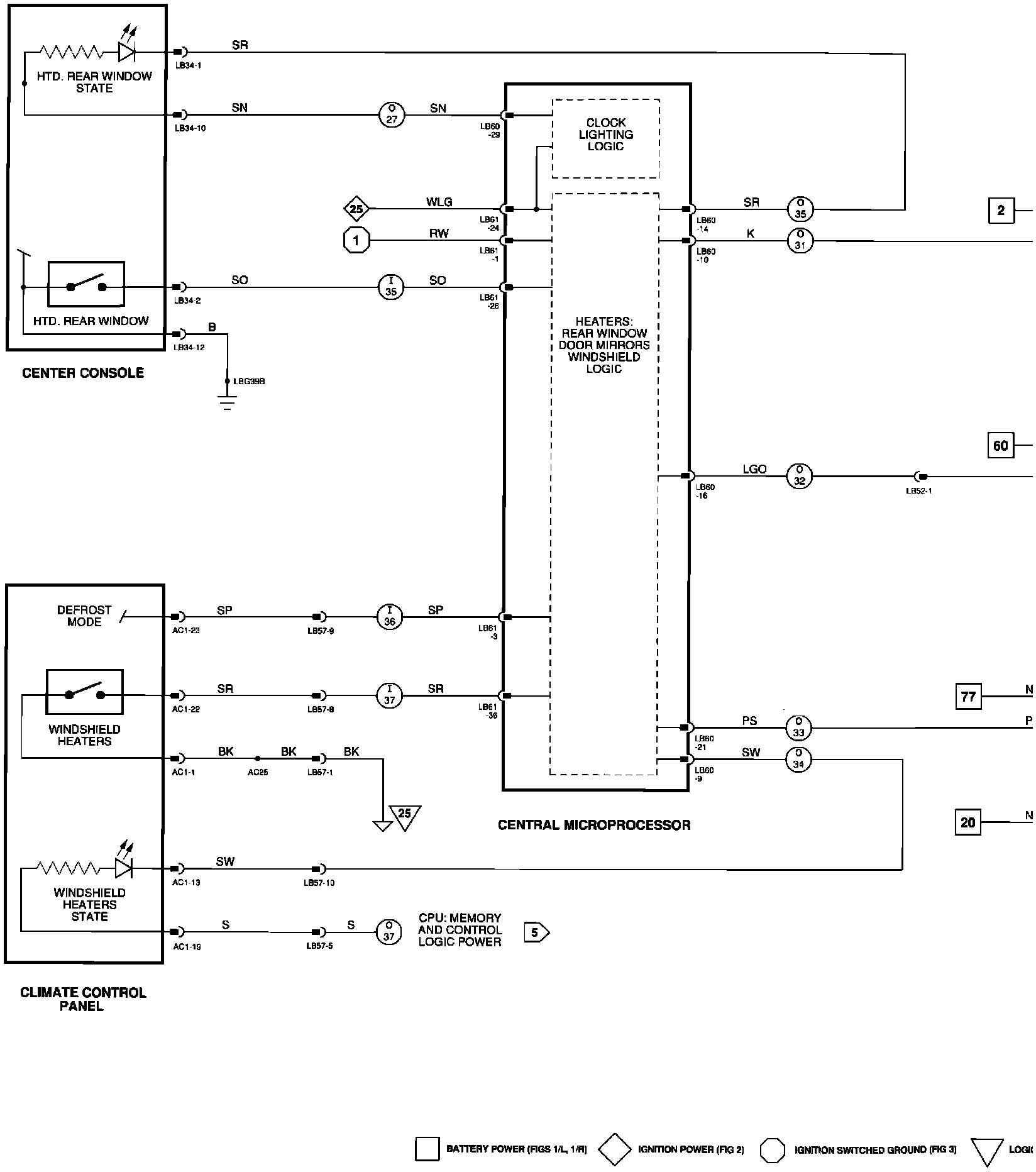

Wiring Diagram
Components, connectors, grounds, inputs/outputs
