Fog/Driving Lamp
Fog/Driving Lamp
���$:

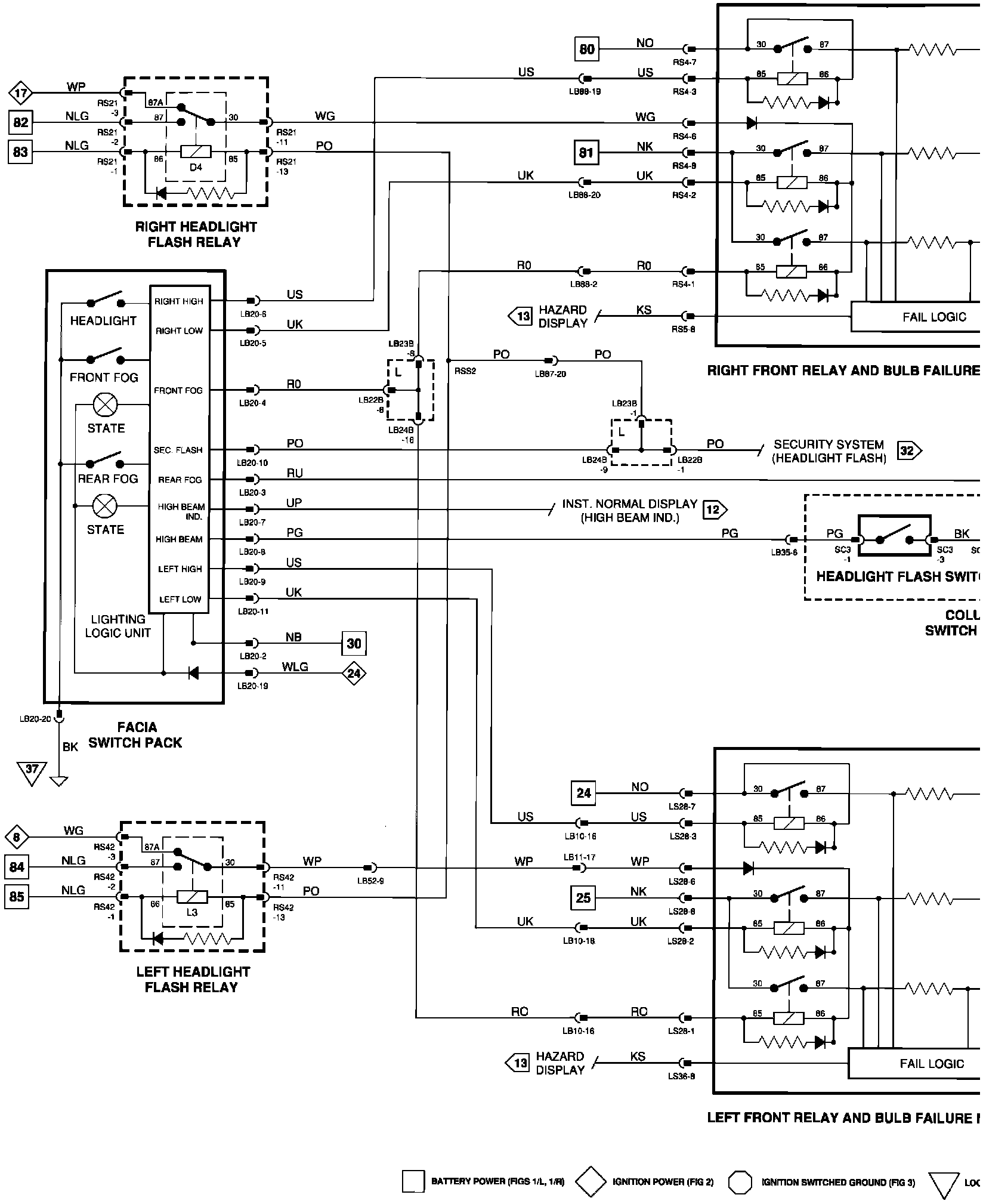

Wiring Diagram

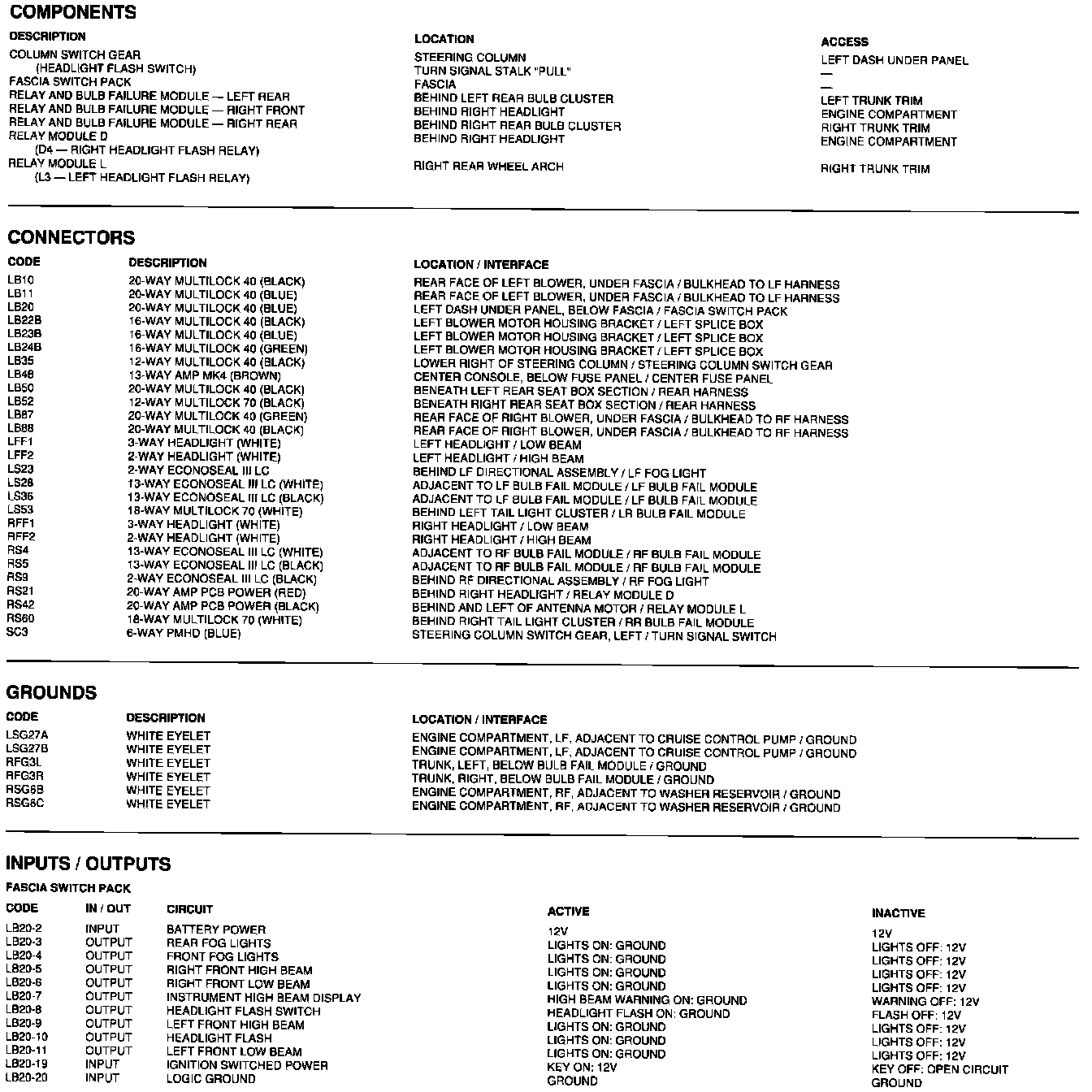

Components, connectors, grounds, inputs/outputs
