Jaguar
>>
1993
>>
XJ-6 L6-4.0L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
XW�#:

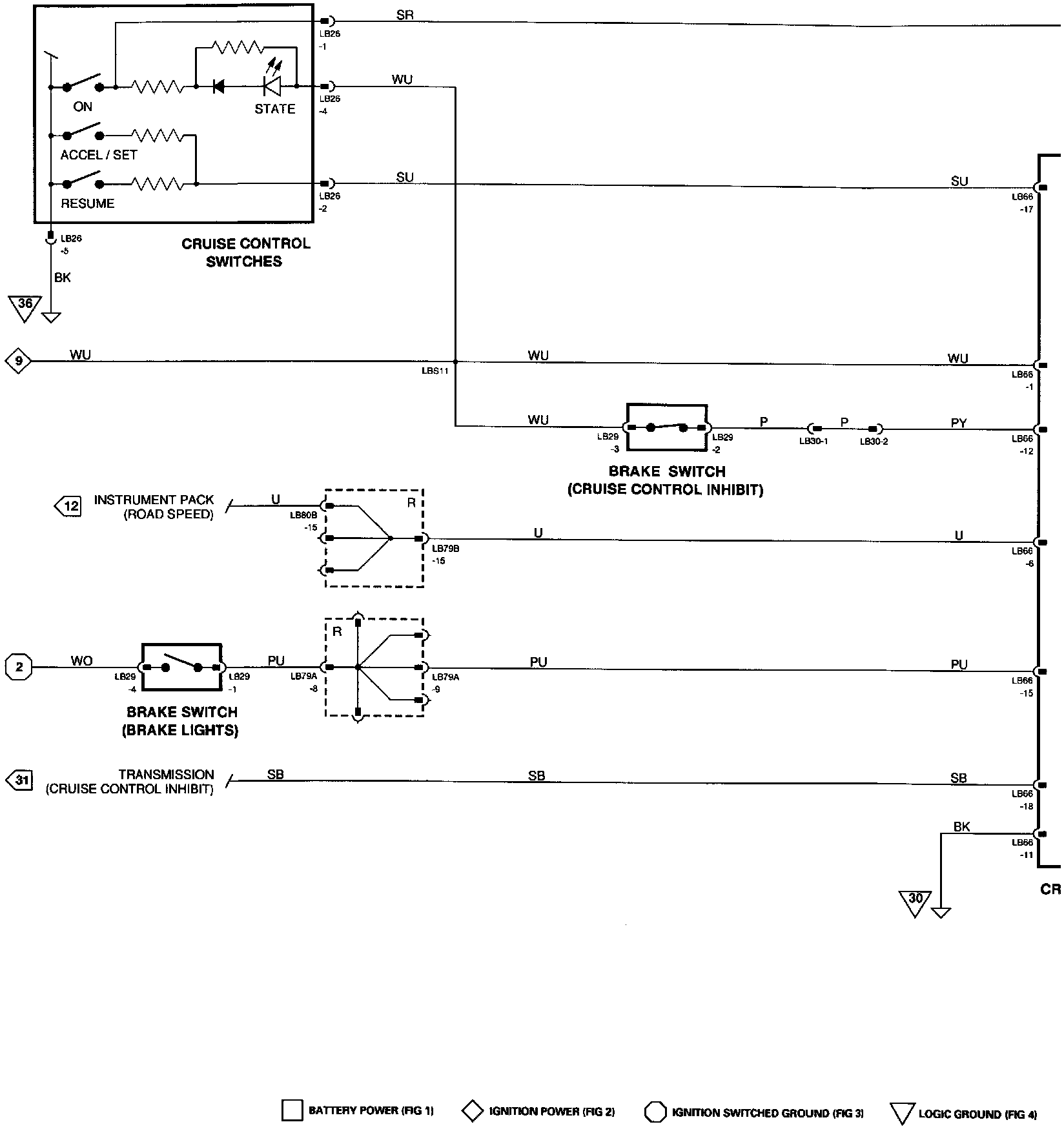

Wiring Diagram

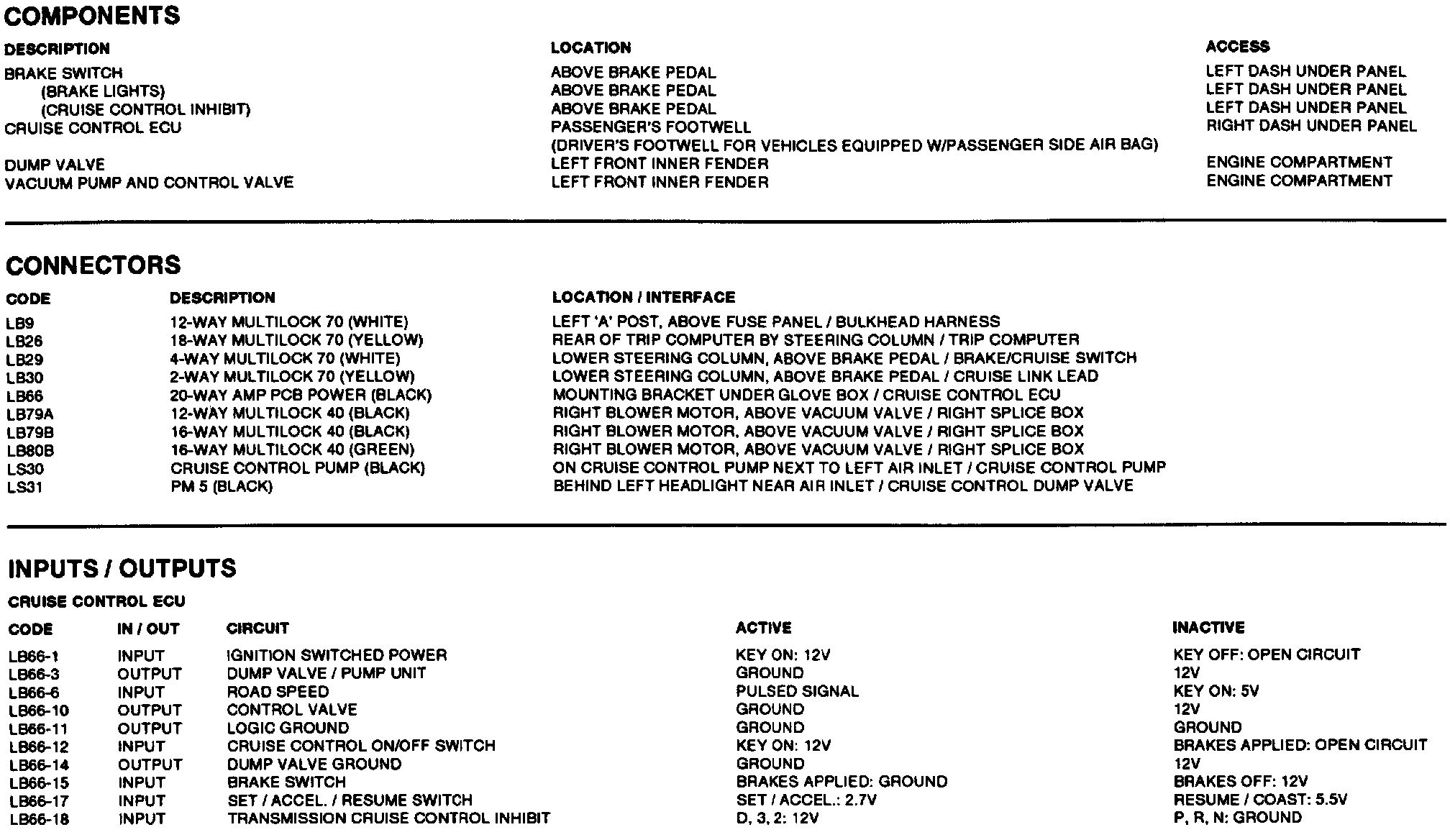

Components, connectors, grounds, inputs/outputs
