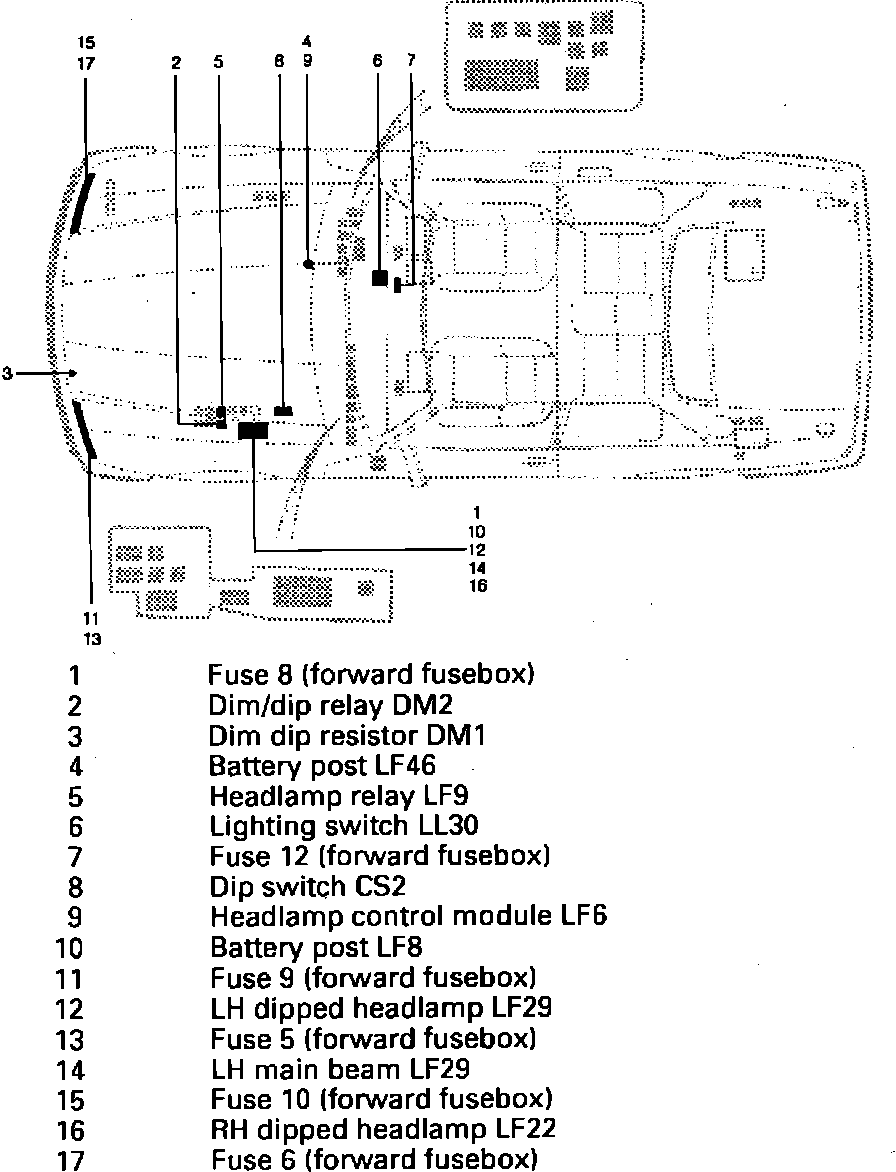

Headlamp Control Module: Locations

Headlamps, Dim/dip:




RH Side Engine Compartment Near Battery Connection
