Trip Computer

��Trip Computer:

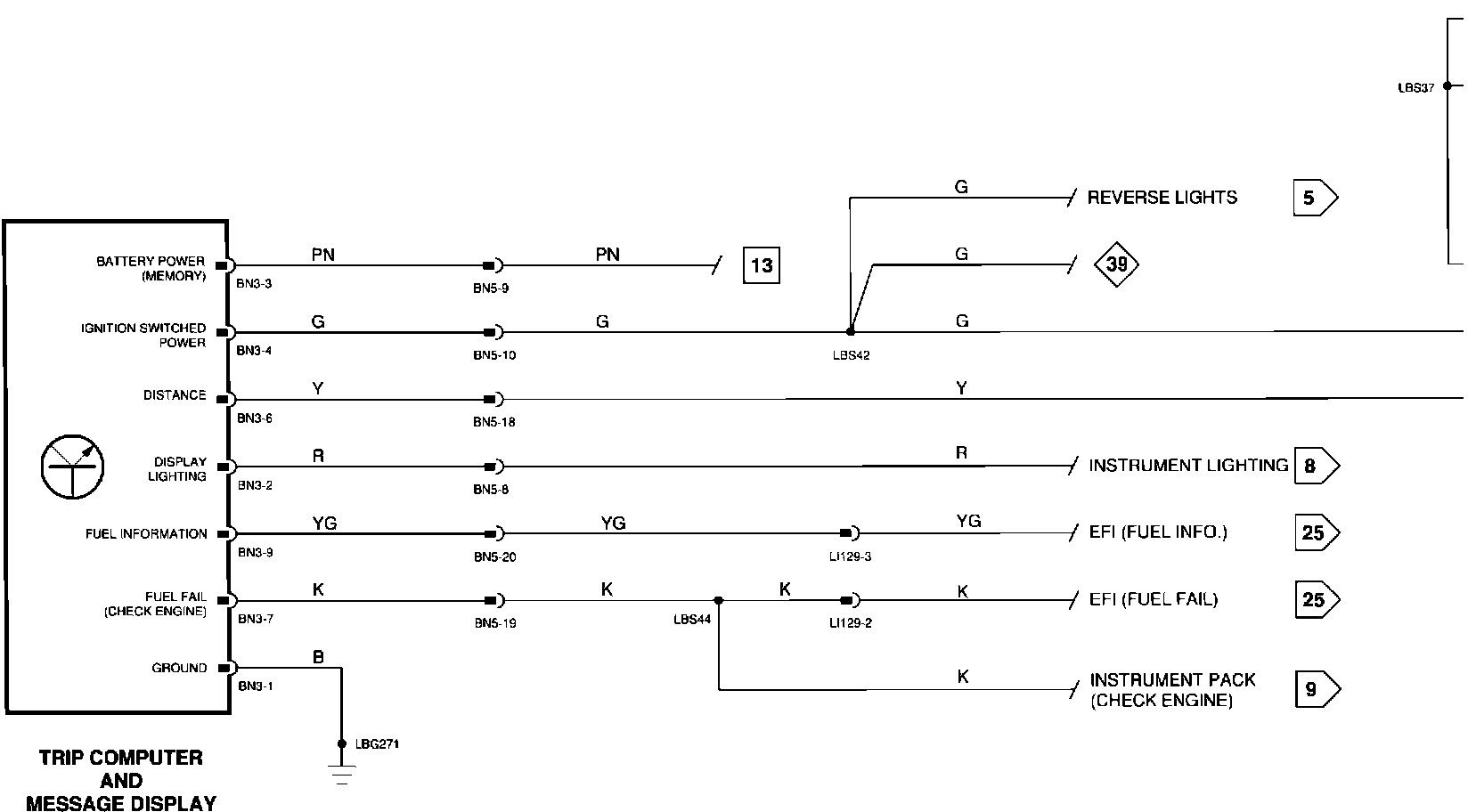

Wiring Diagram

Trip Computer:

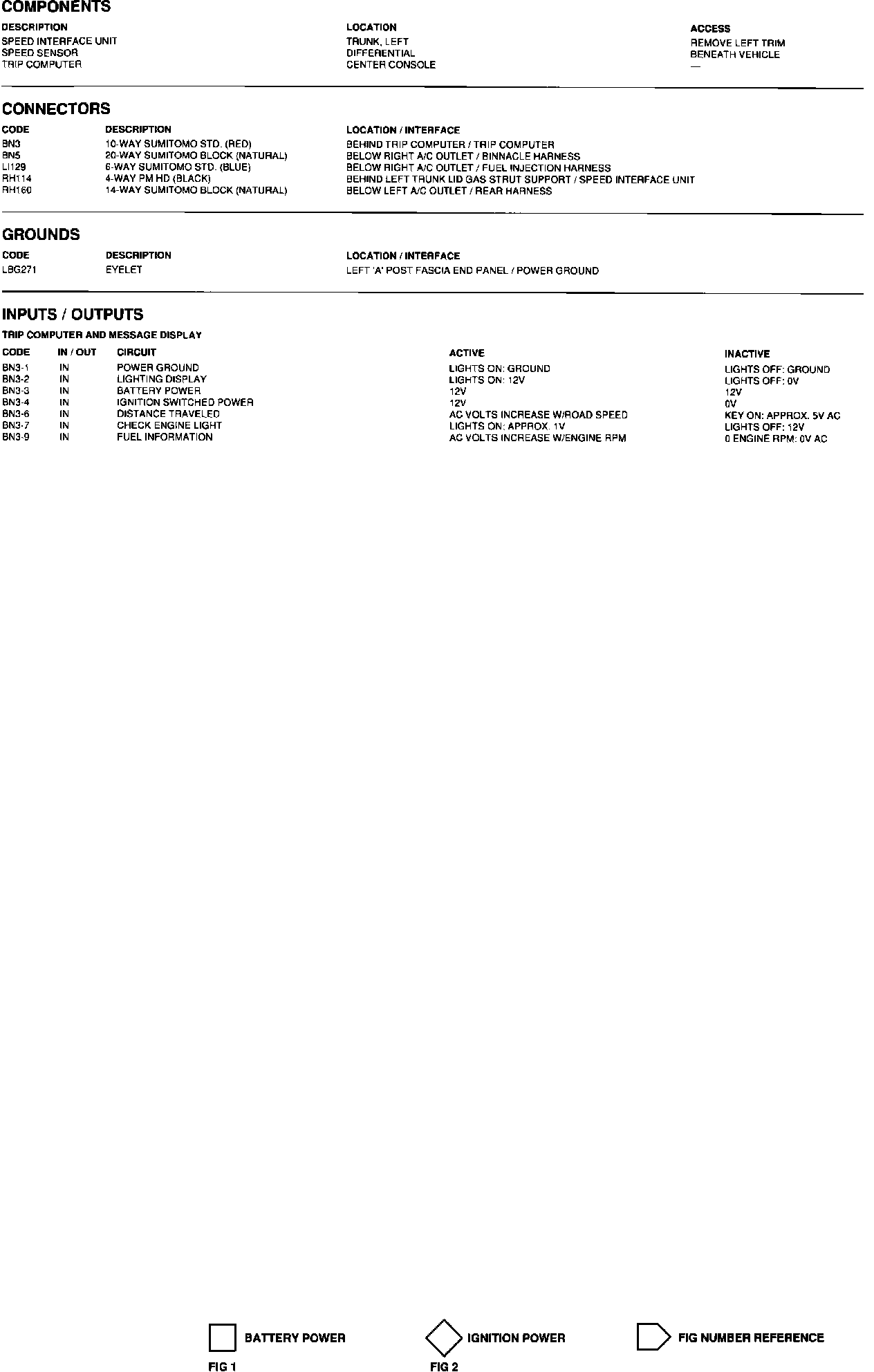

Component, connectors, grounds, inputs/outputs
