Jaguar
>>
1992
>>
XJ-S V12-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
Heated Glass Element
Yw� Rear Window & Mirror Heaters:

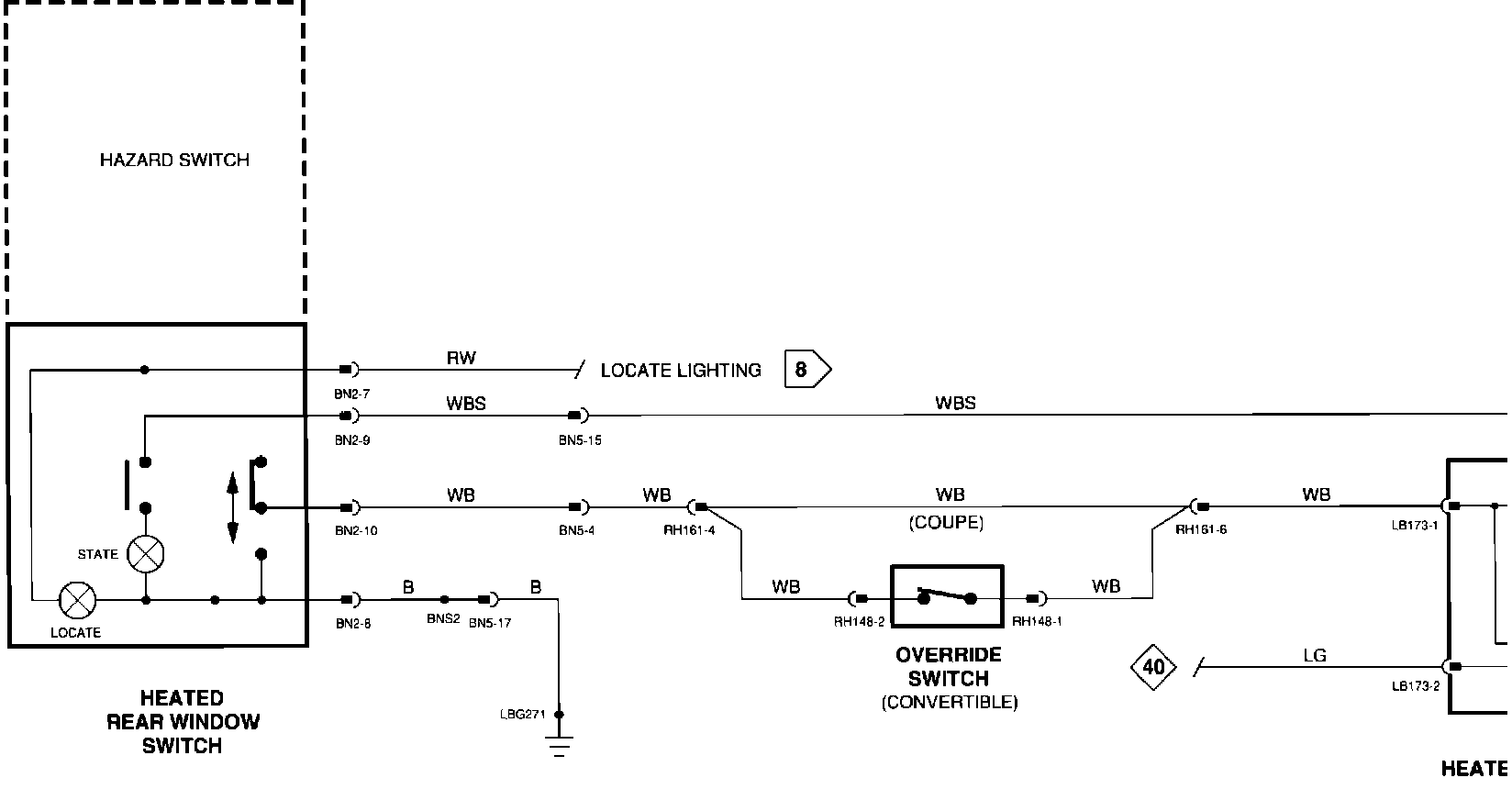

Wiring Diagram
Rear Window & Mirror Heaters:
Component, connectors, grounds
