Headlamp
Headlamp
Headlights / Fog Lights:
Component Location

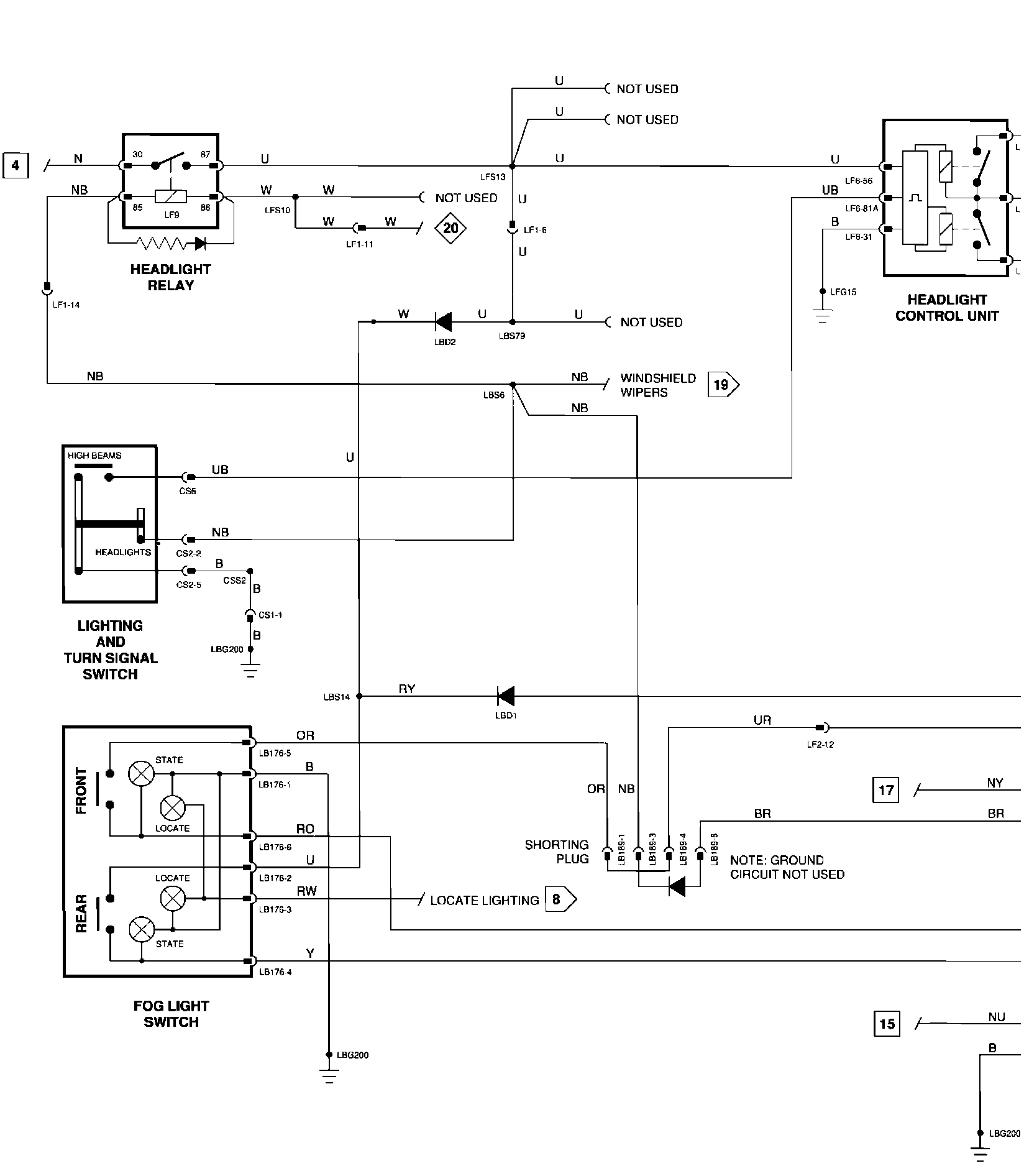

���$Headlights / Fog Lights:
Wiring Diagram
