Fig. 11
Fig. 11
���#Audible Warnings:

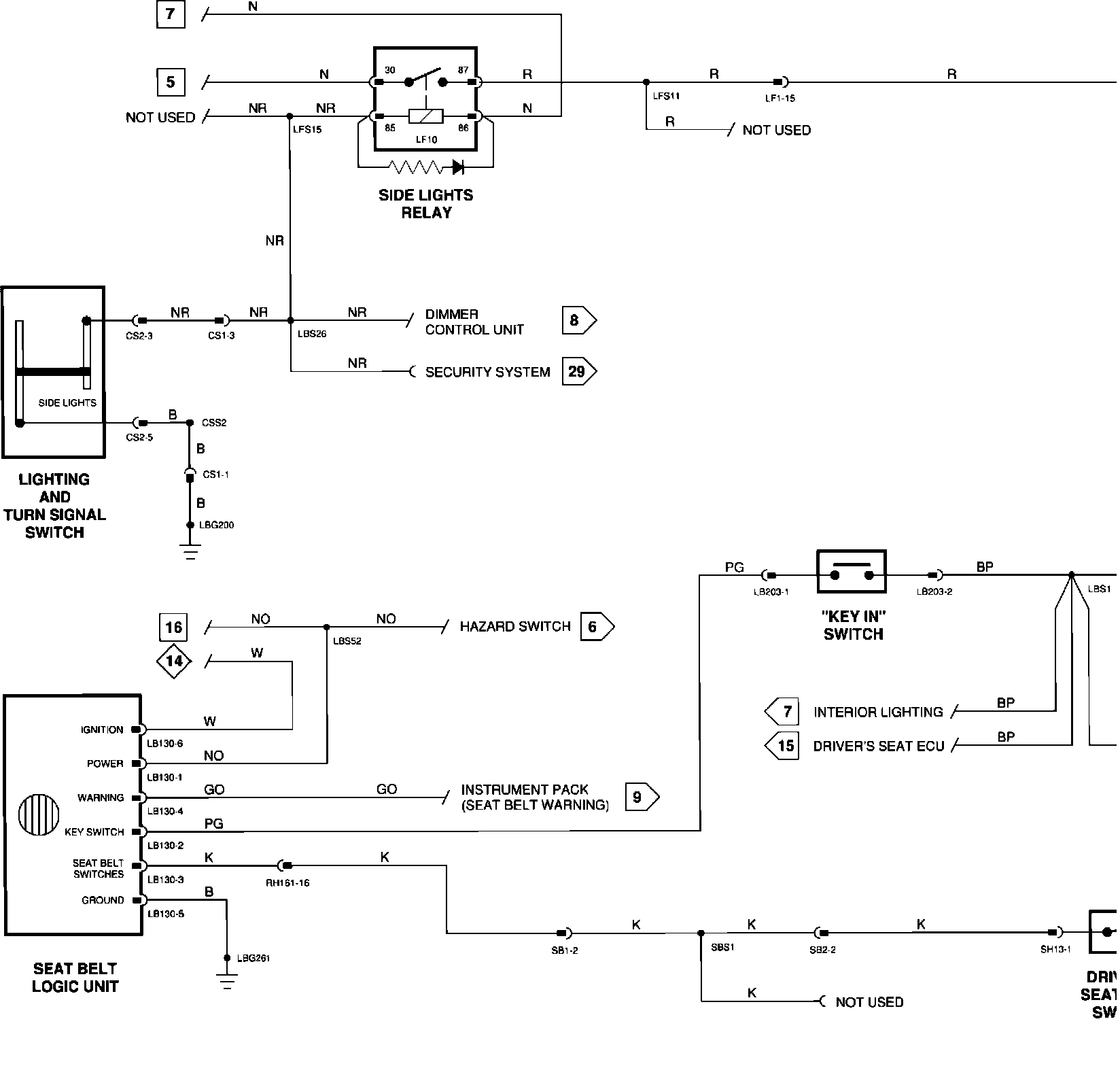

Wiring Diagram
Audible Warnings:
Component, connectors, grounds, inputs/outputs
