Bowl Vent Solenoid: Service and Repair

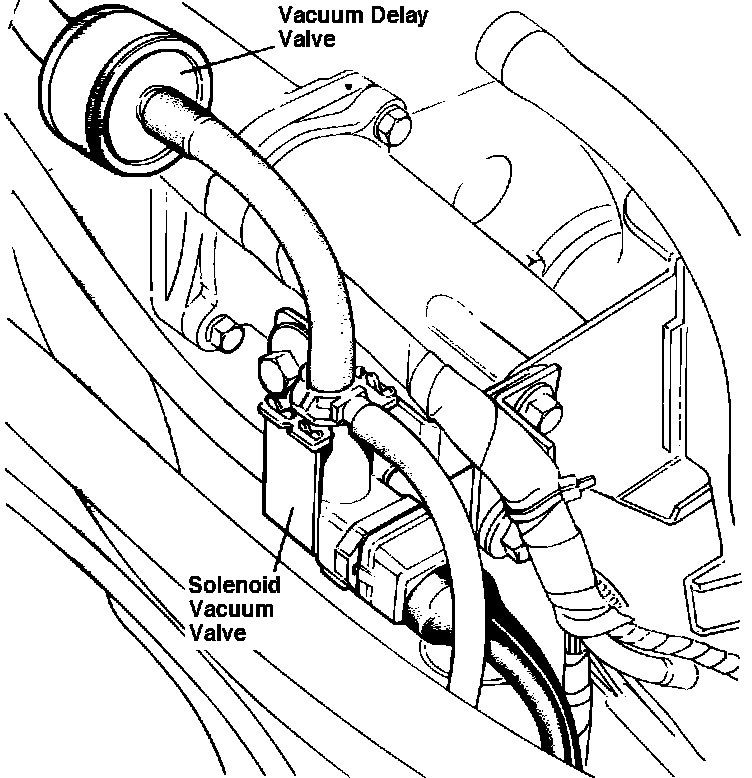

Fig. 20 Solenoid Vacuum Valve:

1. Note locations of vacuum lines, and remove from solenoid vacuum valve.
2. Disconnect solenoid vacuum valve wiring connector.
3. Remove hardware holding valve and remove valve from vehicle.
4. Reverse procedures to install valve.
