Home
>>
Jaguar
>>
1992
>>
Sovereign L6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems
�-�Passive Restraint:

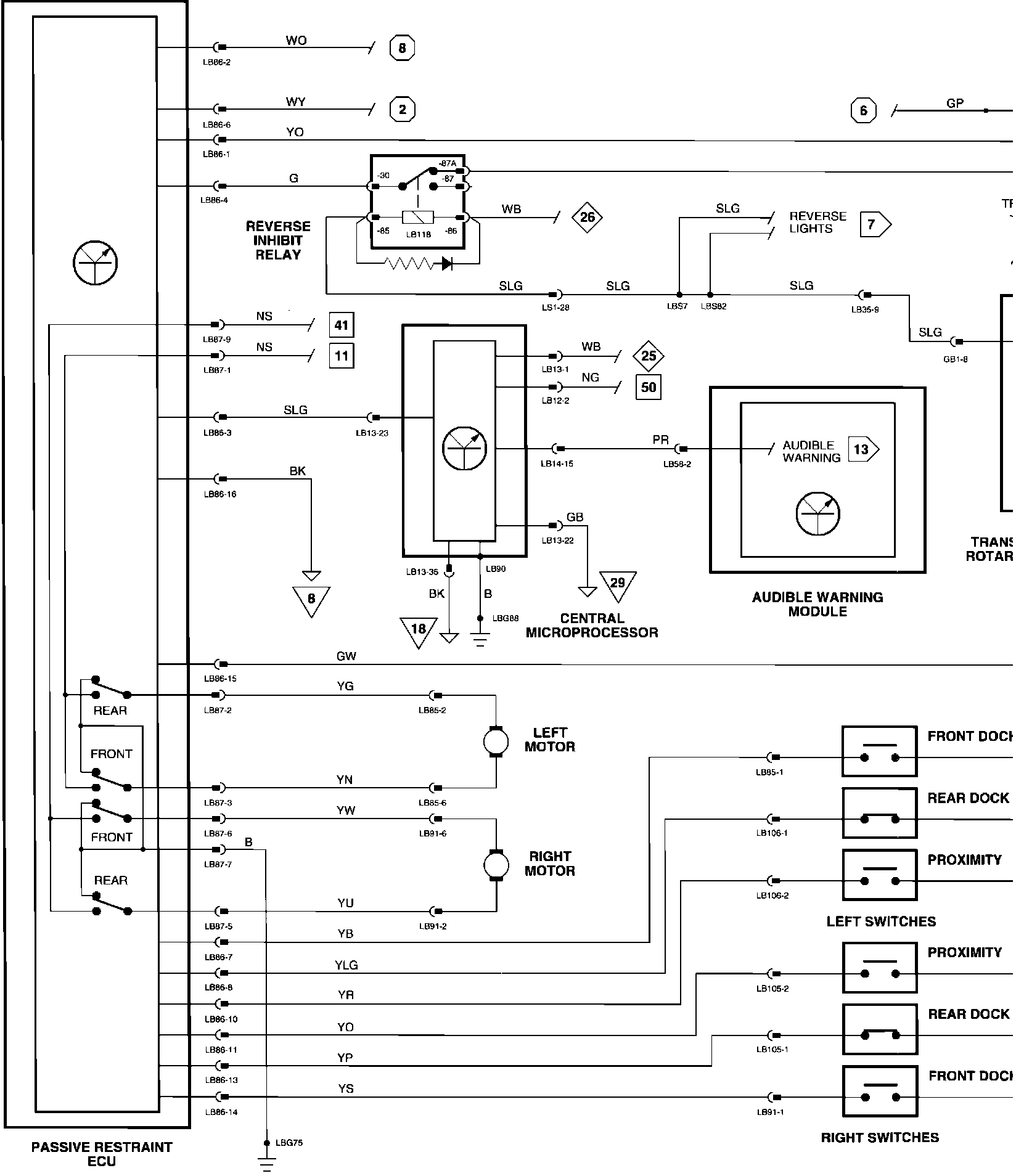

Wiring Diagram
Passive Restraint:
Component Location
