Jaguar
>>
1991
>>
XJ-S V12-5.3L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

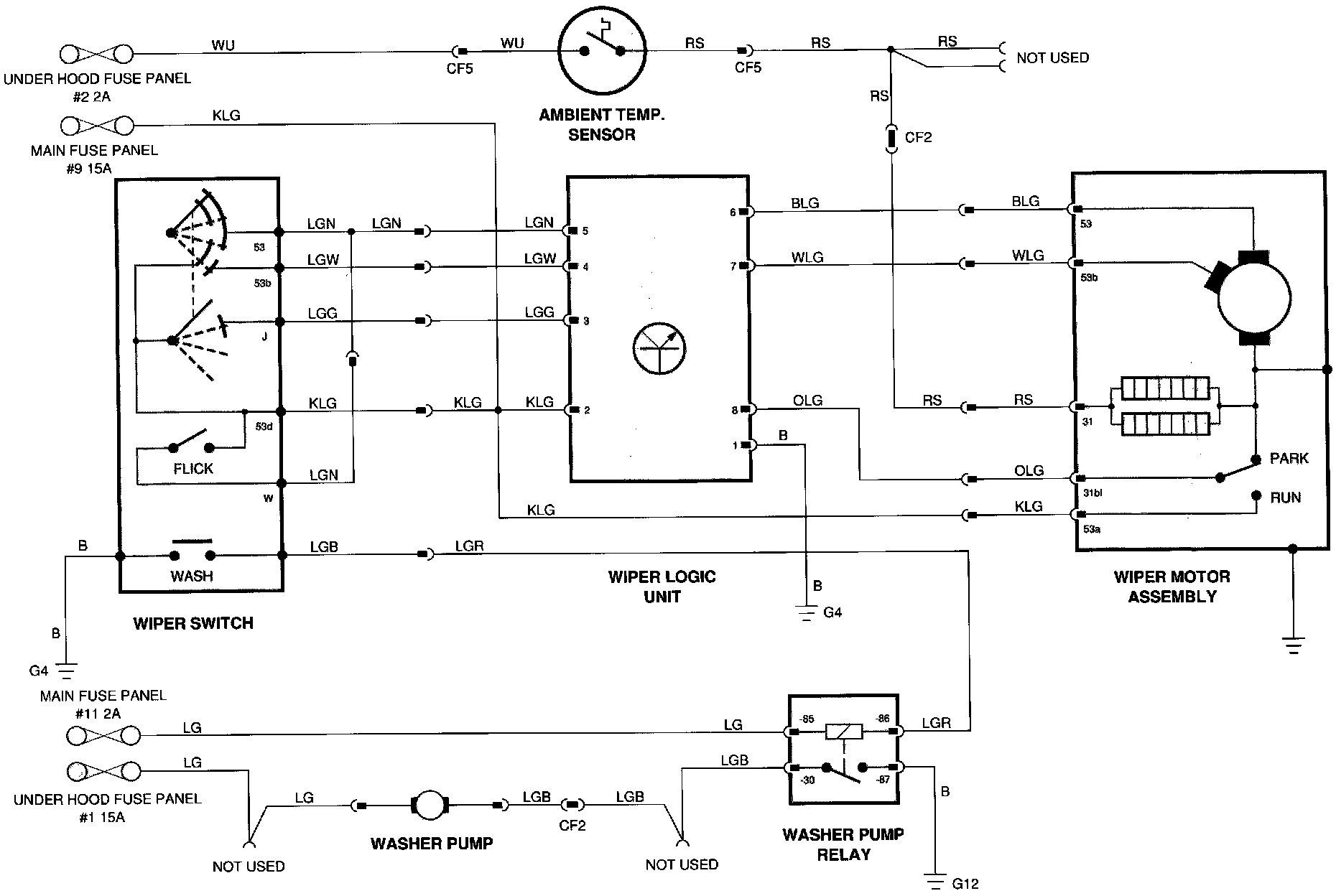

Windshield Wipers & Washers:
Wiring Diagram

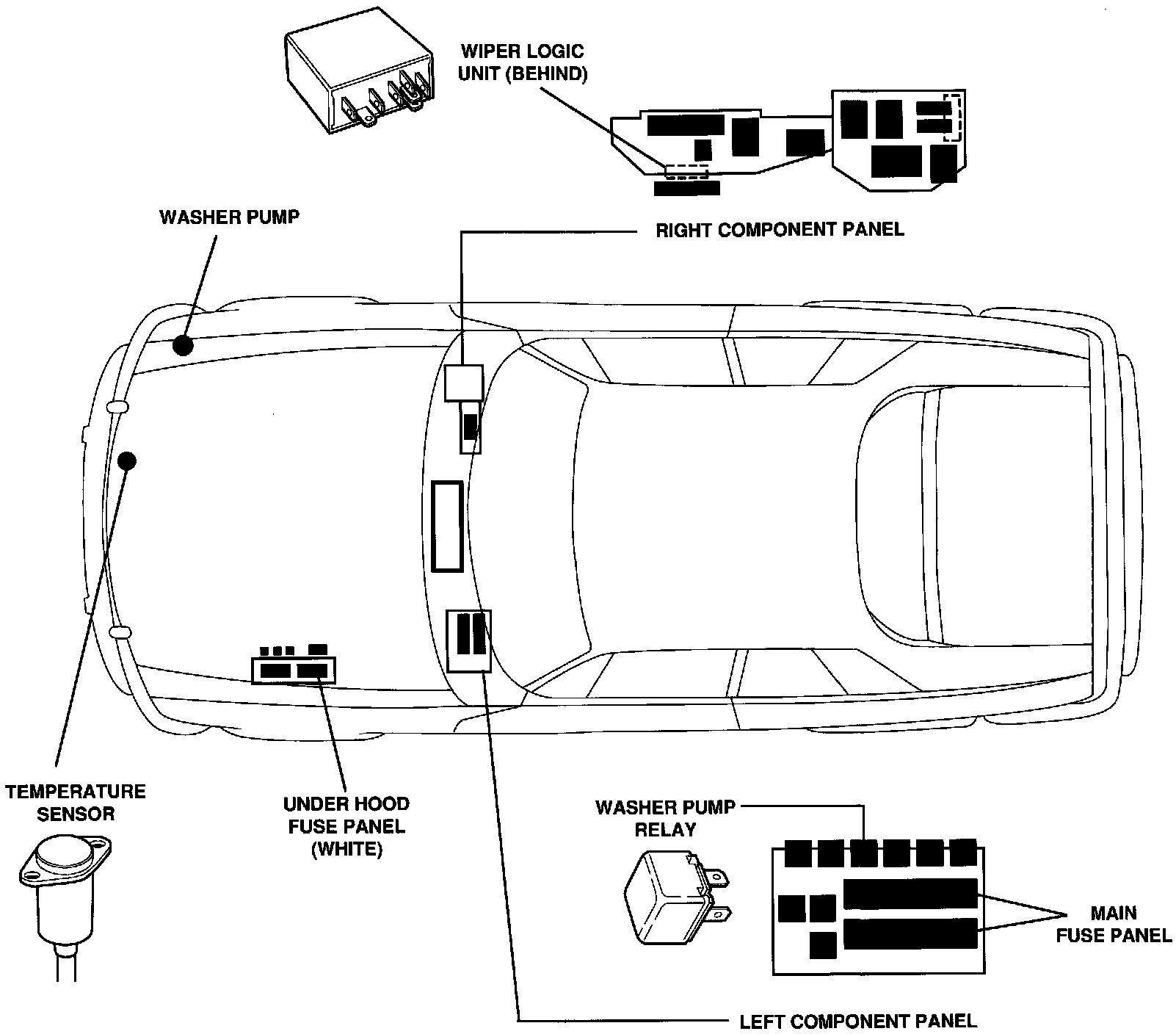

Windshield Wipers & Washers:
Component Locations
