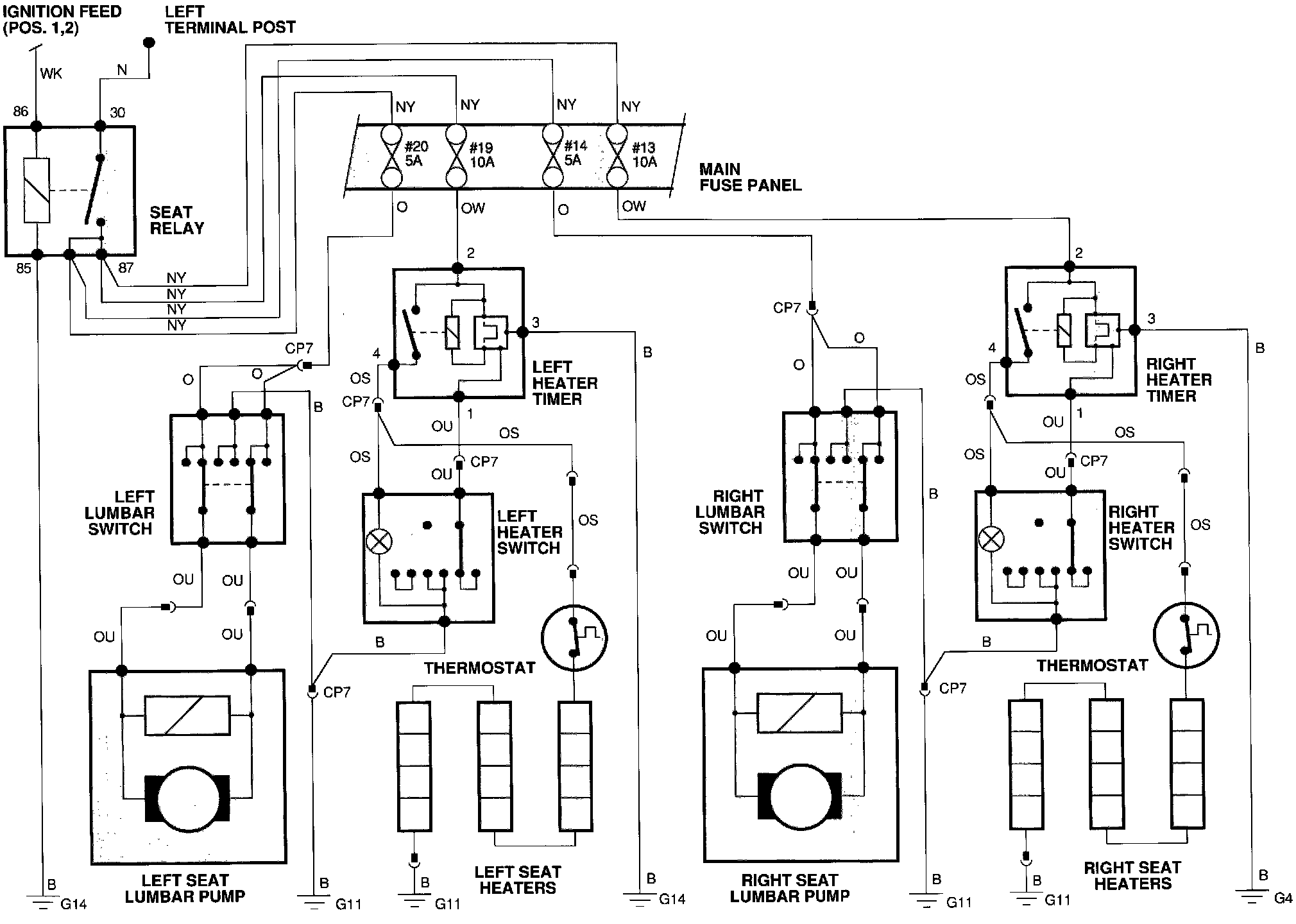

Heated Seats; Power Lumbar Support:
Wiring Diagram

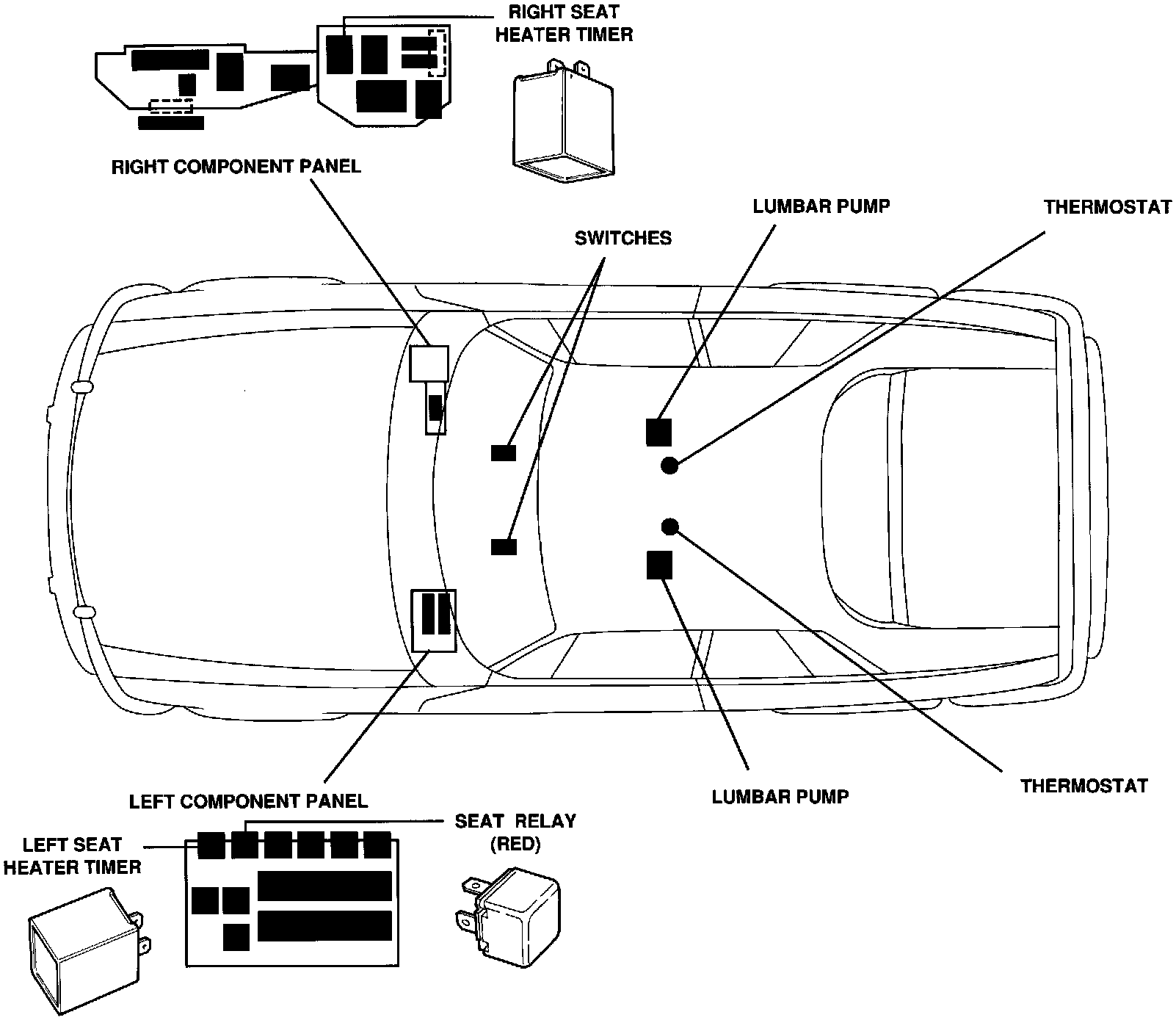

Heated Seats; Power Lumbar Support:
Component Locations
