Marker Lamp
Marker Lamp

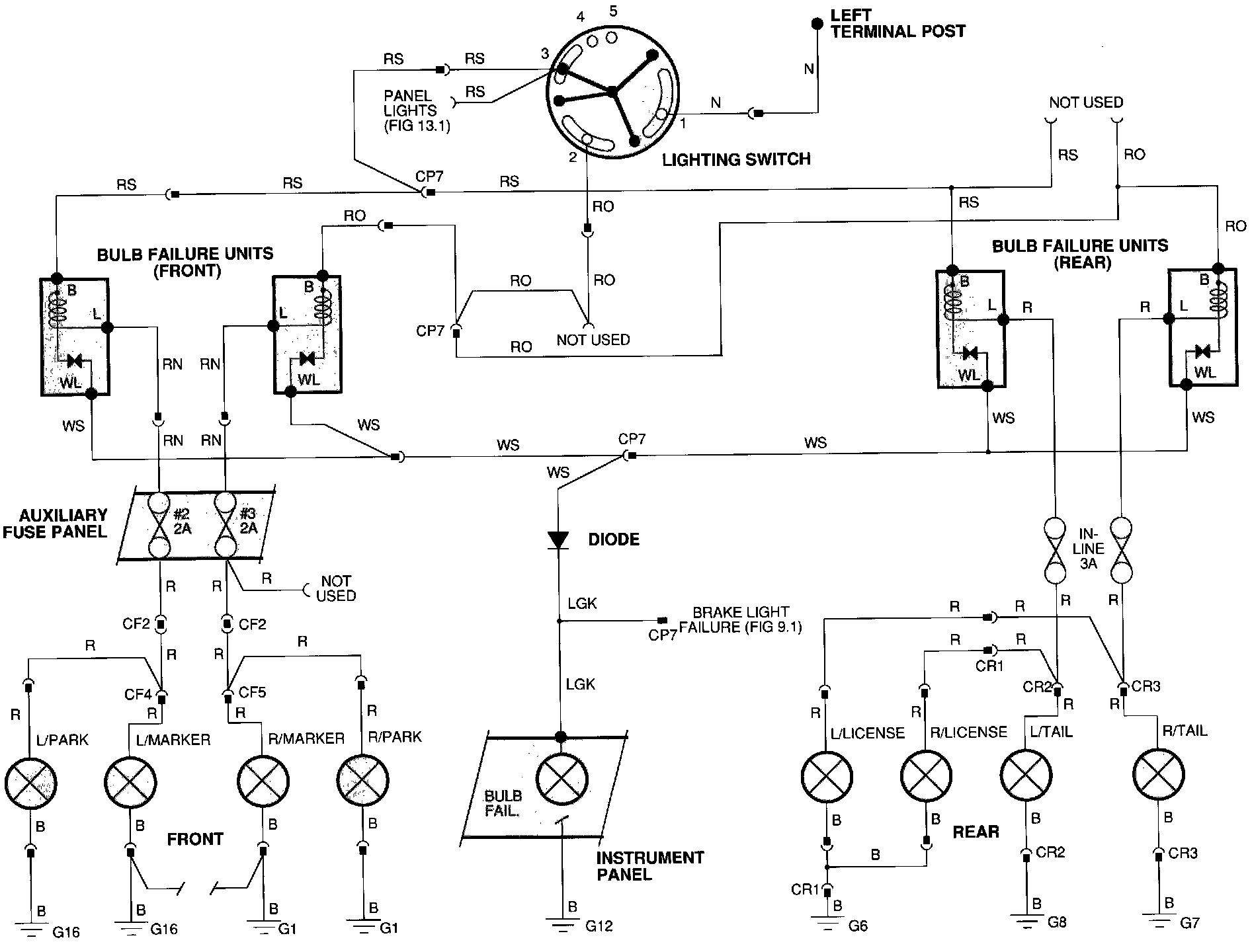

Parking Lights; Marker Lights:
Wiring Diagram

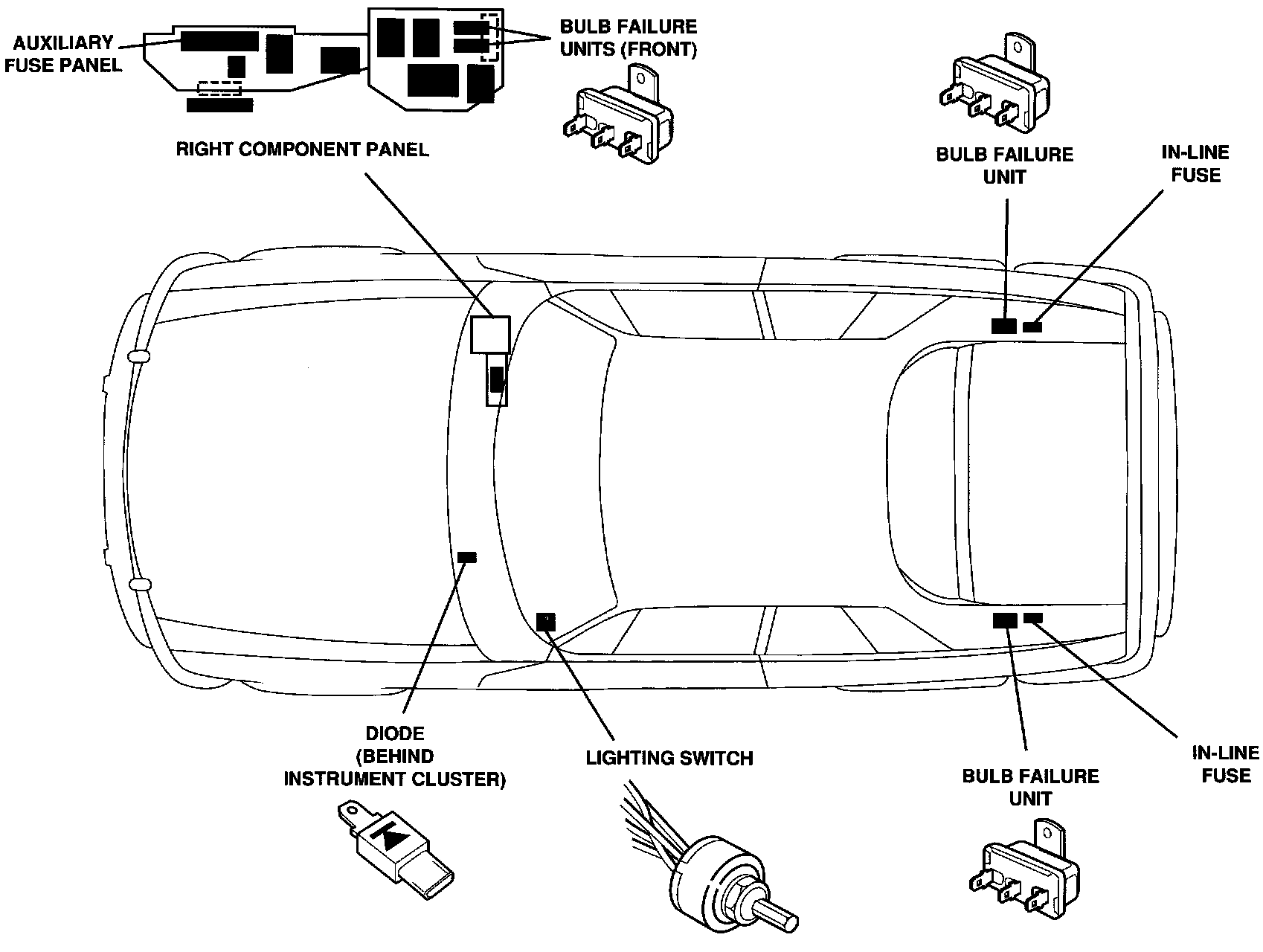

Parking Lights; Marker Lights:
Component Locations
