Heated Glass Element
Heated Glass Element

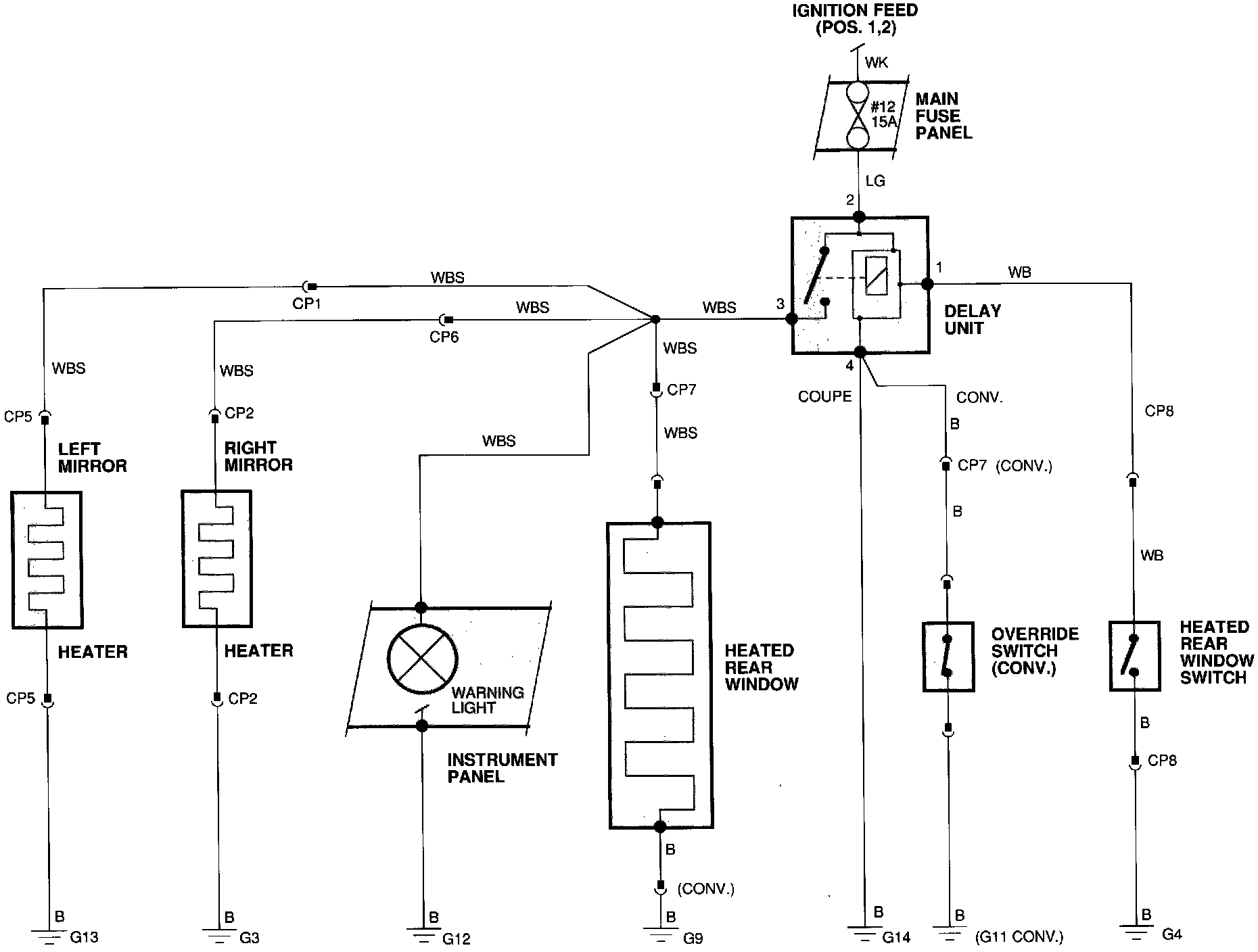

Heated Rear Window; Heated Mirrors:
Wiring Diagram

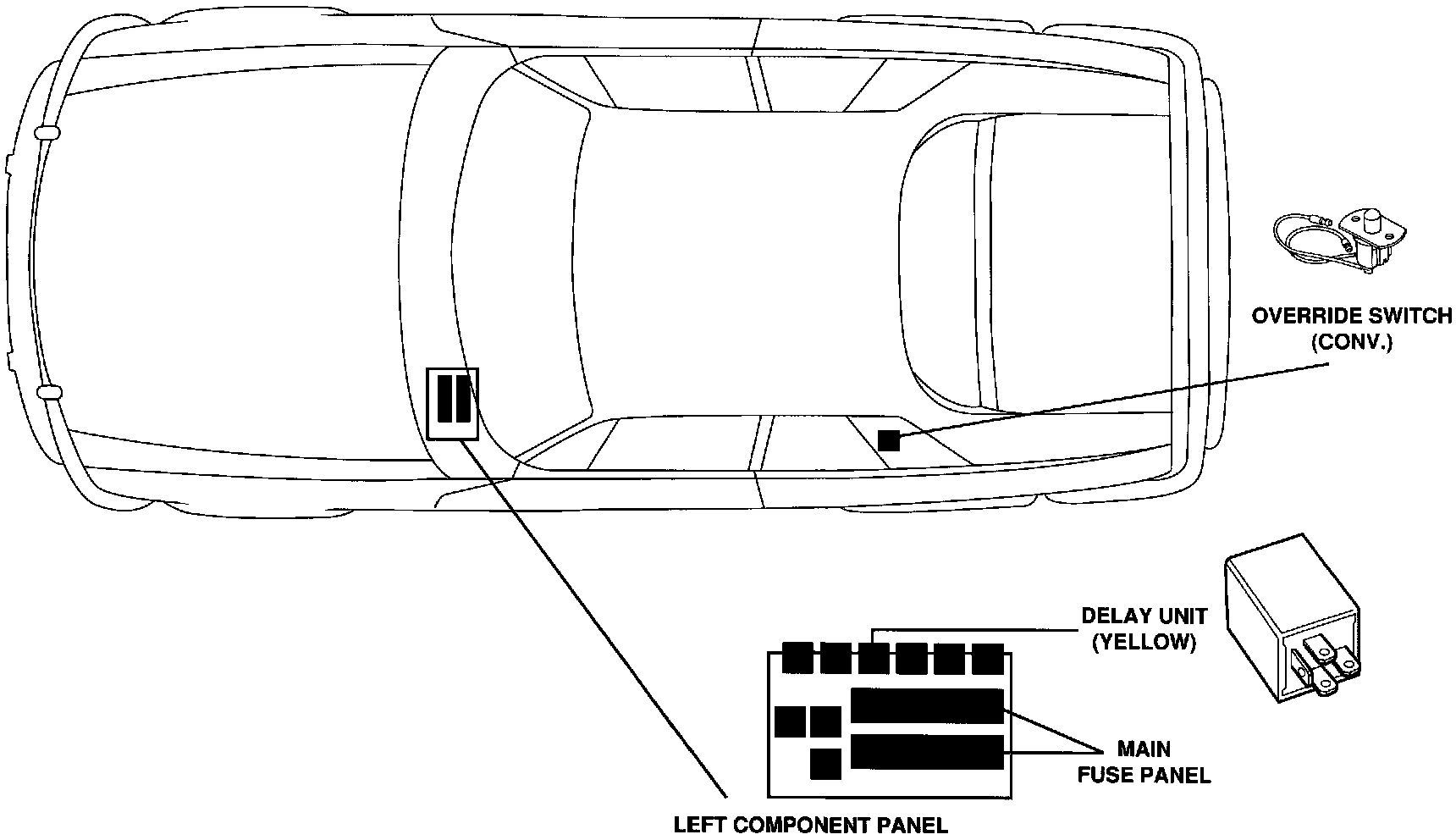

Heated Rear Window; Heated Mirrors:
Component Locations
