Fig. 12.1
Fig. 12.1

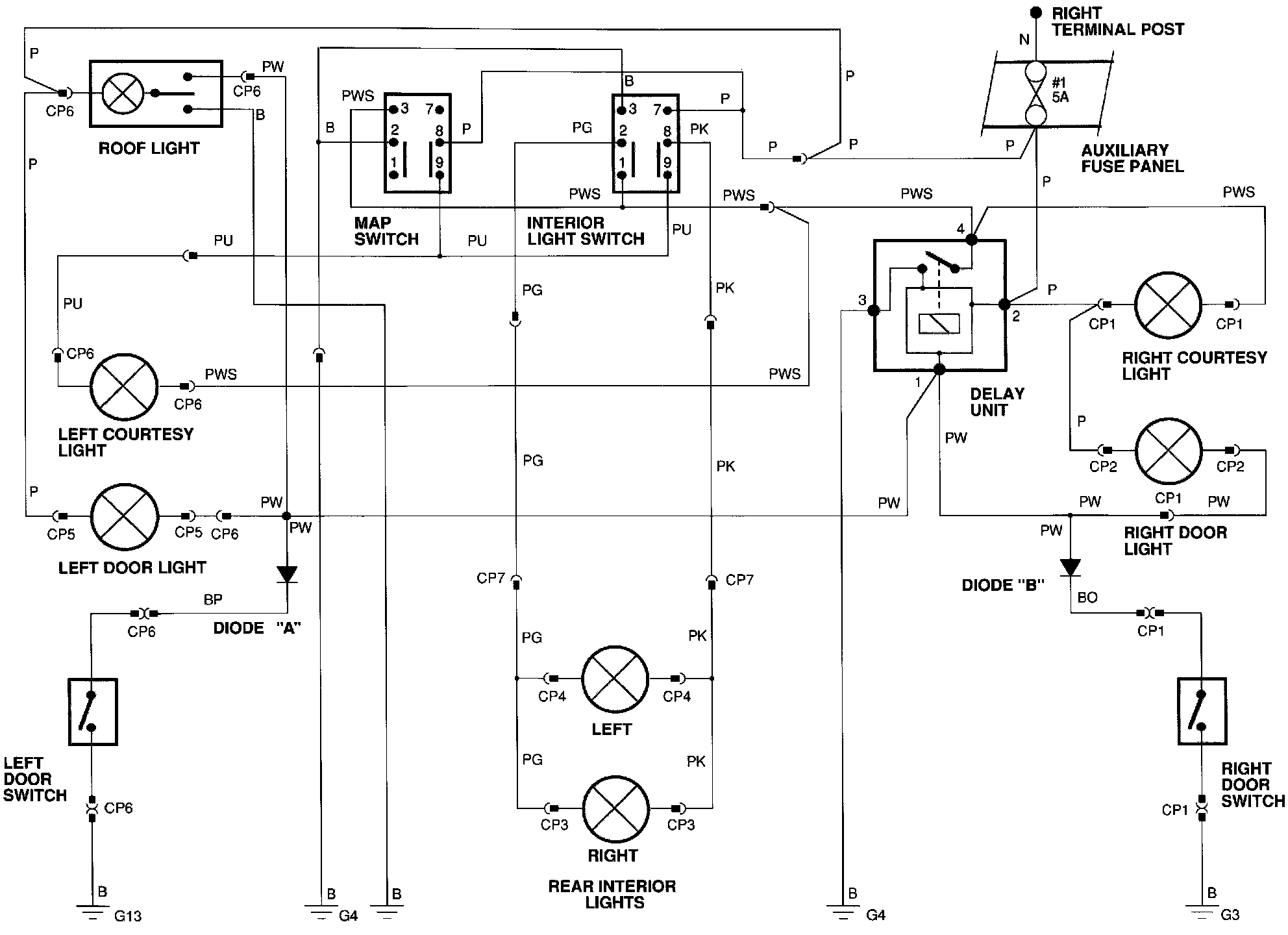

Interior Lighting (Conv):
Wiring Diagram
Interior Lighting (Conv):
Component Locations
