Steering Wheel

- Open the doors.
- Centralize the road wheels and remove the ignition key.
- Remove the pad from the centre of the steering wheel.

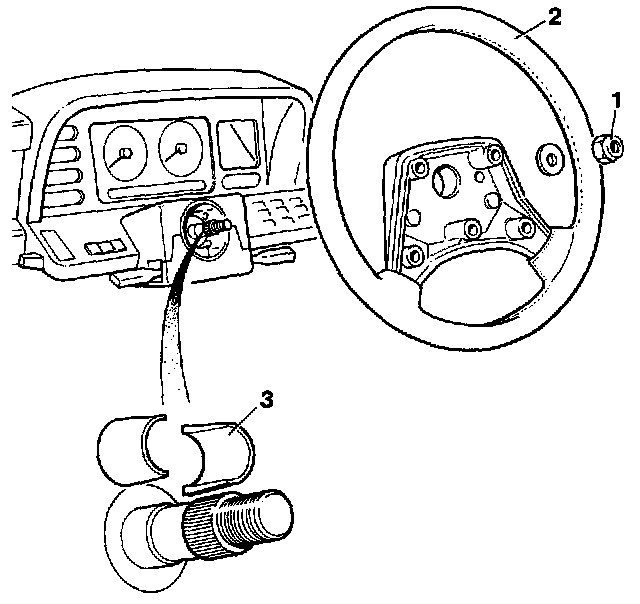

- Slacken the nut (1) securing the wheel to the shaft, do not fully remove.
- Pull steering wheel (2) to release from the shaft, remove the securing nut and steering wheel.
- Remove the connecting boss securing screws and remove the boss.
- Remove the split collars (3) from the steering column.
- Apply grease to the split collars and fit to the steering shaft.
- Ensuring that the steering wheel is in the straight ahead position fit to the shaft.
- Fit and tighten the securing nut.
- Refit the steering wheel pad.
- Close the door.

TORQUE FIGURES
- Steering wheel to steering shaft 35-45 Nm

SPANNER SIZES
- 24mm

OILS/GREASES
- Split collars to shaft Castrol LM Grease.
