Home
>>
Jaguar
>>
1989
>>
XJ-S V12-5.3L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

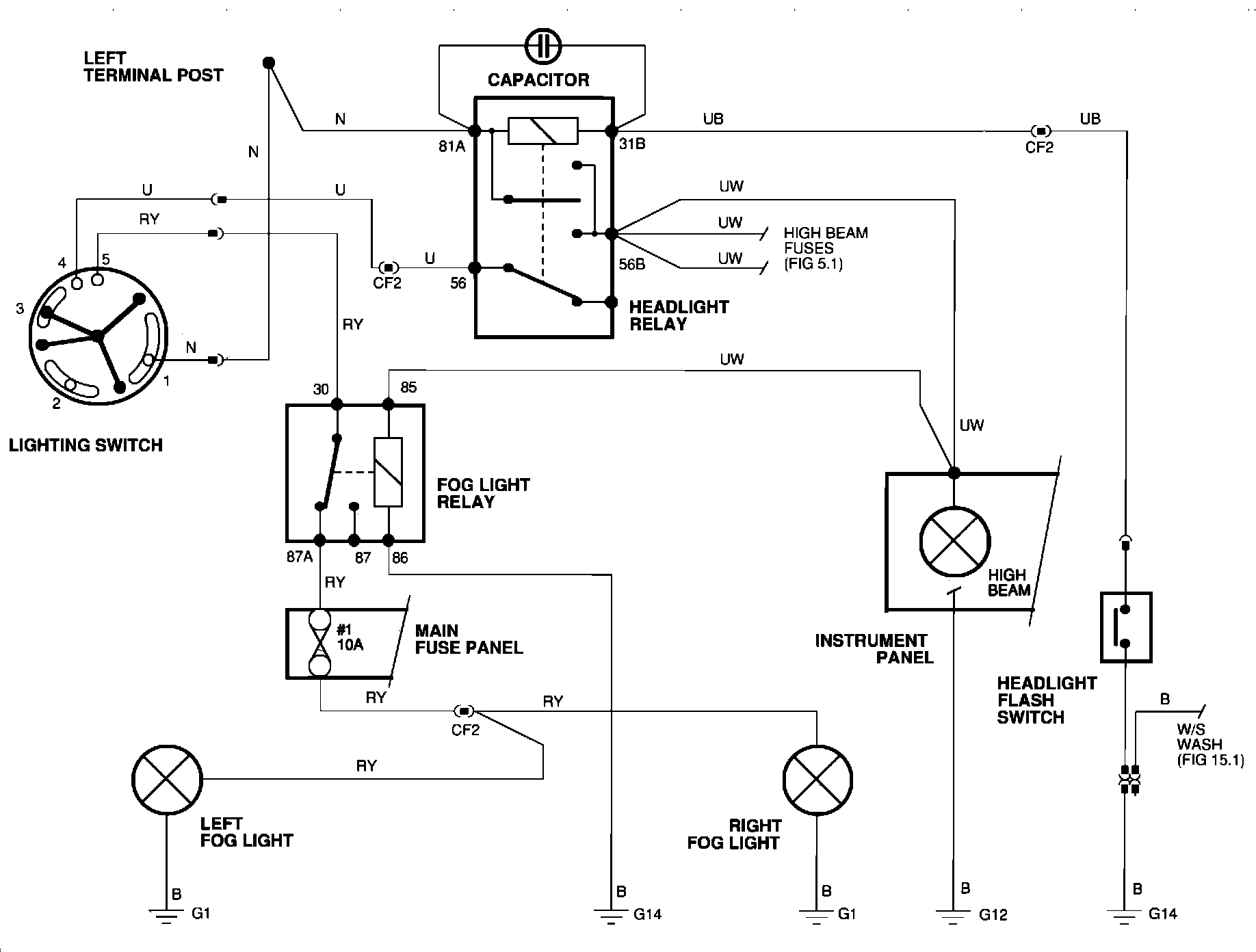

Fog Lights (FIG 6.1):
