Home
>>
Jaguar
>>
1989
>>
XJ-S V12-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems

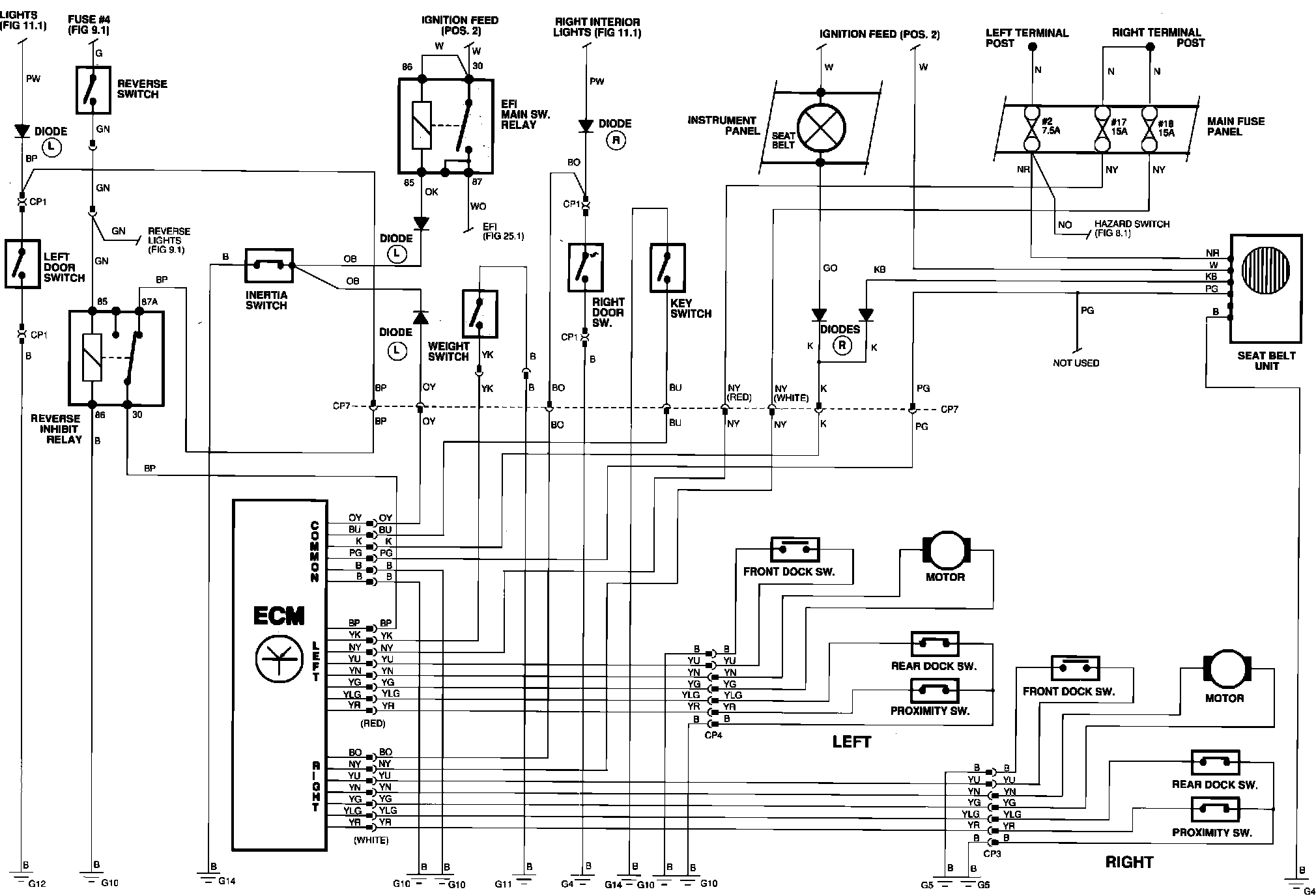

Passive Restraint Seat Belts (FIG 24.1):
