Jaguar
>>
1989
>>
XJ-S V12-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Convertible Top
Convertible Top

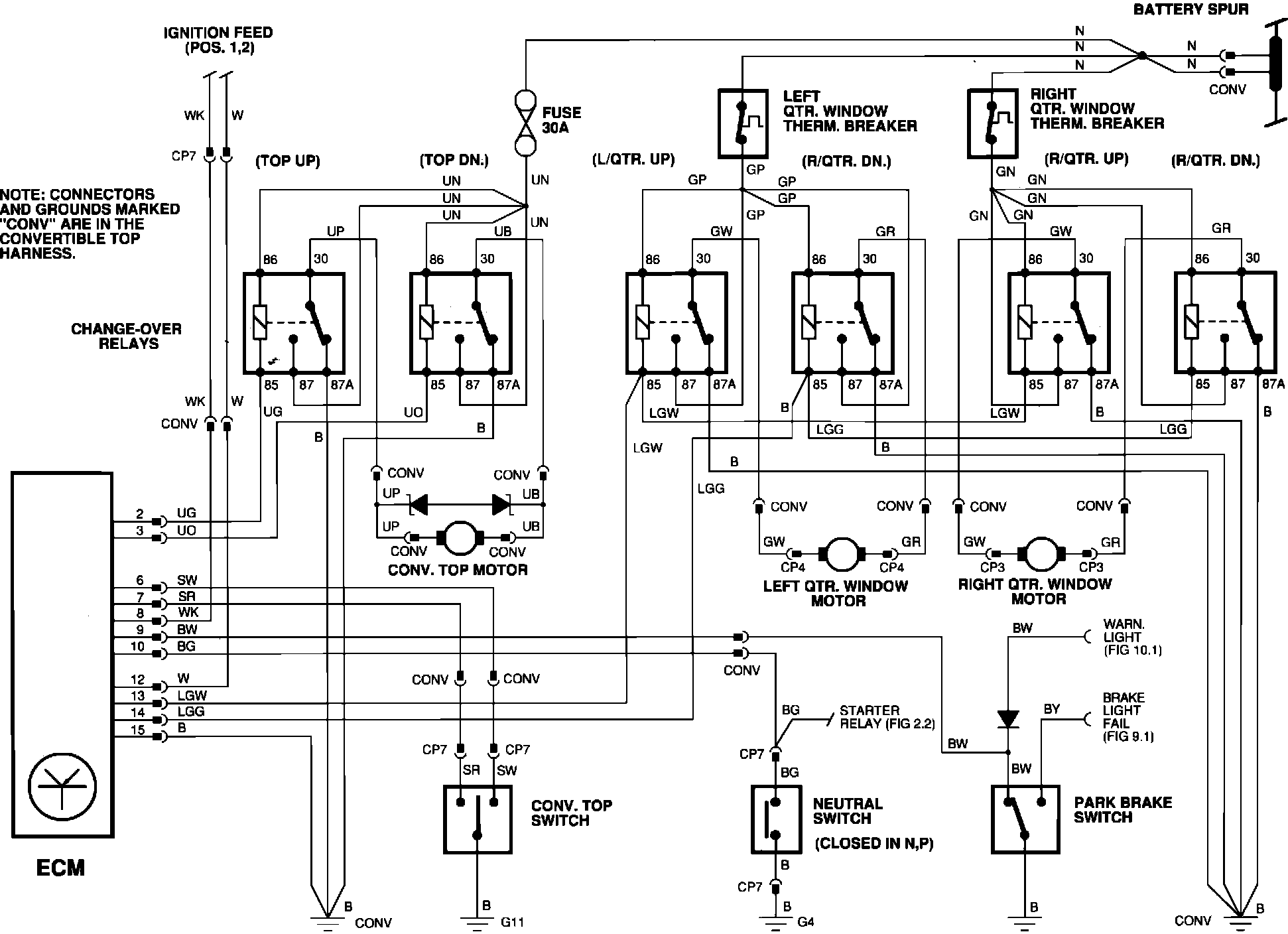

Convertible Top (FIG 28.1):
